>>G<< Synchronizer Sleeve Installation

  1. Check the installation direction of the synchronizer sleeve, and install it onto the 3rd-4th speed synchronizer hub.

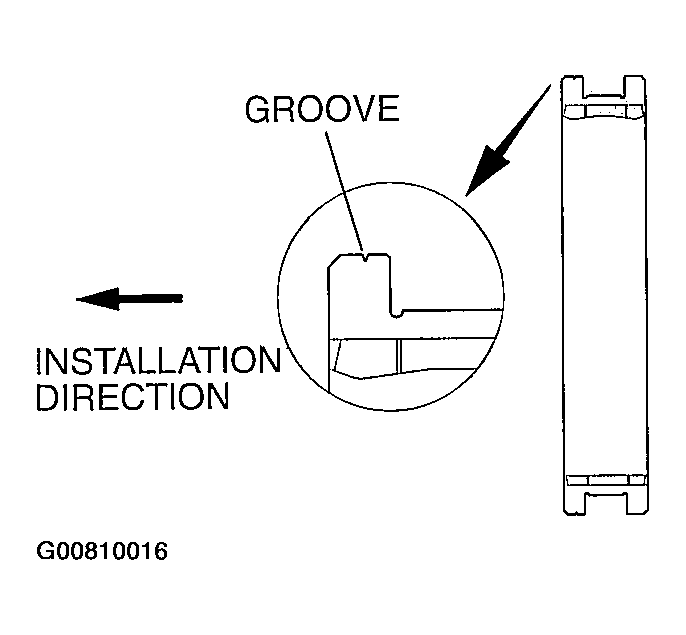

    Fig 1: Checking Installation Direction Of Synchronizer Sleeve
    G00810016Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the synchronizer sleeve so that the areas with teeth that have raised tips (three areas total) are aligned with the areas on the synchronizer hub that have deep grooves between the teeth (three areas total).

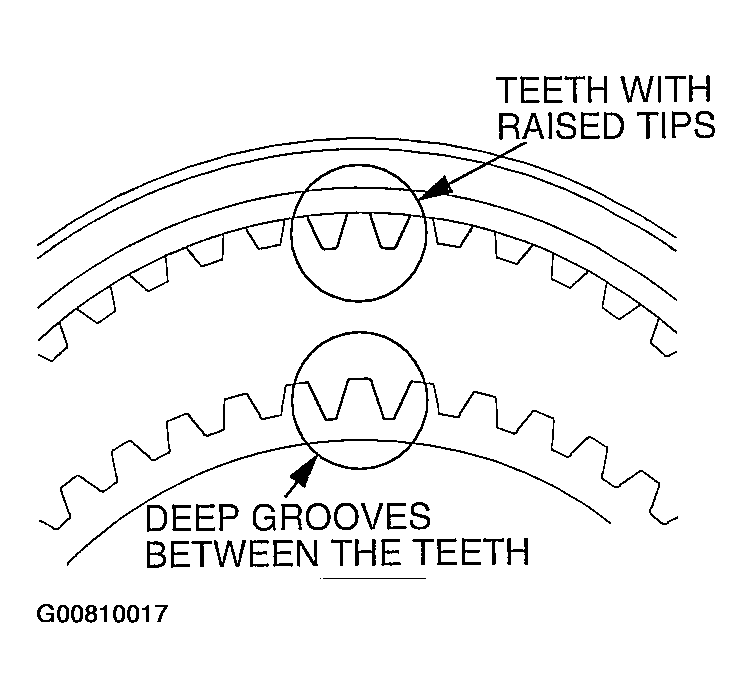

    Fig 2: Aligning Areas With Teeth Have Raised Tips With Areas On Synchronizer Hub Deep Grooves Between Teeth
    G00810017Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
