Disassembly And Assembly: Notes

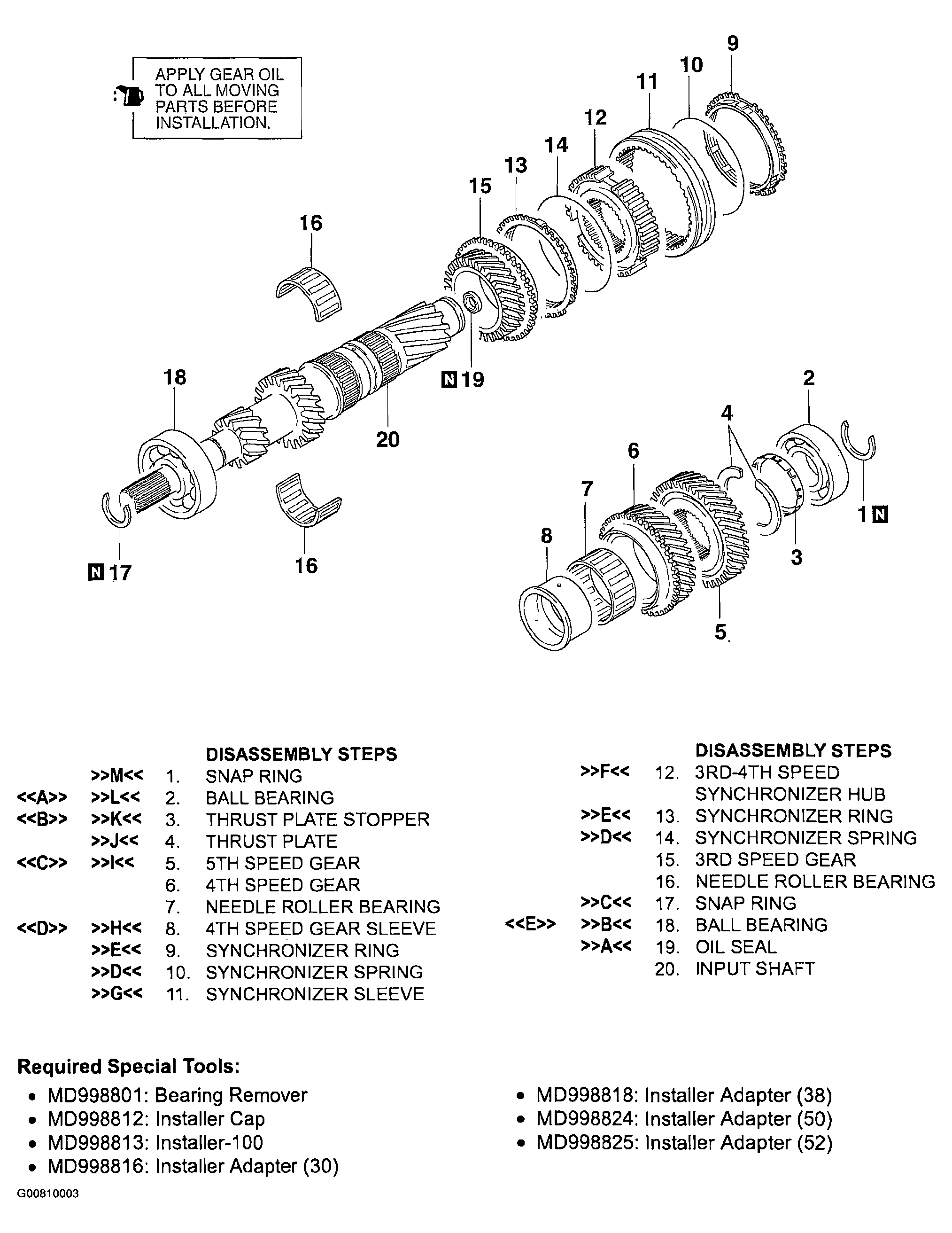

Fig 1: Disassembling And Assembling Input Shaft

G00810003

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
