>>D<< Synchronizer Spring Installation

Install the synchronizer spring onto the outer synchronizer ring as shown.

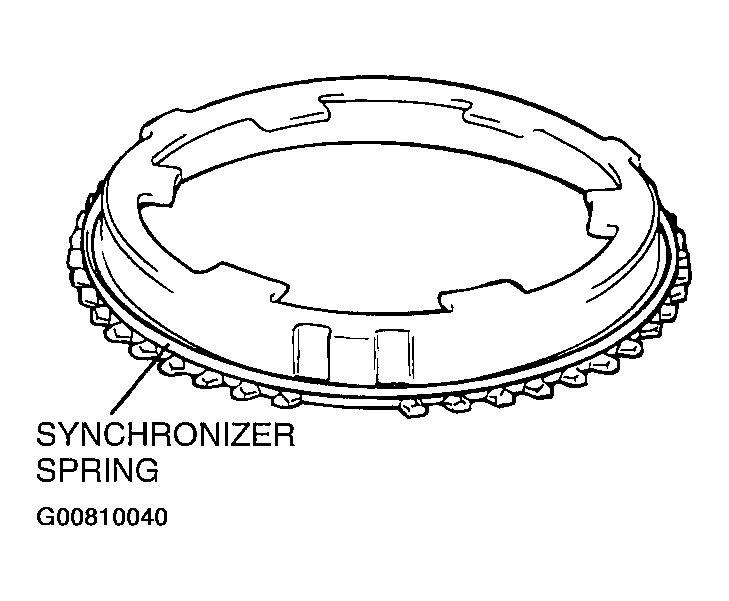

Fig 1: Installing Synchronizer Spring Onto Outer Synchronizer Ring
G00810040Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
