>>E<< 1ST-2ND Speed Synchronizer Hub Installation

  1. Set the output shaft on the press support stand.
  2. Check that the 1st-2nd speed synchronizer hub is in the correct installation direction, and put it on the output shaft.
  3. Using special tools MD998812, MD998814 and MD998825, install the 1st-2nd speed synchronizer hub with the press.
  4. Make sure that the outer synchronizer ring on the 1st speed gear side can rotate freely.

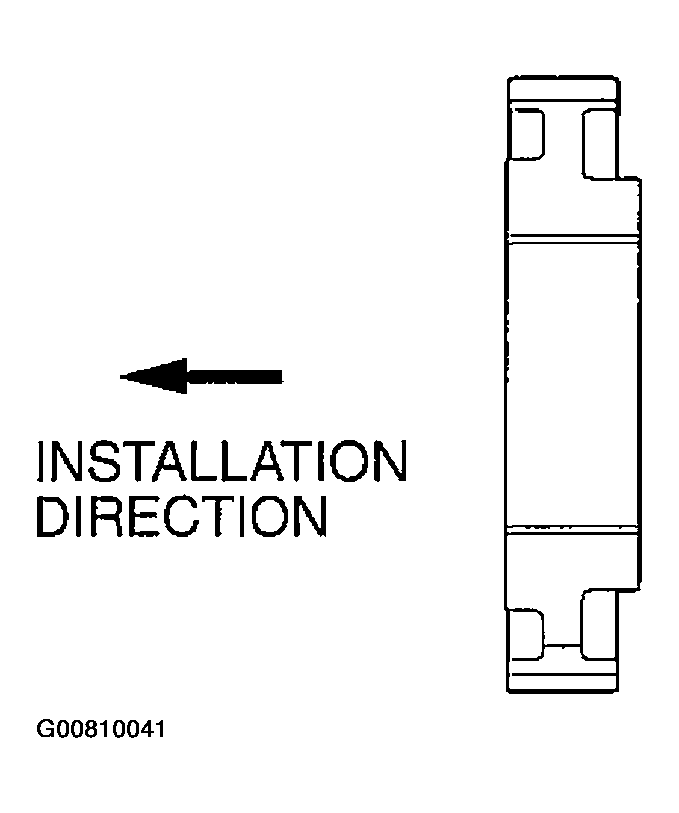

    Fig 1: Installing 1ST-2ND SPEED SYNCHRONIZER HUB
    G00810041Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

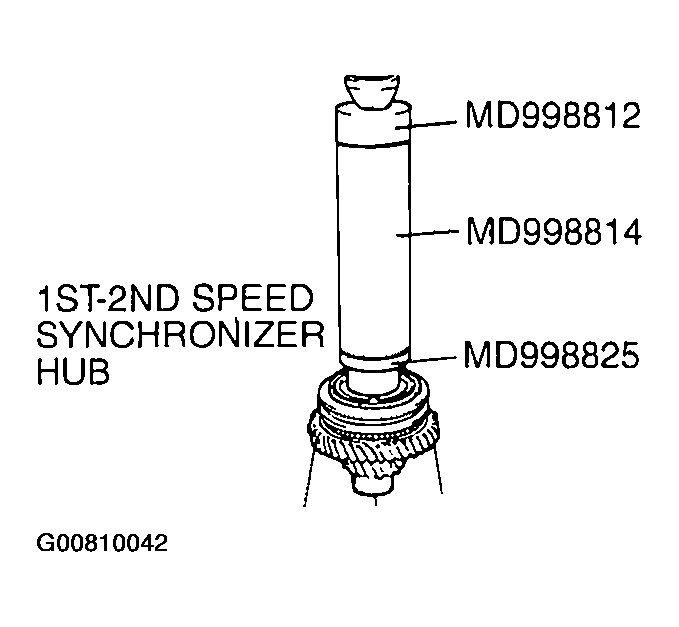

    Fig 2: Installing 1St-2Nd Speed Synchronizer Hub With Press
    G00810042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
