>>L<< Synchronizer Spring Installation

Install the synchronizer spring onto the synchronizer ring as shown.

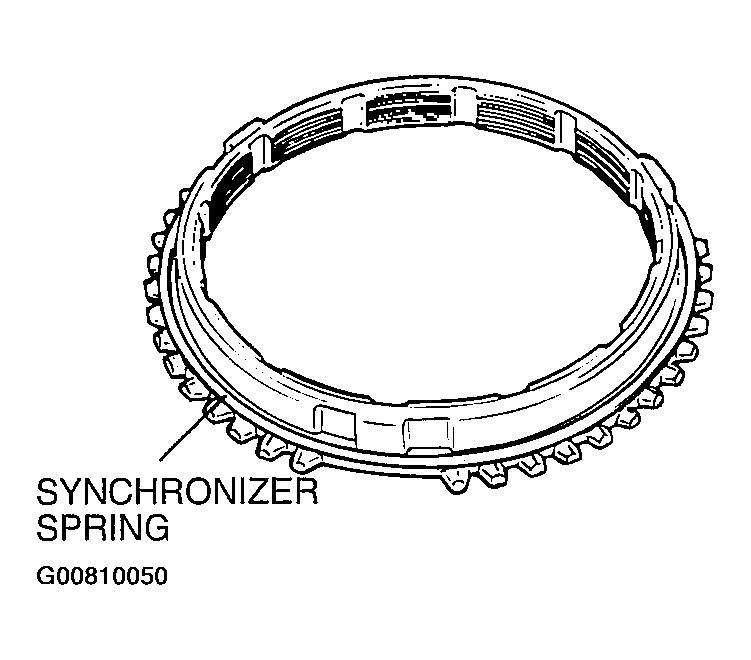

Fig 1: Installing Synchronizer Spring Onto Synchronizer Ring
G00810050Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
