>>B<< Snap Ring Installation: Notes

1. Install the thickest snap ring that can be fitted in the groove of output shaft.
2. Make sure that the roller bearing inner race end play meets the standard value.
   1. Standard value: 0 - 0.12 mm (0 - 0.0047 inch)

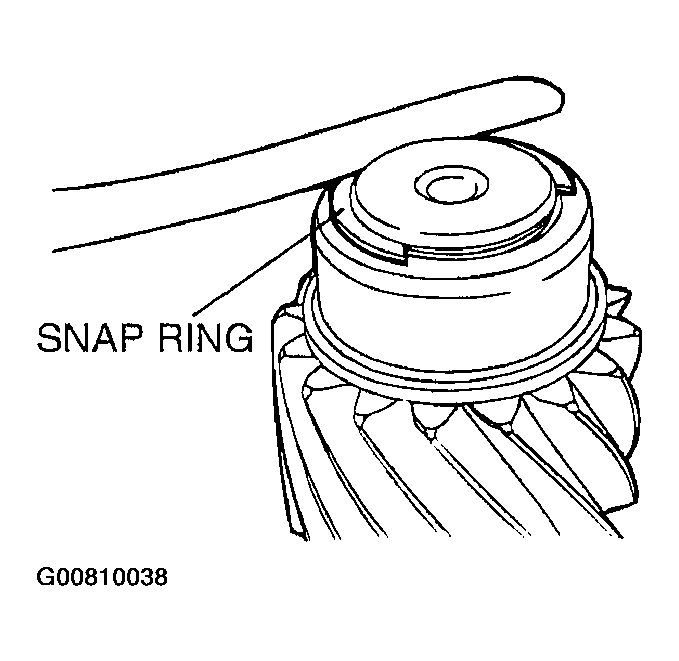

   Fig 1: Installing Snap Ring

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
