<< C >> 5TH Speed-Reverse Synchronizer Hub Removal

  1. Using special tool MD998801, support the 4th speed gear, and then set them on the press.
  2. Push down on the output shaft with the press and remove the 5th speed-reverse synchronizer hub.

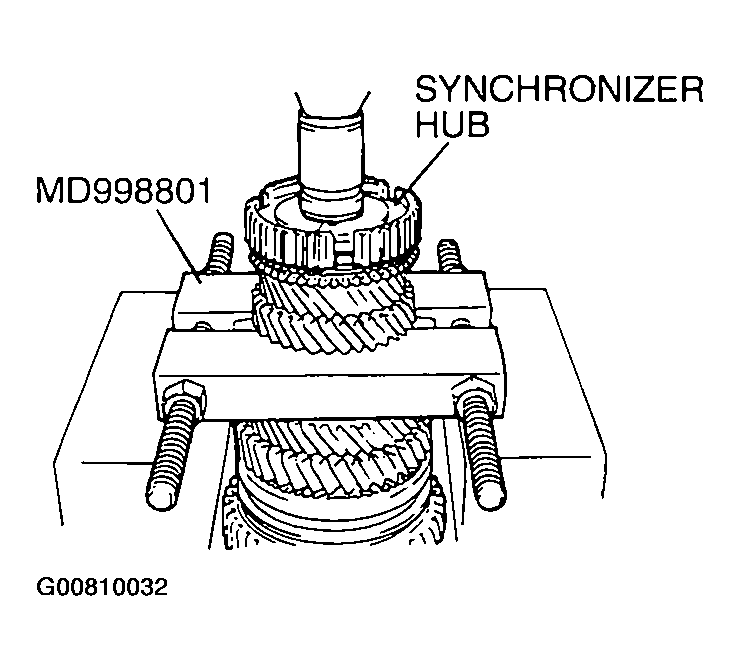

    Fig 1: Supporting 4Th Speed Gear Using Special Tool Md998801
    G00810032Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
