>>A<< Dust Cover And Select Lever Bushing Installation

Make sure the dust cover and select lever bushing installation direction is correct, and the distinguished parts are correctly assembled as shown.

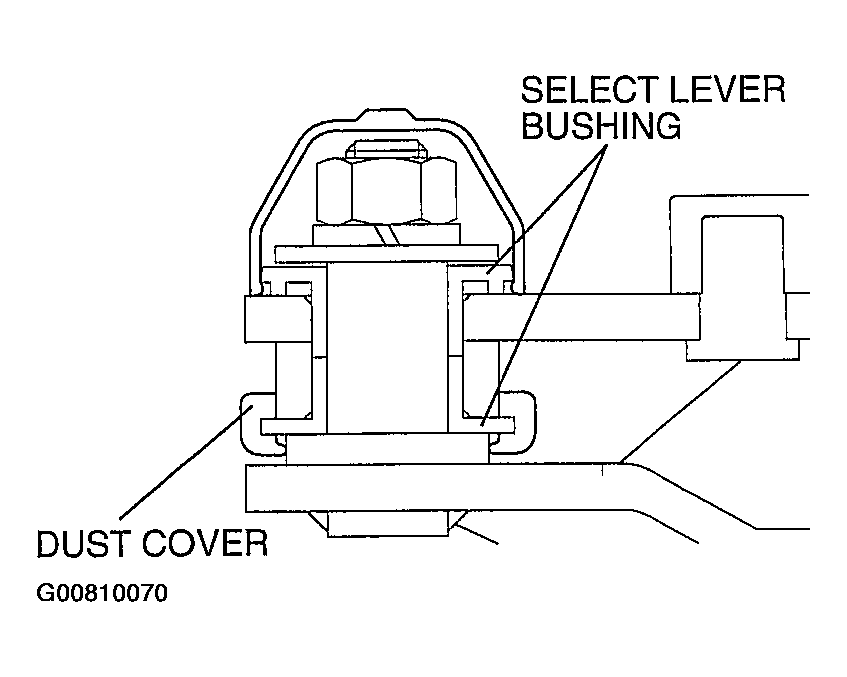

Fig 1: Installing Dust Cover And Select Lever Bushing
G00810070Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
