>>A<< Output Shaft/Input Shaft Installation

Install the input and output shafts together.

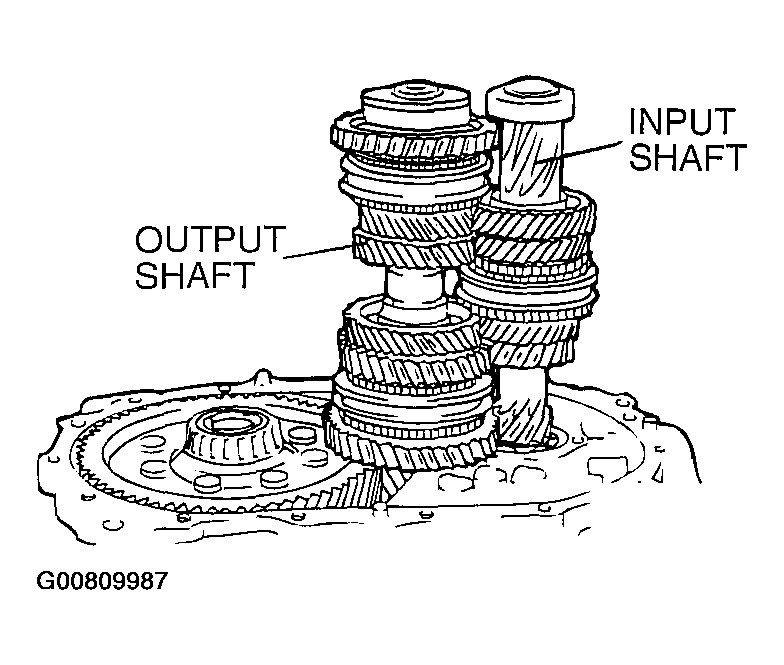

Fig 1: Installing Input And Output Shafts Together
G00809987Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
