>>F<< Sealing Cap Installation

  1. Using special tools MB990927 and MB990938, press install the sealing cap onto the case.

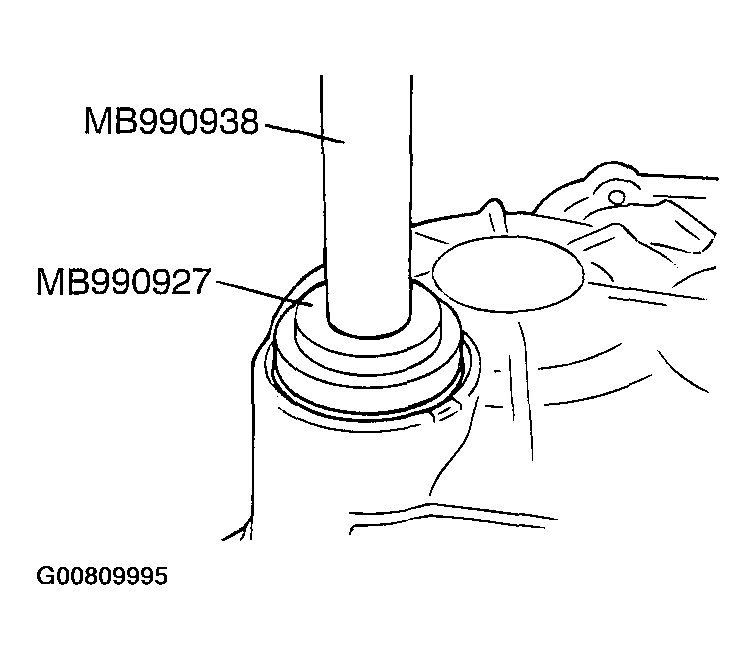

    Fig 1: Installing Sealing Cap Onto Case Using Special Tools Mb990927 And Mb990938
    G00809995Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Evenly press the sealing cap so it is fully seated and not at an angle.

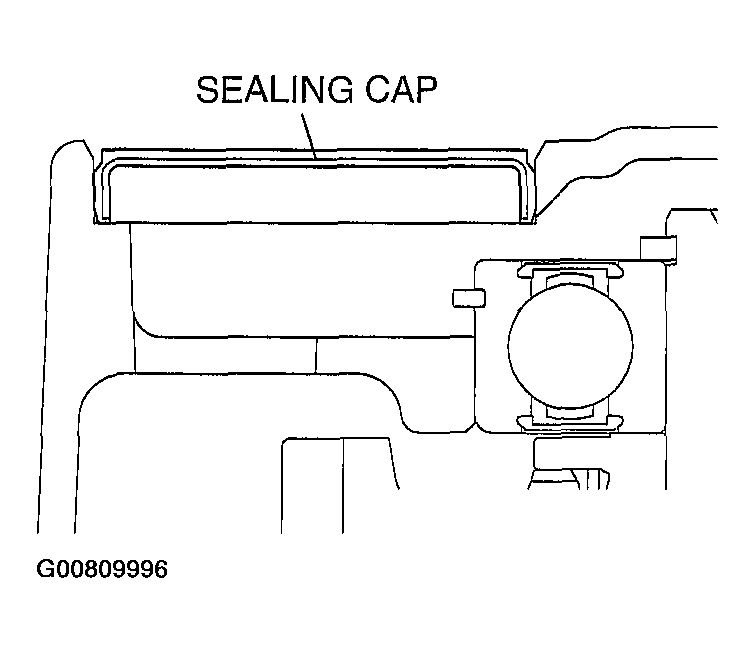

    Fig 2: Pressing Sealing Cap
    G00809996Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
