>>H<< Control Housing Installation

CAUTION: Squeeze sealant onto the case. Do not leave gaps or excess amounts, otherwise oil leaks are likely.
  1. Apply a 0.2 mm (0.08 inch) diameter bead of sealant (Mitsubishi Genuine Part number MD997740 or equivalent) as illustrated onto the control housing.
    NOTE: Be sure to install the housing to the case quickly while the sealant is still wet (within 15 minutes).

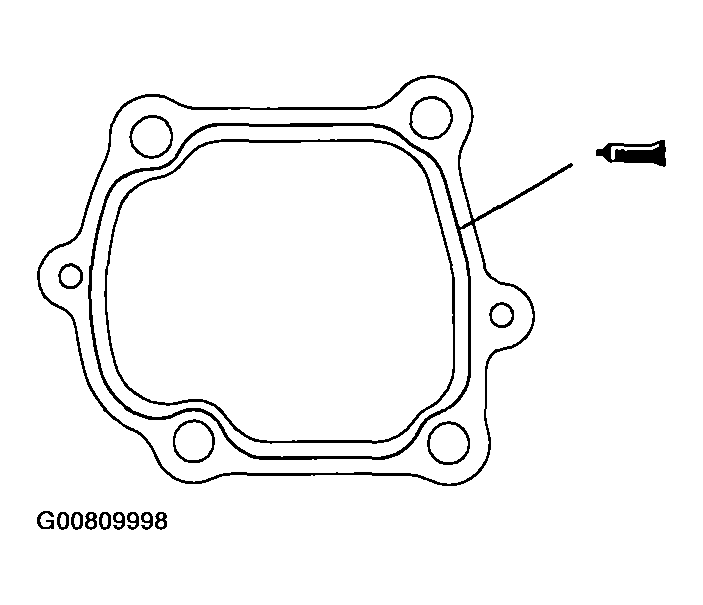

    Fig 1: Applying Bead Of Sealant Onto Control Housing
    G00809998Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the control housing to the transaxle case and tighten the bolts to specified torque.
    1. Tightening torque:19 +/- 3 N.m (14 +/- 2 ft-lb)
    NOTE: After installation, keep the sealed area away from the oil for approximately one hour.
