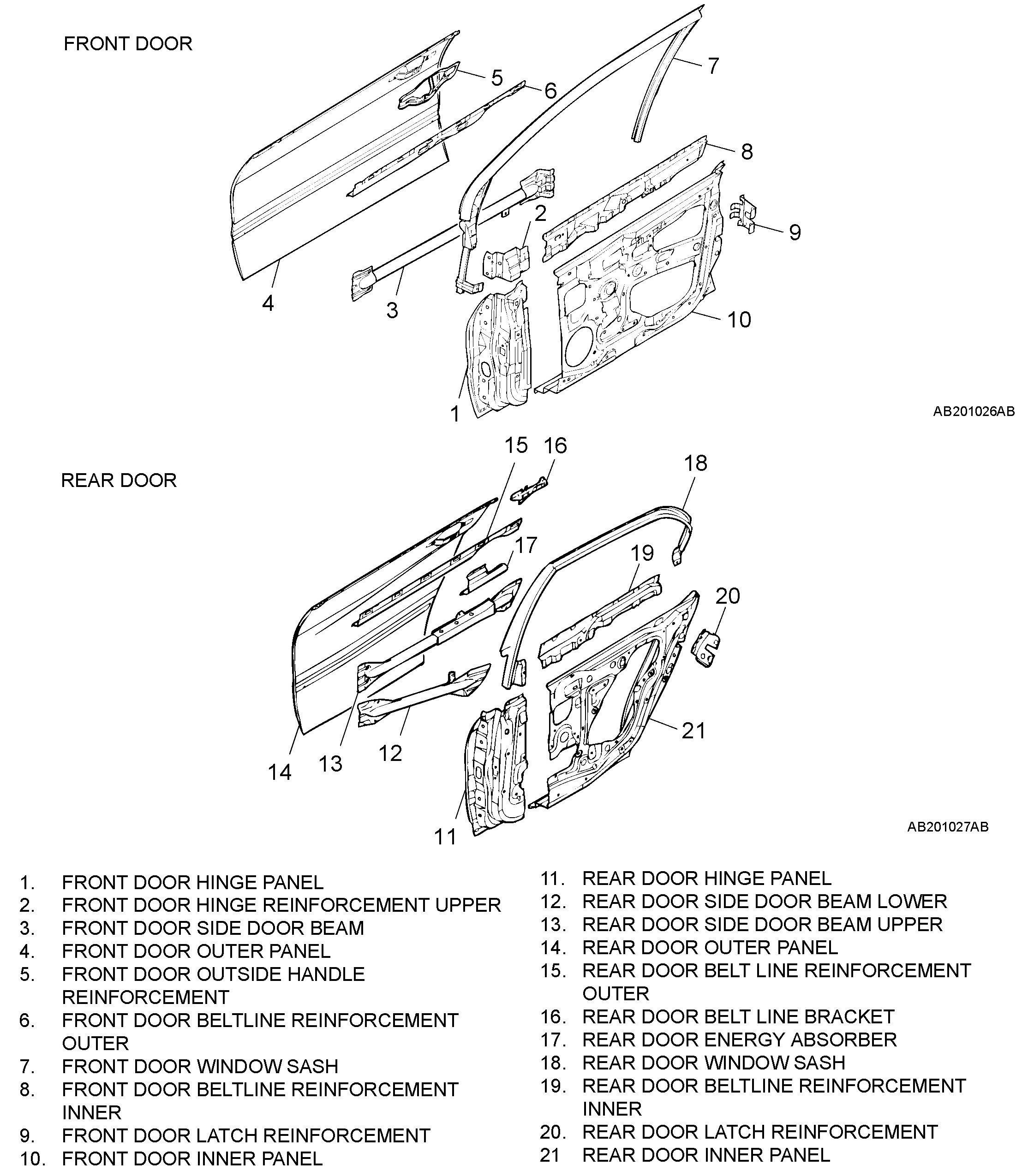

Front Door

DOOR




The front and back of side door beam has been made large to cope with the force from the front and sides during collision.
