Unit Overhaul
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:

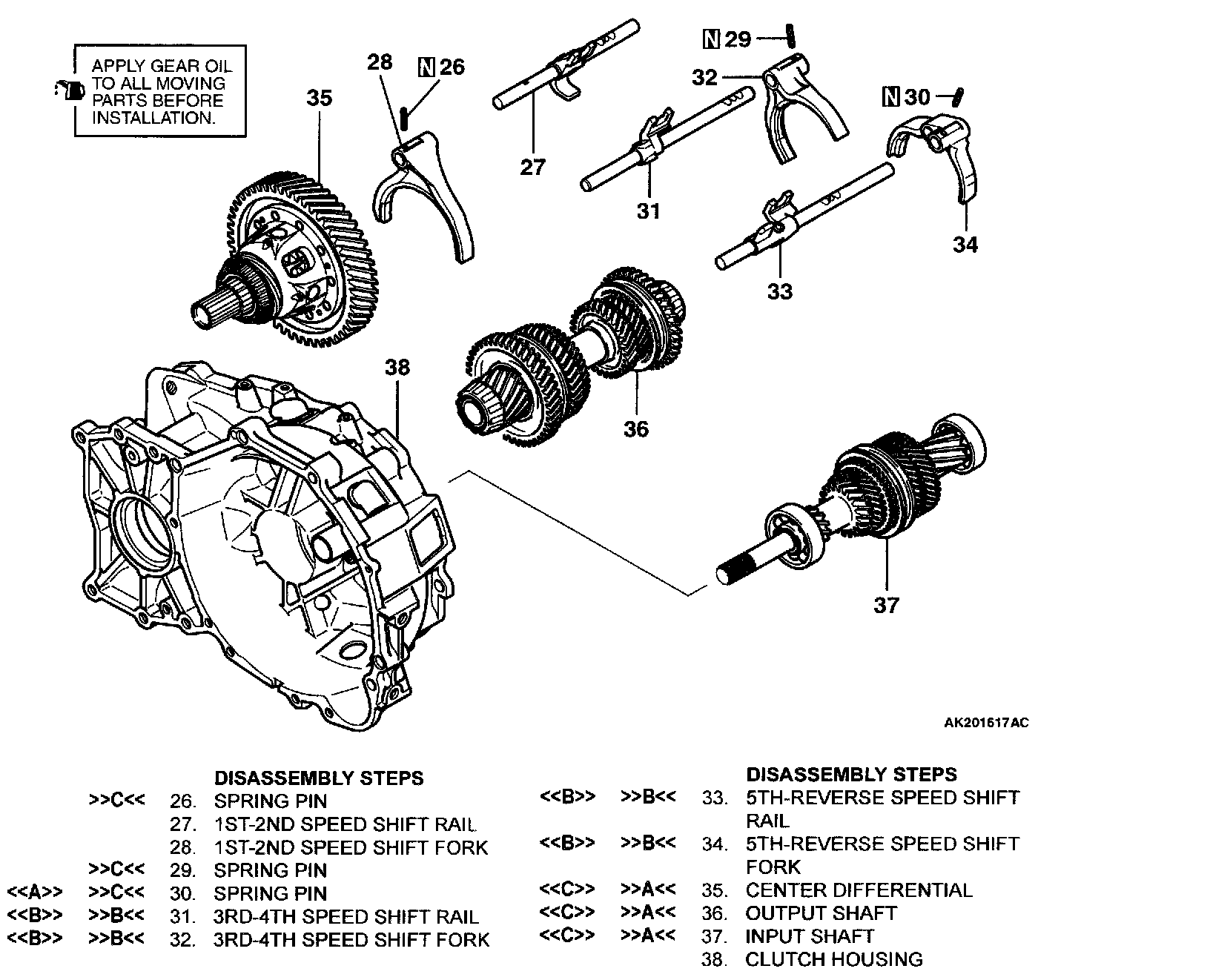

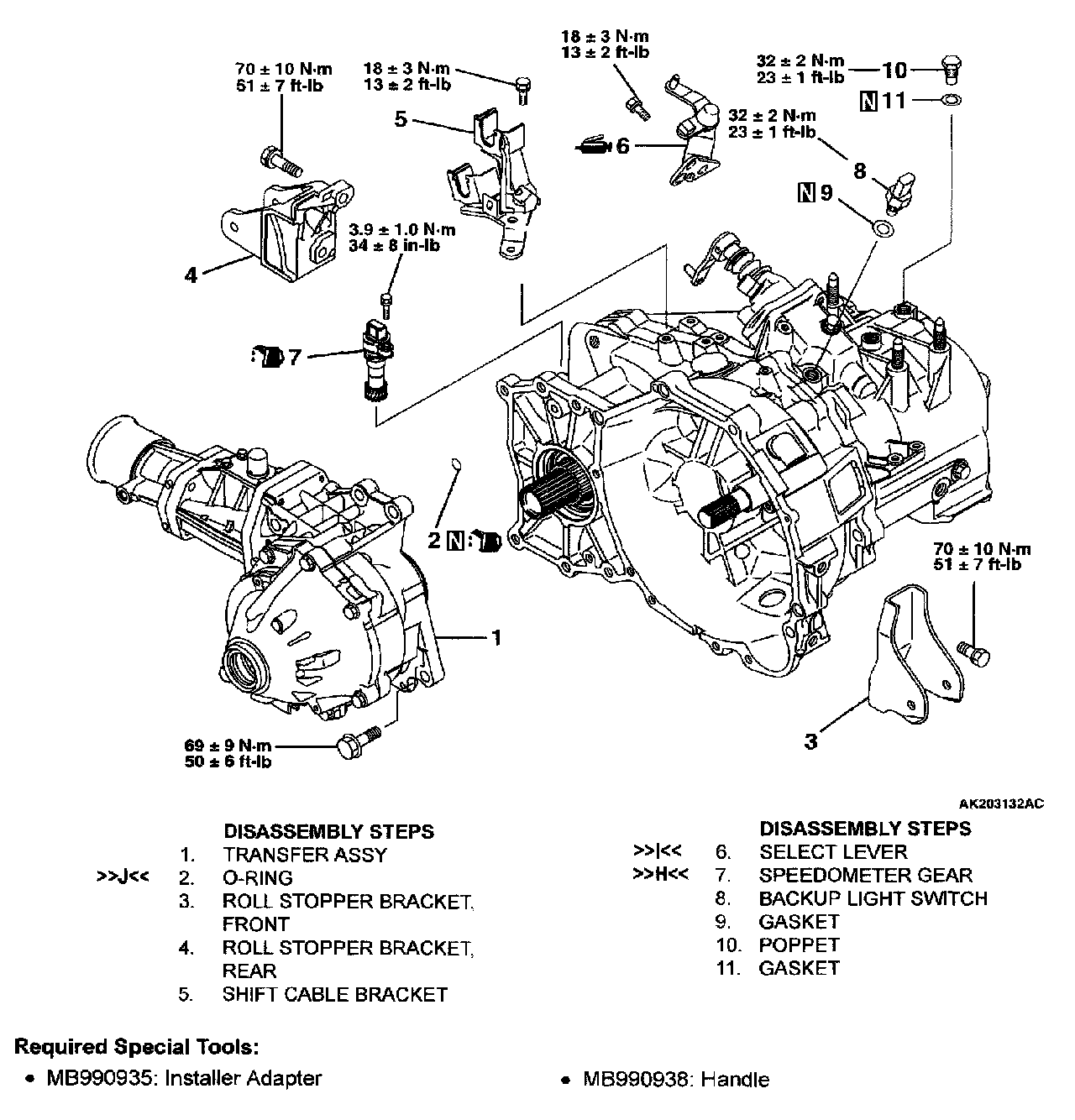

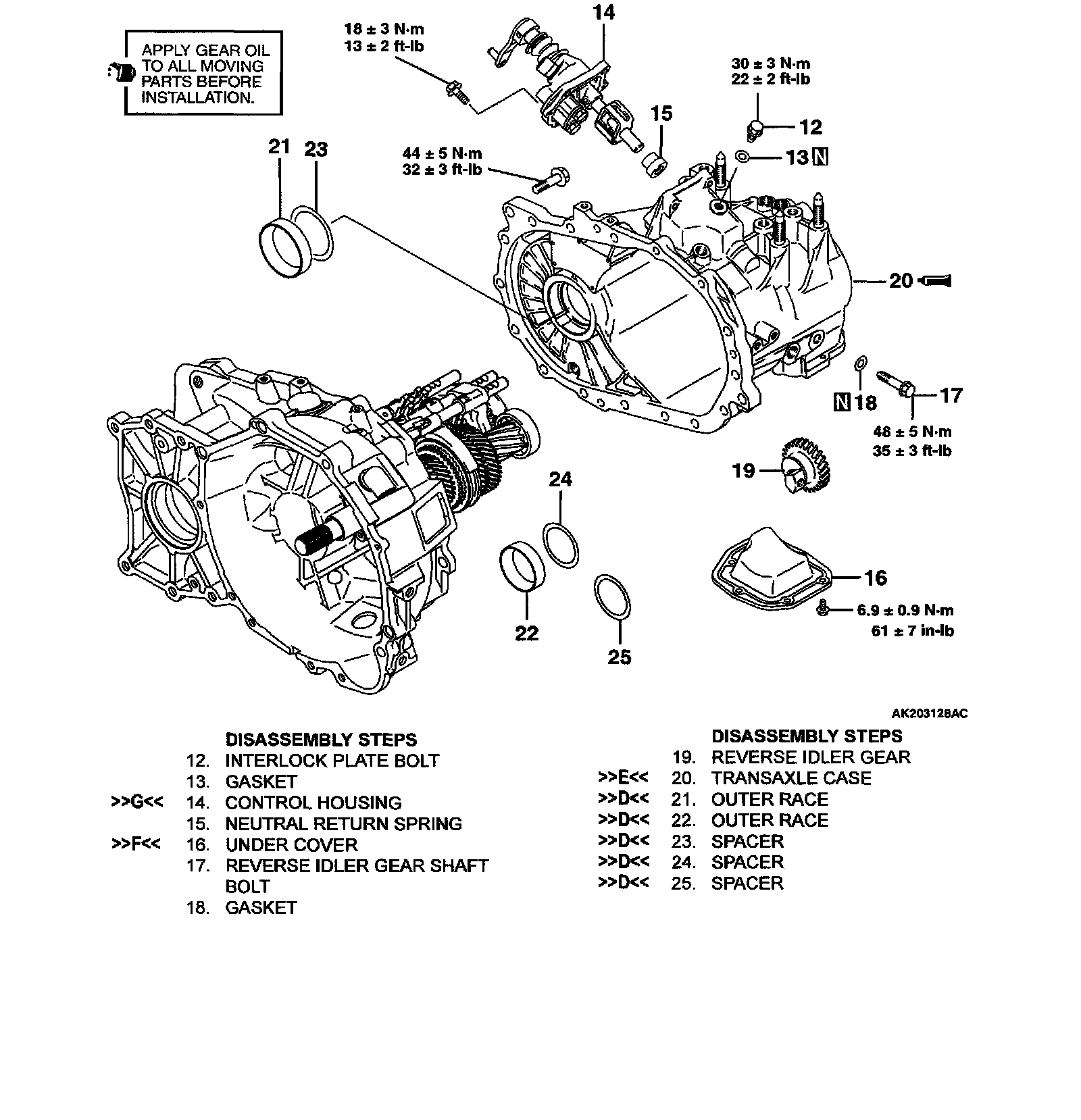

TRANSAXLE (TRANSMISSION) OVERHAUL W/ RELATED COMPONENTS
