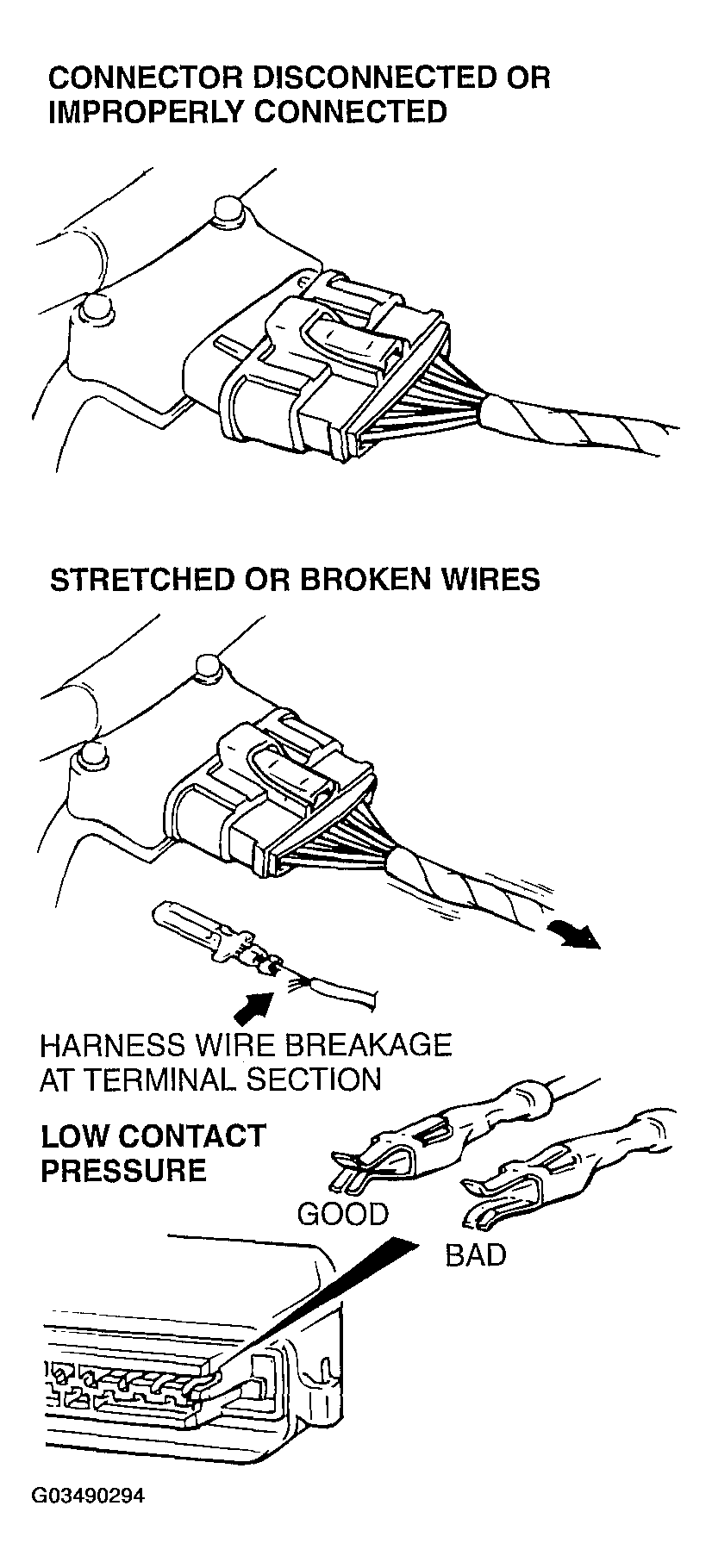

Visual Inspection
- Connector is disconnected or improperly connected
- Connector pins are pulled out.
- Stretched an broken wires at terminal section.
- Low contact pressure between male and female terminals.
- Low connection pressure due to rusted terminals or foreign matter lodged in terminals.
