Disassembly And Assembly: Notes

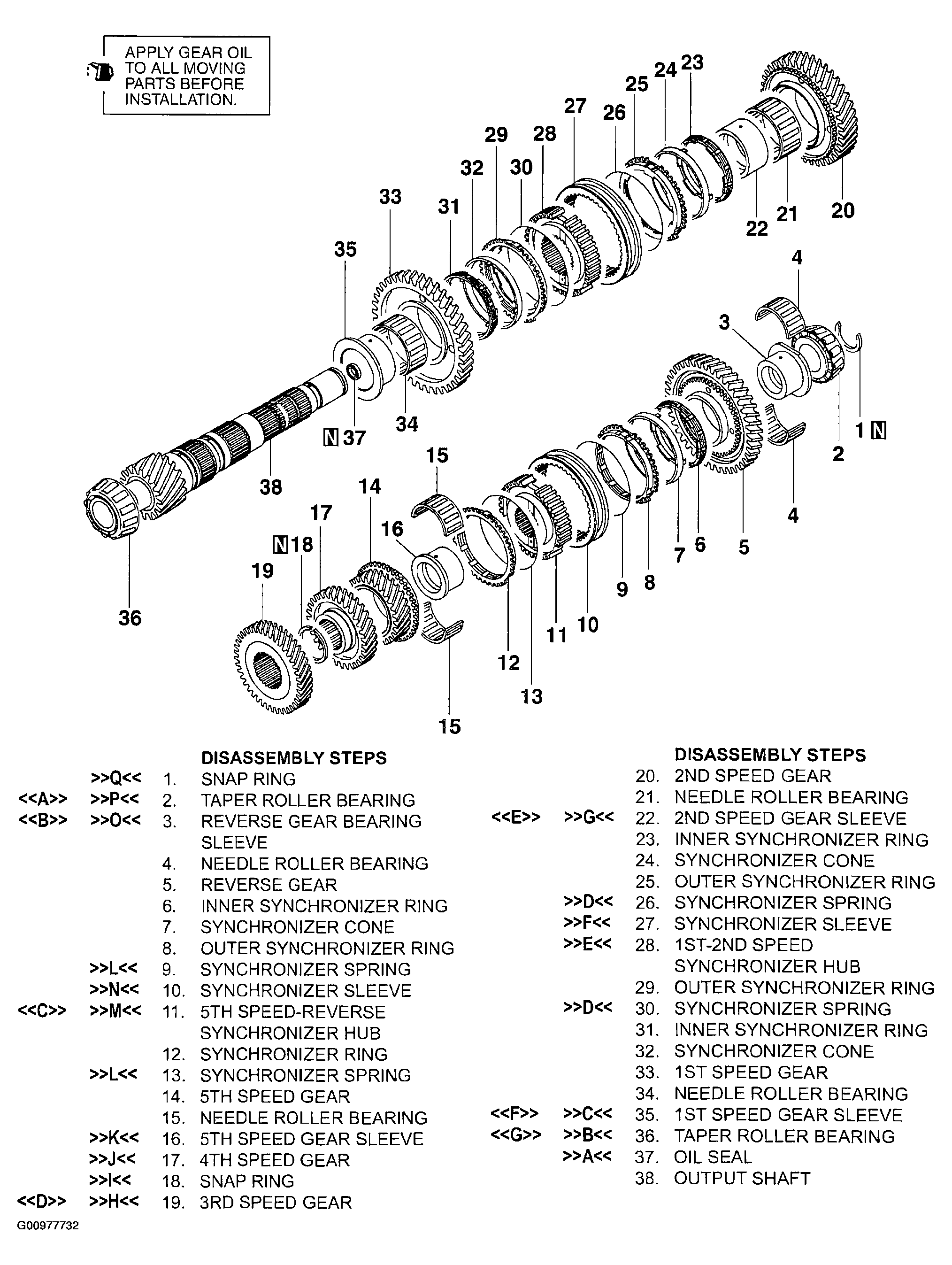

Fig 1: Exploded View Of Output Shaft
G00977732Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

  1. MD998364: Camshaft Oil Seal Installer
  2. MD998801: Bearing Remover
  3. MD998812: Installer Cap
  4. MD998814: Installer-200
  5. MD998819: Installer Adapter (40)
  6. MD998820: Installer Adapter (42)
  7. MD998821: Installer Adapter (44)
  8. MD998824: Installer Adapter (50)
  9. MD998917: Bearing Remover
