>> C << Spring Pin Installation

  1. Align the pin holes in the shift rail and shift fork.
  2. Insert the new spring pin. Push it in so that the slit and center axis of the rail are aligned.

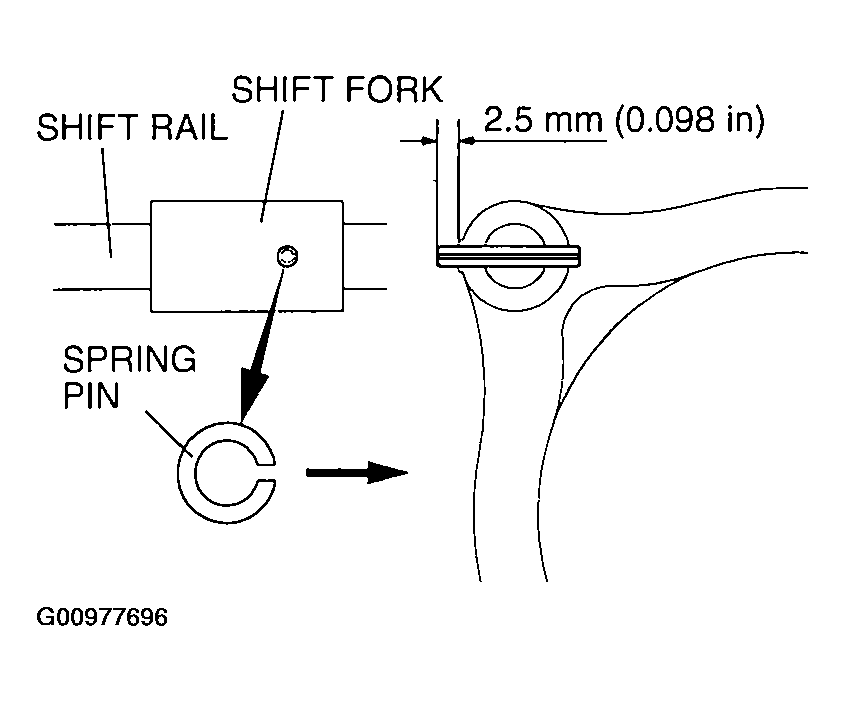

    Fig 1: Installing Spring Pin
    G00977696Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
