DTC 81, 82, 83: Steering Angular Velocity Sensor System: Notes

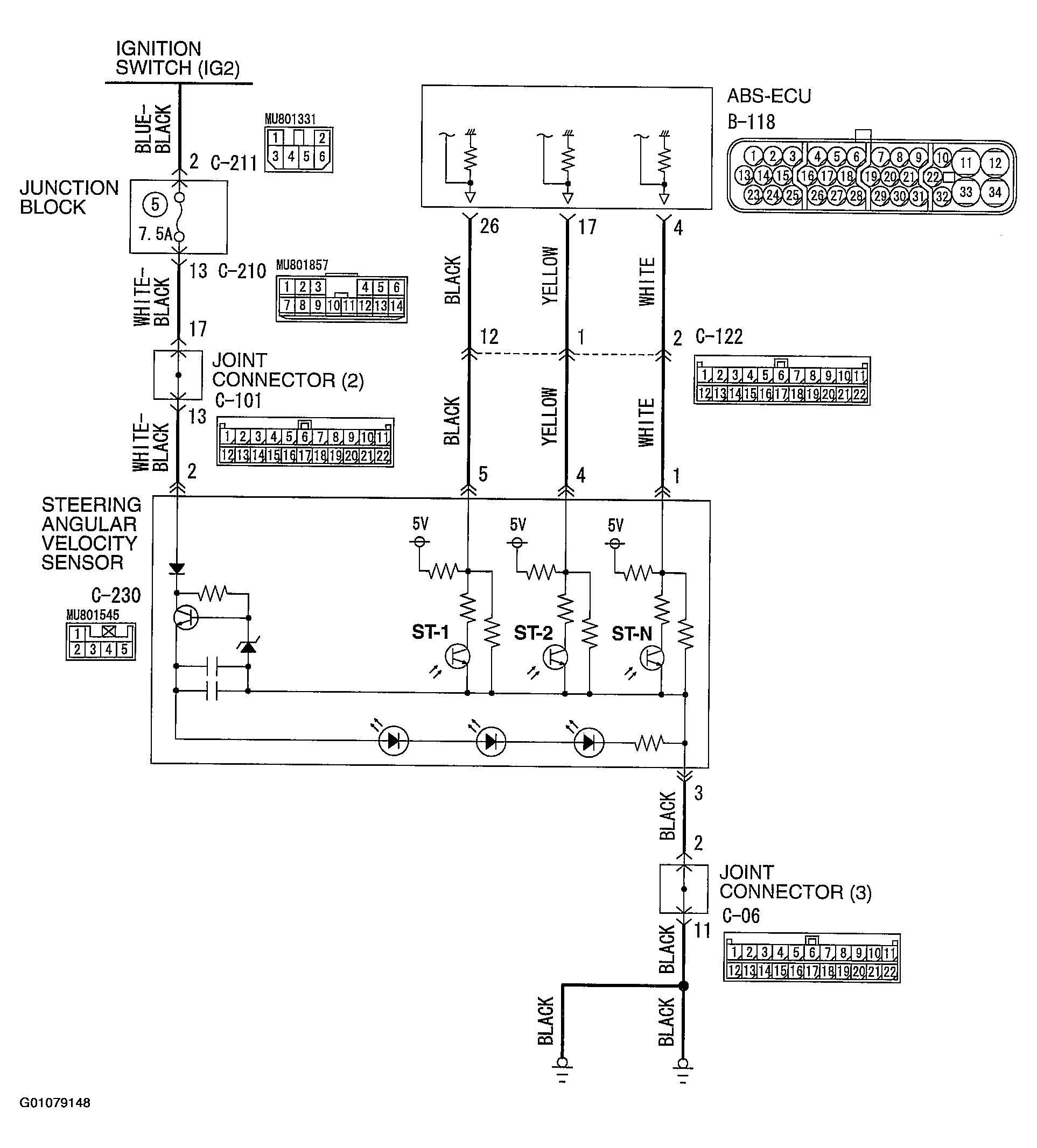

Fig 1: Steering Angular Velocity Sensor Circuit Diagram
G01079148Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

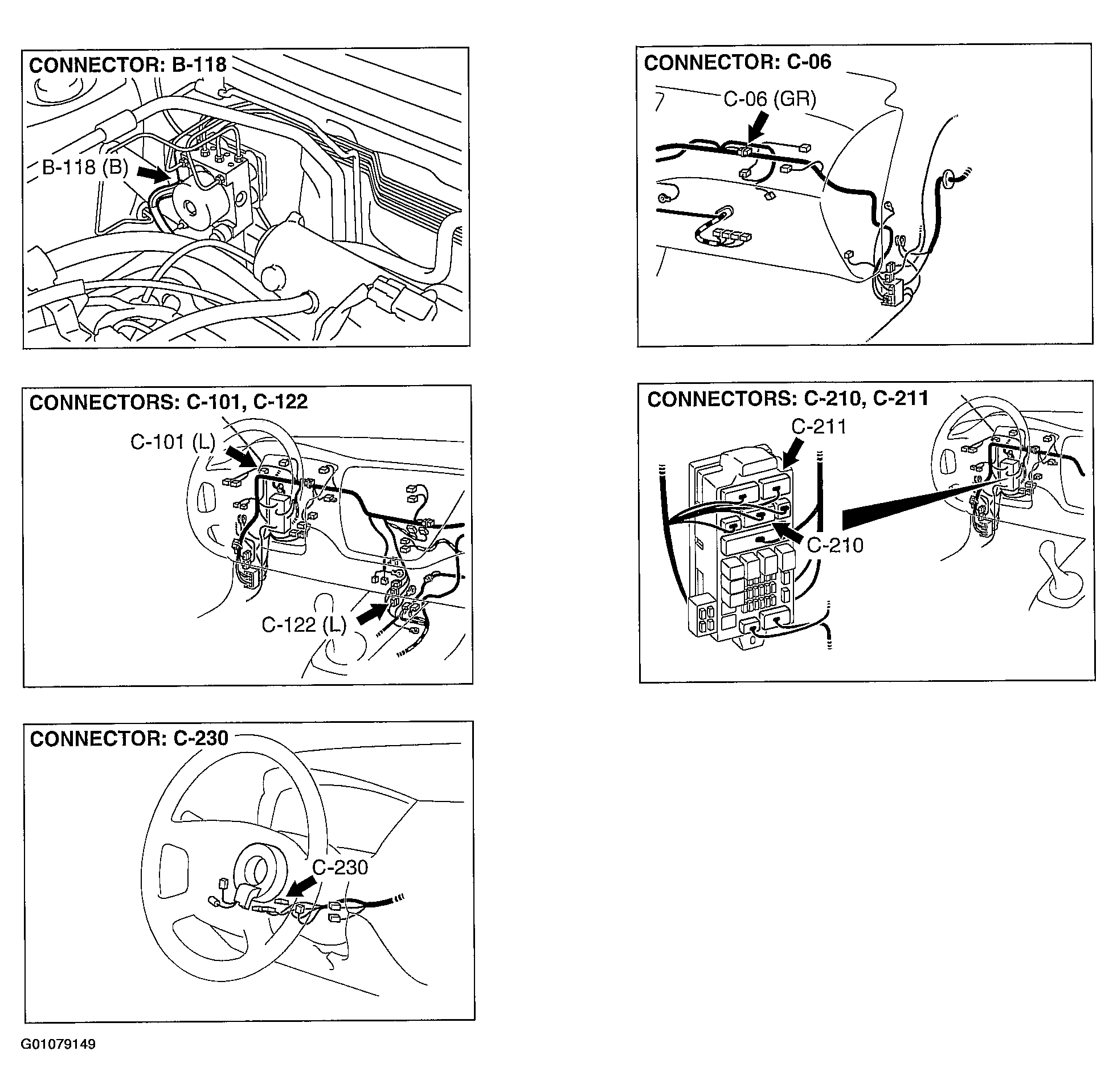

Fig 2: Steering Angular Velocity Sensor Circuit Connectors
G01079149Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
