INSPECTION PROCEDURE 1: Communication between the Scan Tool and all the Systems is Not Possible.: Diagnosis

Required Special Tool:

  1. STEP 1. Check the power supply circuit. Measure the voltage at data link connector C-14.

    Measure the voltage between terminal 16 and ground. It should measure approximately 12 volts (battery positive voltage).

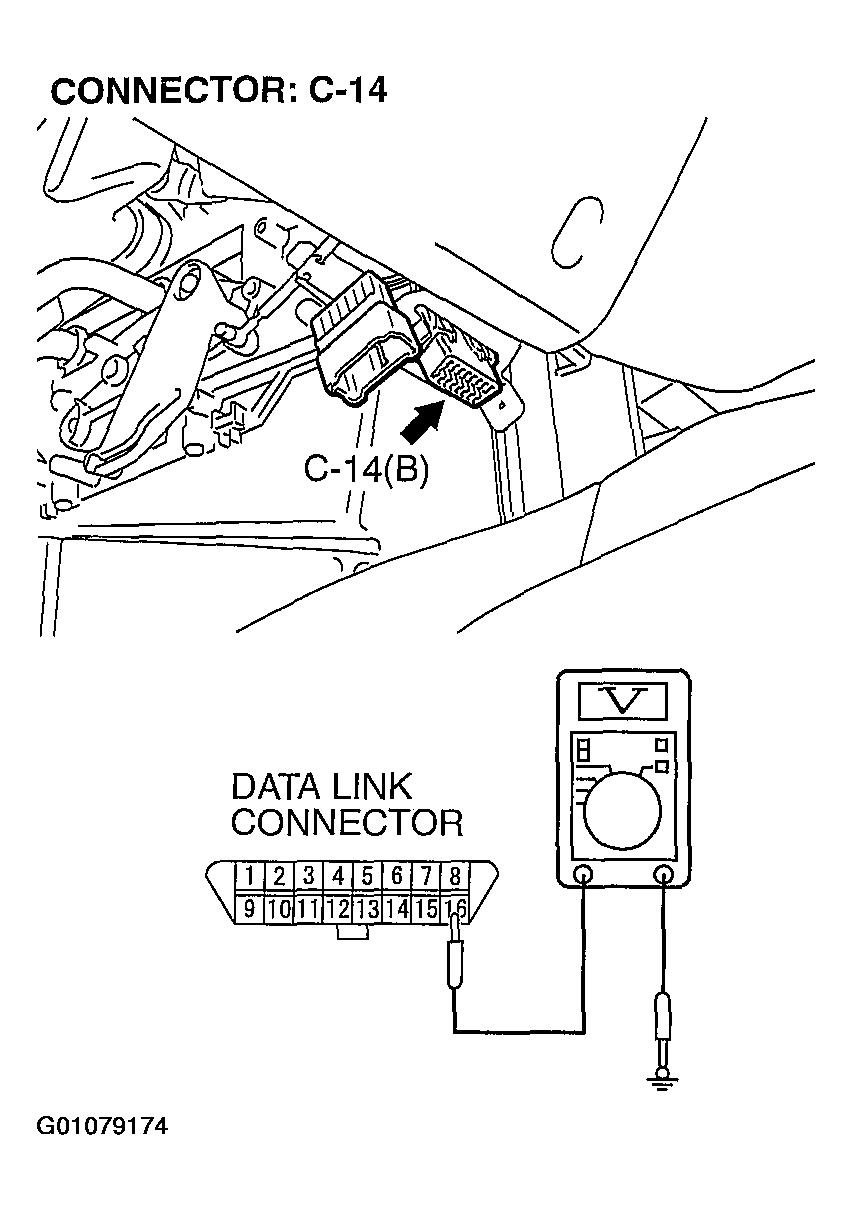

    Fig 1: Measuring Voltage At Data Link Connector C-14 Between Terminal 16 And Ground
    G01079174Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Is battery positive voltage (approximately 12 volts) present?

    1. YES:  Go to Step  4.
    2. NO:  Go to Step 2.
  2. STEP 2. Check the following connectors.
    • Data link connector C-14

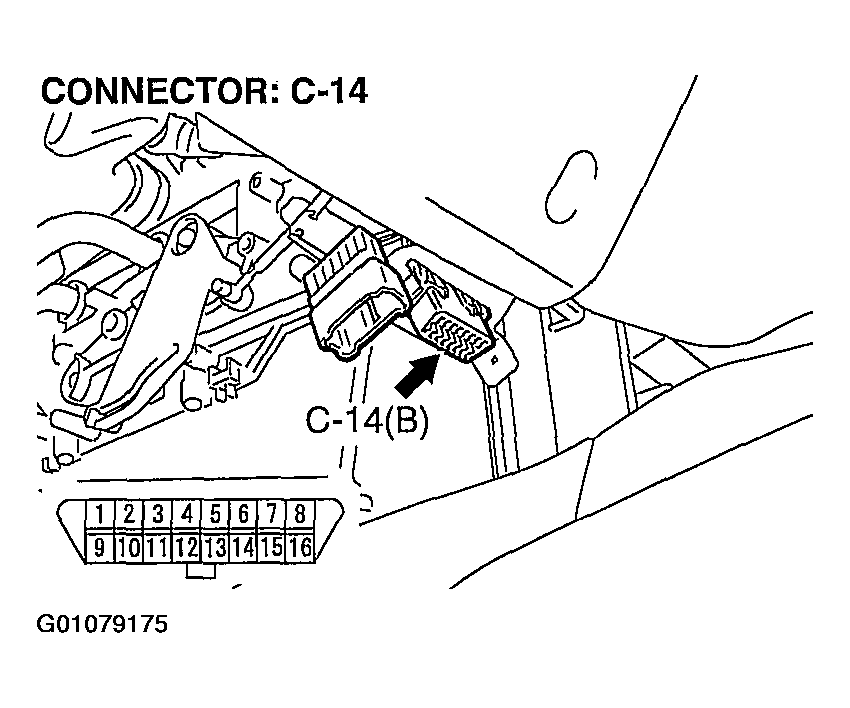

      Fig 2: Identifying Data Link Connector C-14
      G01079175Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    • Junction block connectors C-212, C-214

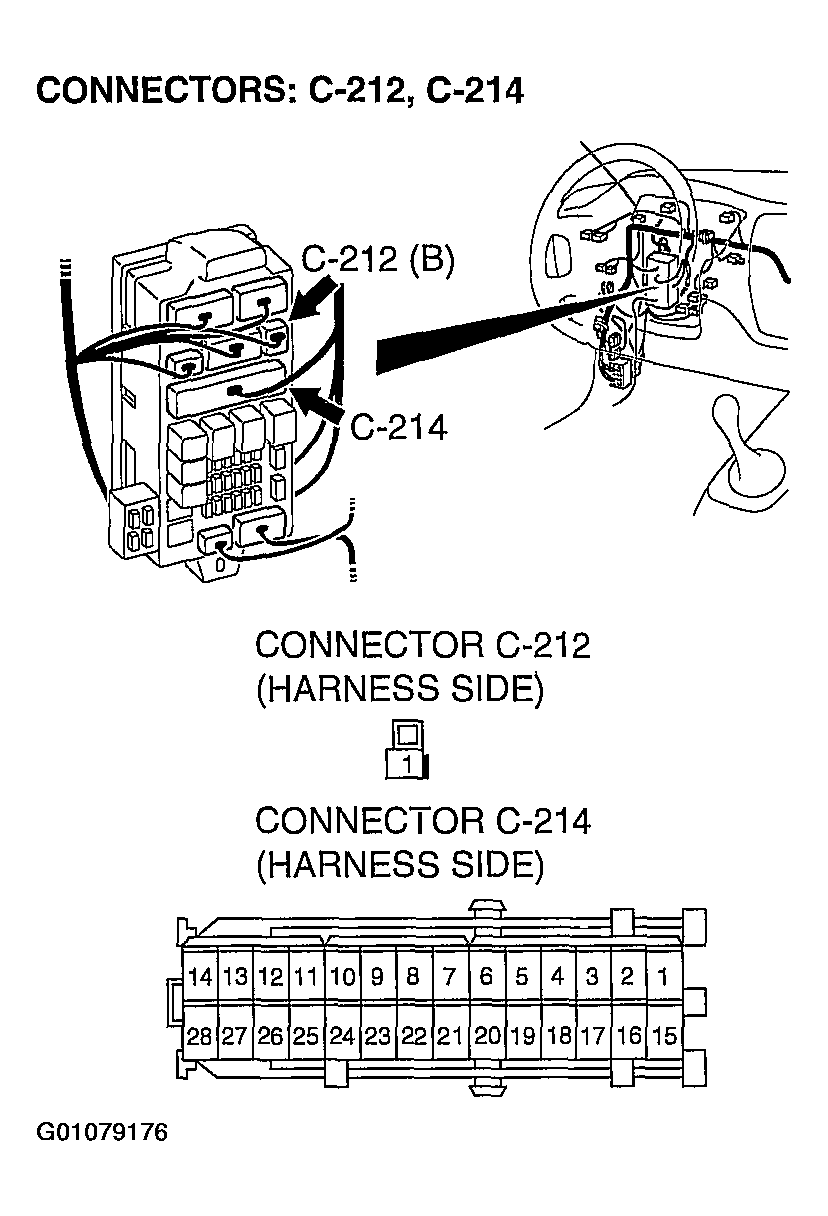

      Fig 3: Identifying Junction Block Connectors C-212, C-214
      G01079176Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    • Intermediate connector C-126

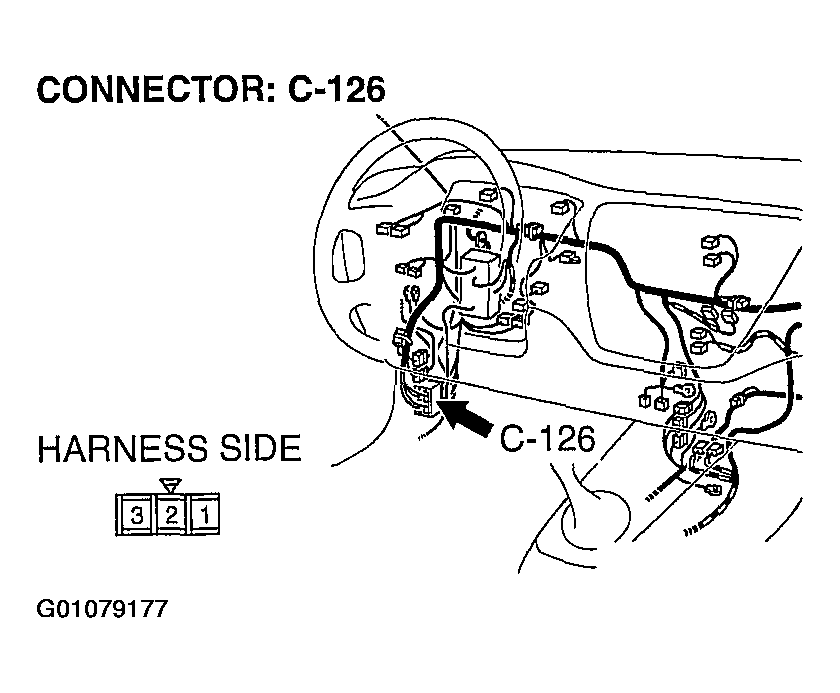

      Fig 4: Identifying Intermediate Connector C-126
      G01079177Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Check the connectors for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are the connectors and terminals in good condition?

    1. YES:  Go to Step 3.
    2. NO:  Repair it and then go to Step  7.
  3. STEP 3. Check the following harness wire.
    • The wire between data link connector C-14 (terminal 16) and junction block connector C-212 (terminal 1)
    Fig 5: Identifying Data Link Connector C-14
    G01079178Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

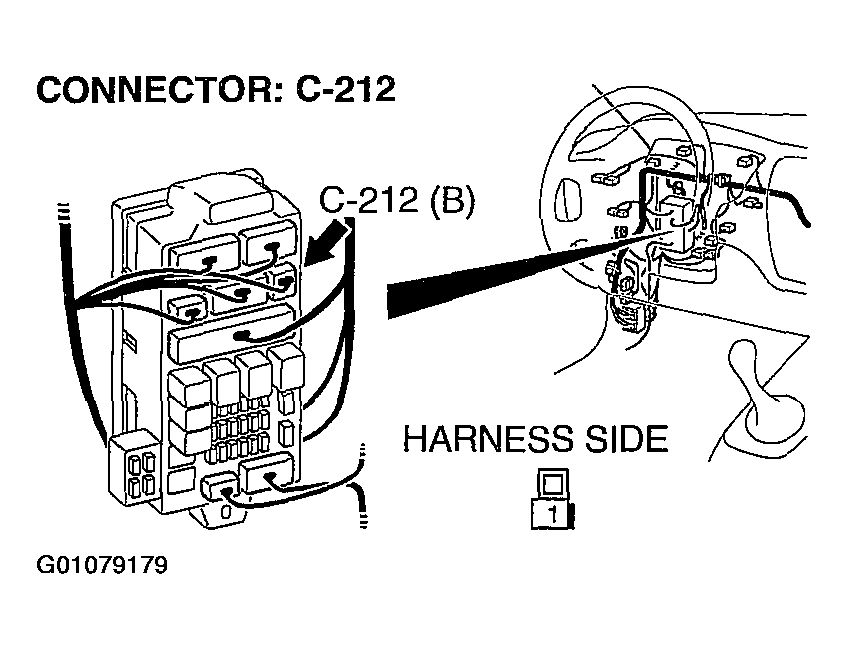

    Fig 6: Identifying Junction Block Connectors C-212
    G01079179Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Is the harness wire damaged?

    1. YES:  Repair or replace it and then go to Step  7.
    2. NO:  Go to Step  7.
  4. STEP 4. Check the ground circuit. Measure the resistance at data link connector C-14.

    Measure the resistance between terminal 4 and ground, and terminal 5 and ground. It should measure less than 2 ohms.

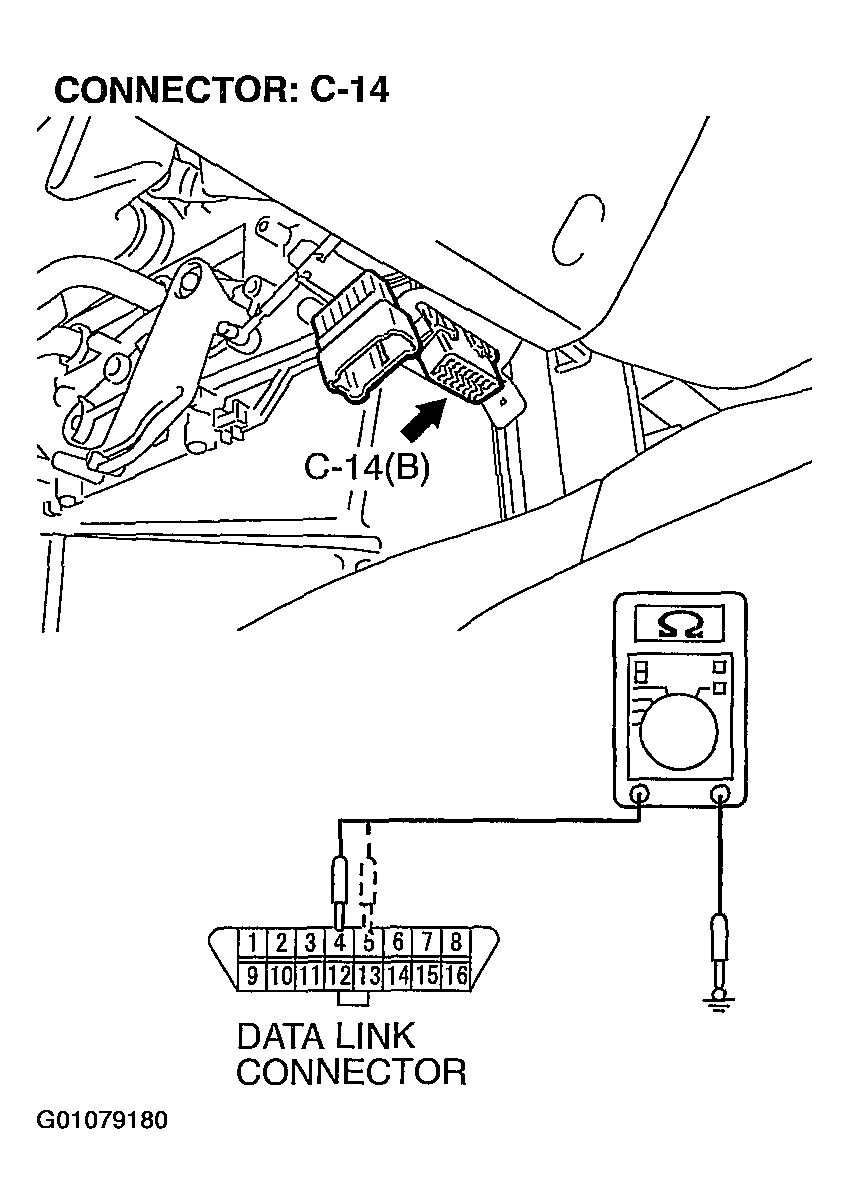

    Fig 7: Measuring Resistance At Data Link Connector C-14 Terminal 4 And Ground, And Terminal 5 And Ground
    G01079180Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Is the resistance 2 ohms or less?

    1. YES:  Replace the scan tool and then go to Step  7.
    2. NO:  Go to Step 5.
  5. STEP 5. Check the following connector.
    • Data link connector C-14

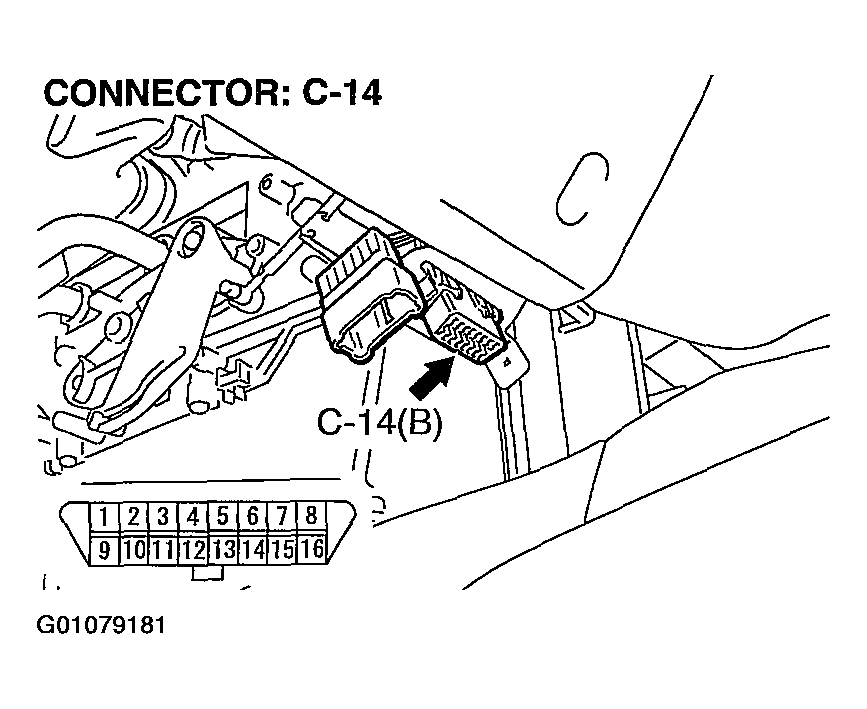

    Fig 8: Identifying Data Link Connector C-14
    G01079181Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Check the connector, for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are the connector and terminals in good condition?

    1. YES:  Go to Step 6.
    2. NO:  Repair it and then go to Step  7.
  6. STEP 6. Check the following harness wires.
    • The wire between data link connector C-14 (terminal 4) and ground (No.7)
    • The wire between data link connector C-14 (terminal 5) and ground (No.7)
    Fig 9: Identifying Data Link Connector C-14
    G01079182Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

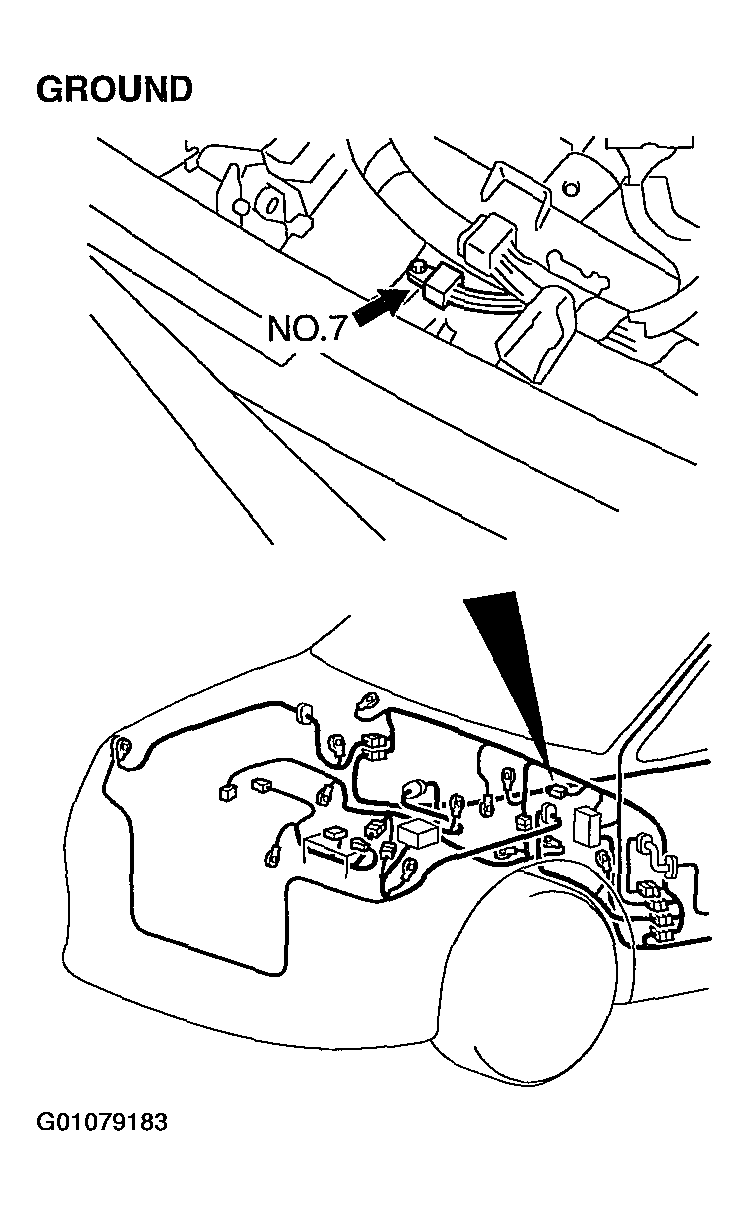

    Fig 10: Identifying Ground (No.7)
    G01079183Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Is any harness wire damaged?

    1. YES:  Repair or replace it and then go to Step 7.
    2. NO:  Go to Step 7.
  7. STEP 7. Retest the system.

    Q: Does the scan tool communicate with the whole system?

    1. YES:  The procedure is complete.
    2. NO:  Return to Step  1.
