>> C << TJ Case Installation

CAUTION: The drive shaft joint use special grease. Do not mix old and new or different types of grease.

After applying the specified grease to the TJ case, insert the drive shaft and apply grease one more time.

  1. Specified grease: Repair kit grease
  2. Amount to use: 145 +/- 10 g (5.1 +/- 0.3 ounces)
NOTE: The grease in the repair kit should be divided in half for use, respectively, at the joint and inside the boot.

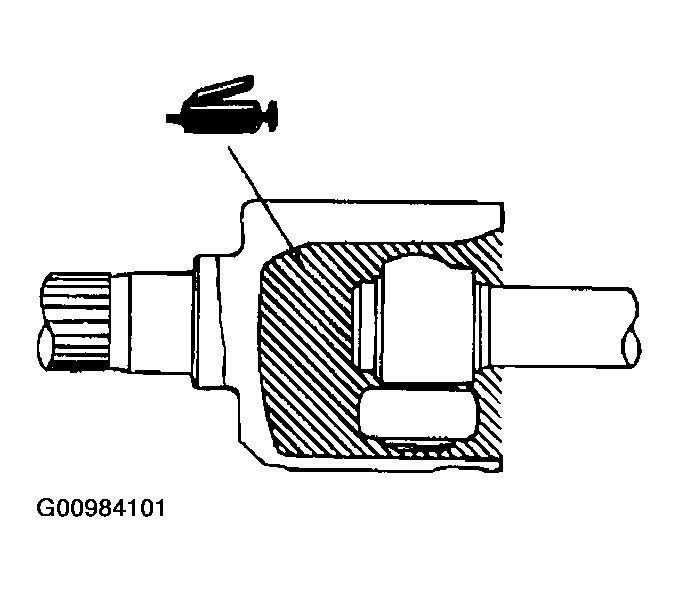

Fig 1: Identifying Drive Shaft Joint Grease Application Area
G00984101Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
