Lubrication Points

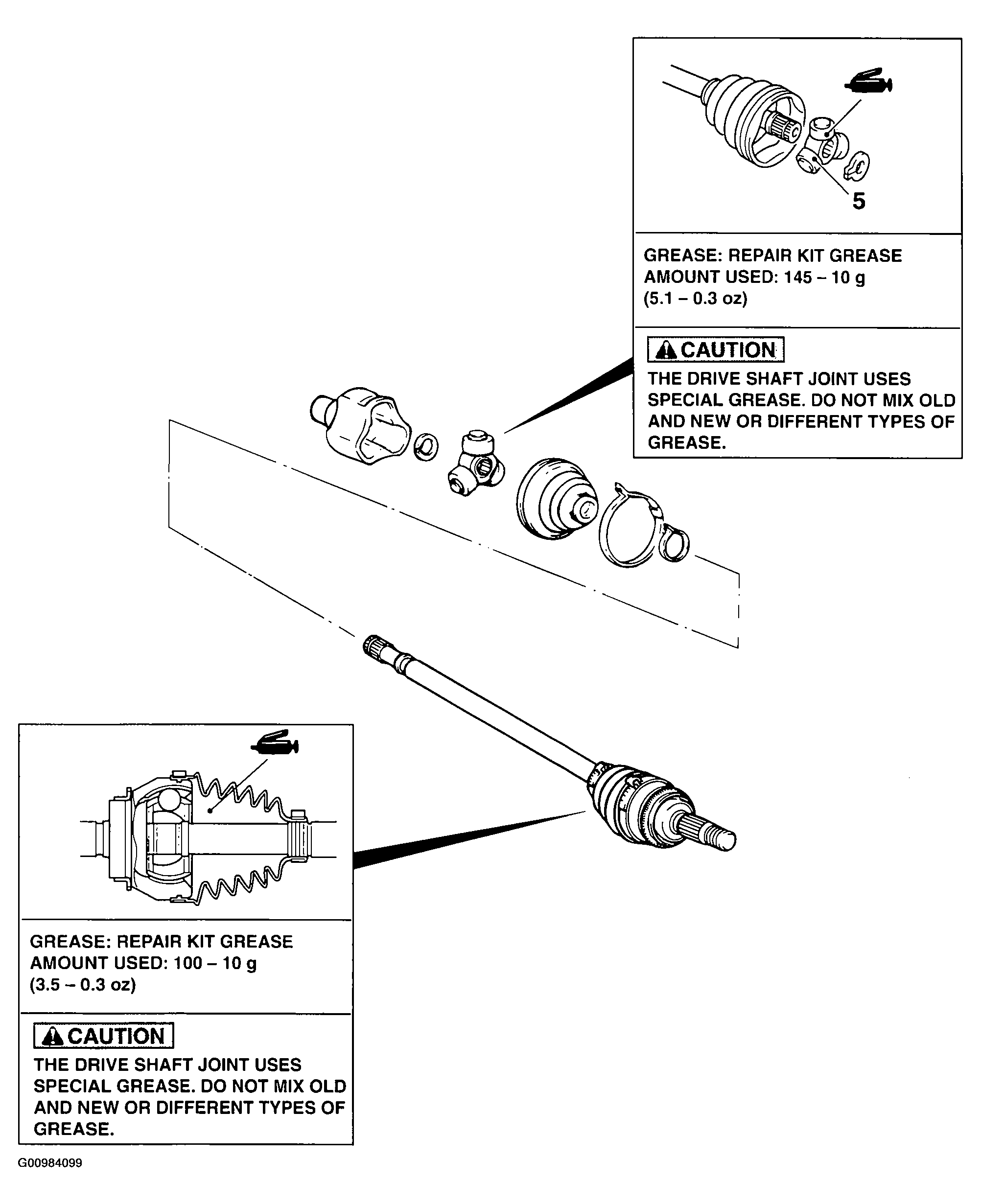

Fig 1: Identifying Lubrication Points
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
