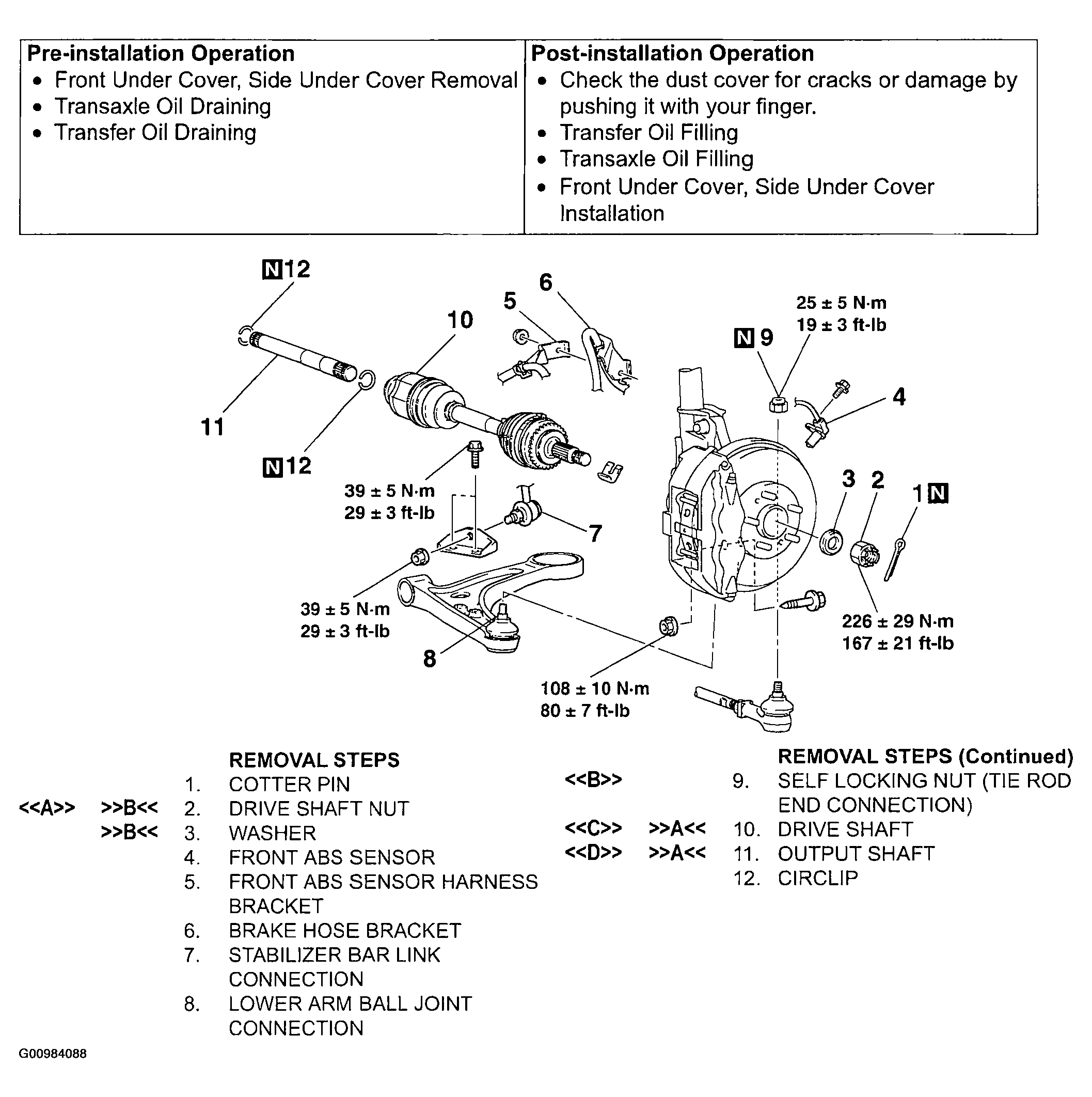

Removal And Installation: Notes
CAUTION:
- Do not strike the ABS rotors installed to the EBJ outer race of drive shaft against other parts when removing or installing the drive shaft. Otherwise the ABS rotors will be damaged.
- Be careful not to strike the pole piece at the tip of the front ABS sensor with tools during servicing work.
- During maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe off quickly.
Required Special Tools:
- MB990767 : End Yoke Holder
- MB991897 : Ball Joint Remover
- MB990241 : Axle Shaft Puller
- MB991354 : Puller Body
- MB991017 : Front Hub Remover and Installer
- MB991000 (MB990998): Spacer
- MB991721: Slide Hammer
