Disassembly And Reassembly: Notes

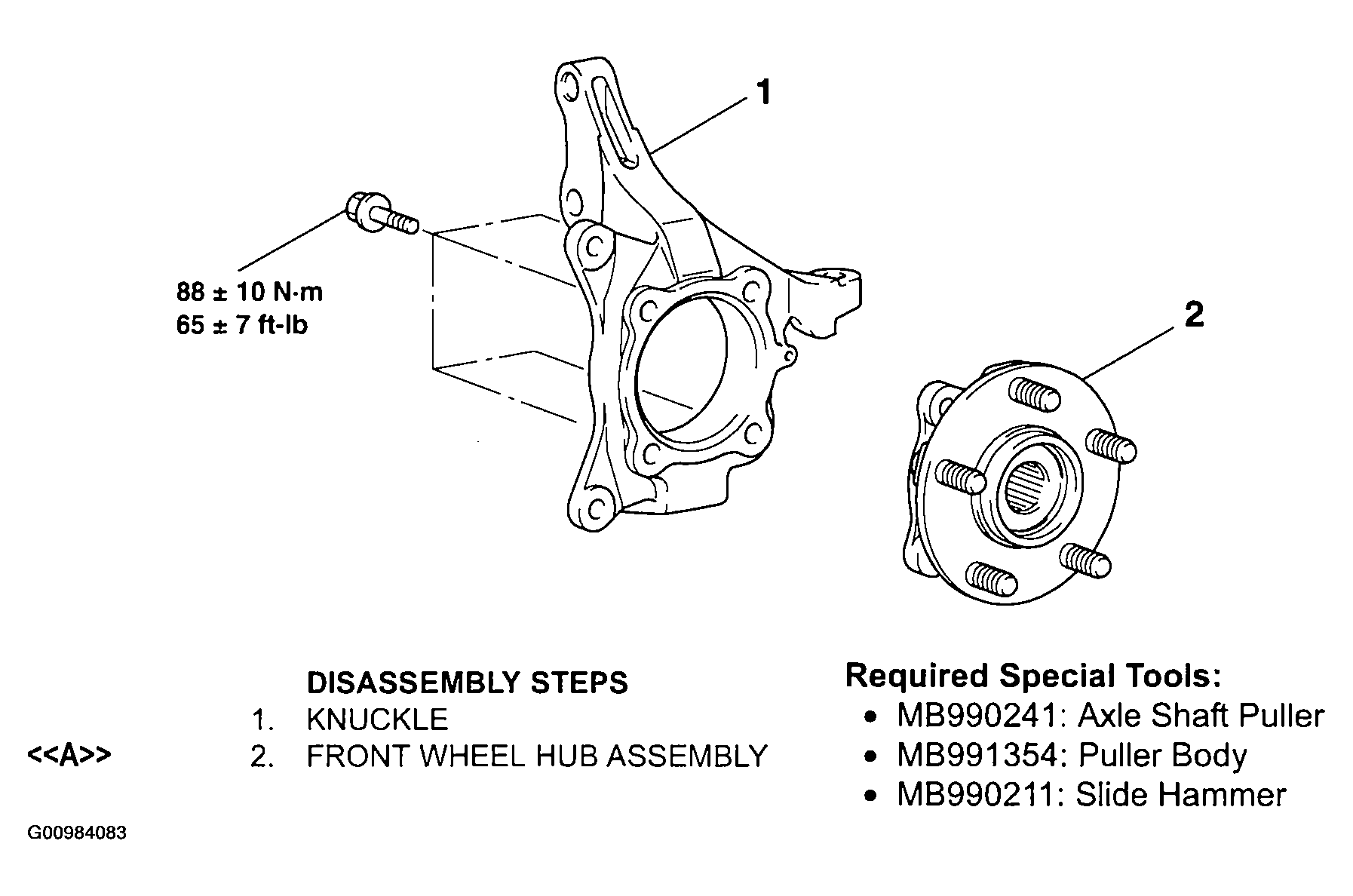

Fig 1: Disassembling Front Wheel Hub Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
