Engine Performance
>>
System
>>
Emission Control System - Evolution
>>
Emission Control
>>
Catalytic Converter
>>
Removal And Installation
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Removal And Installation

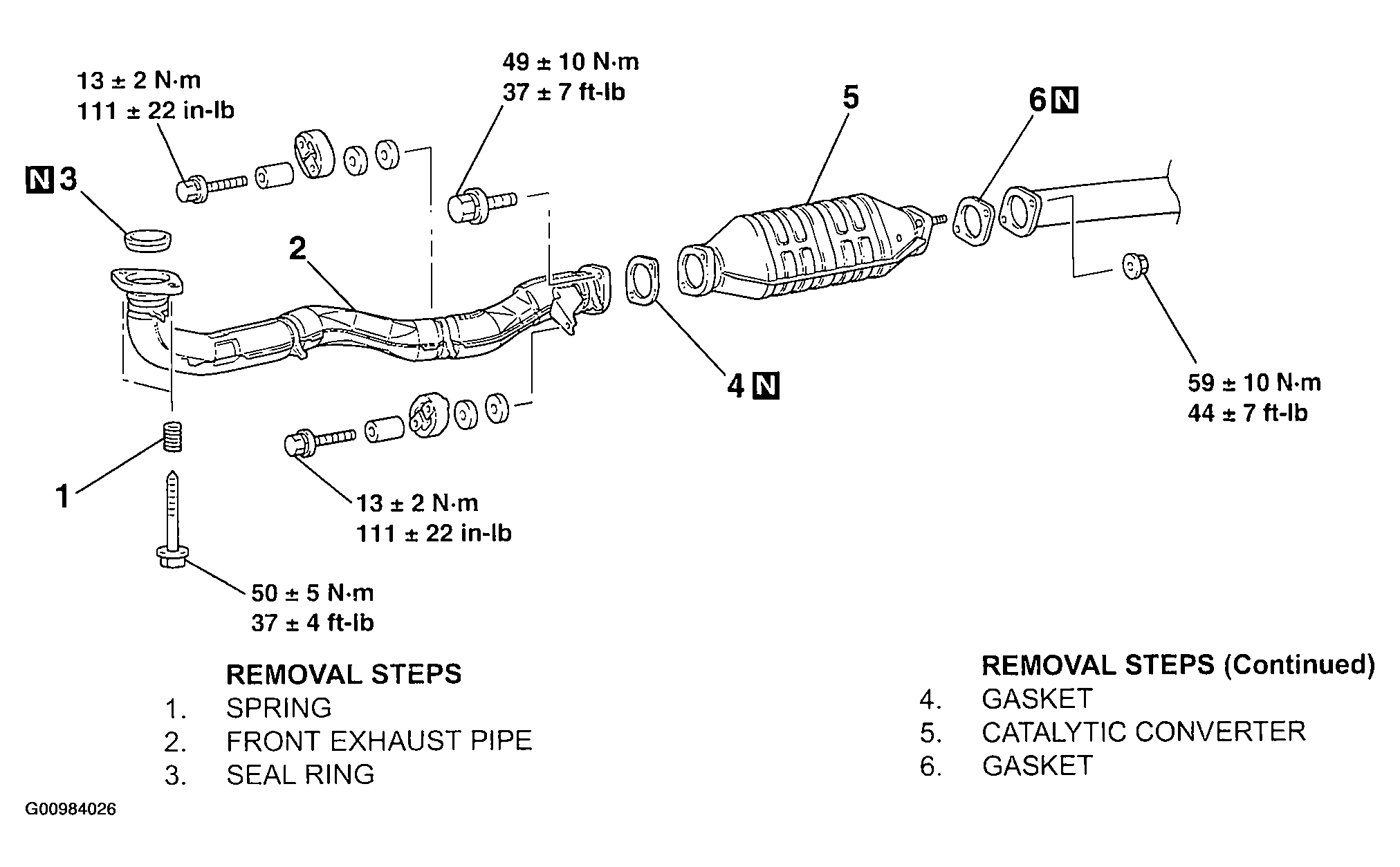

Fig 1: Removing Catalytic Converter
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
