Inspection Procedure 6: Combination Meter Does Not Work: Notes

WARNING: This page is about a different variant/trim than selected.

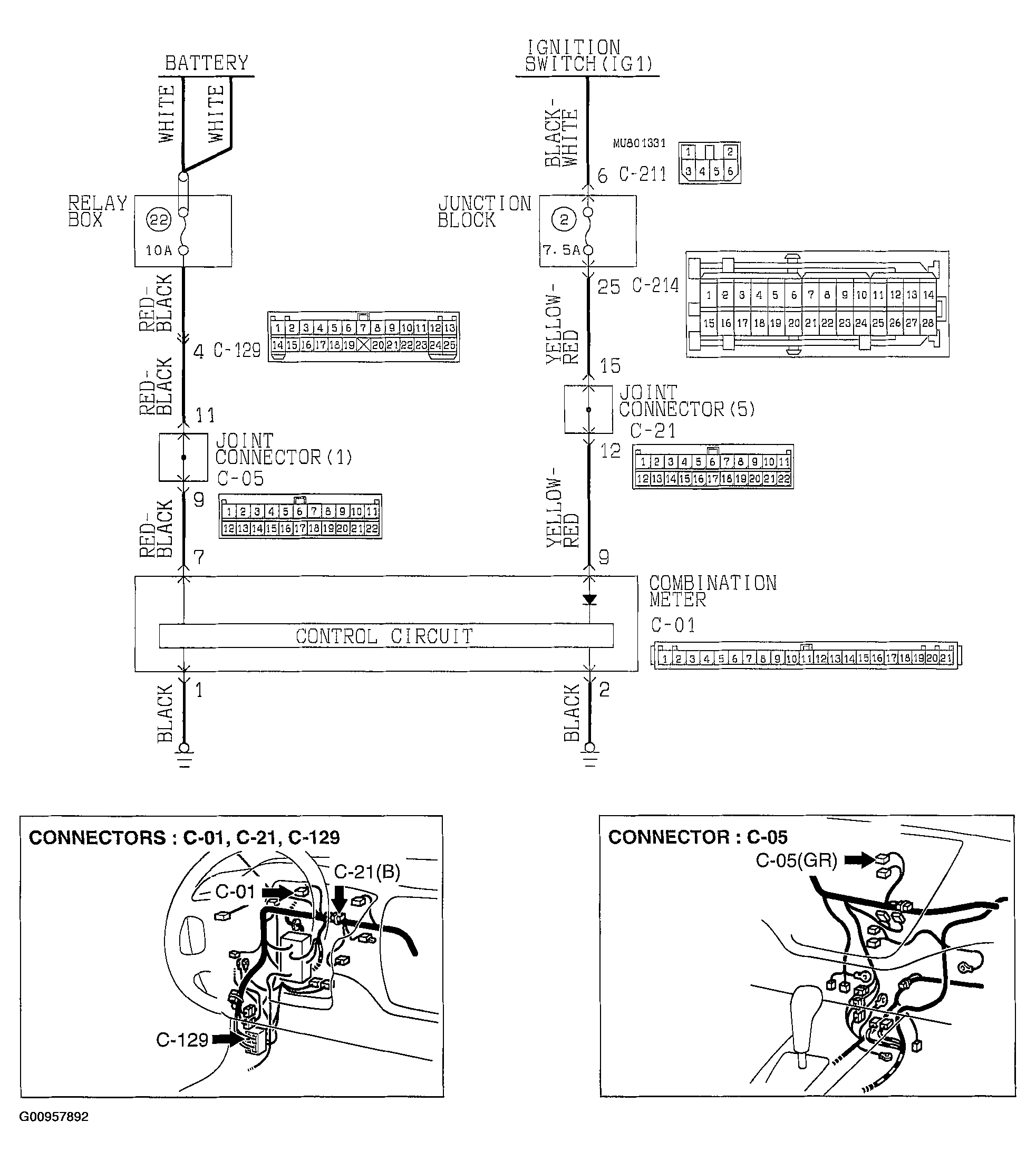

Fig 1: View Of Combination Meter Power Supply Circuit
G00957892Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

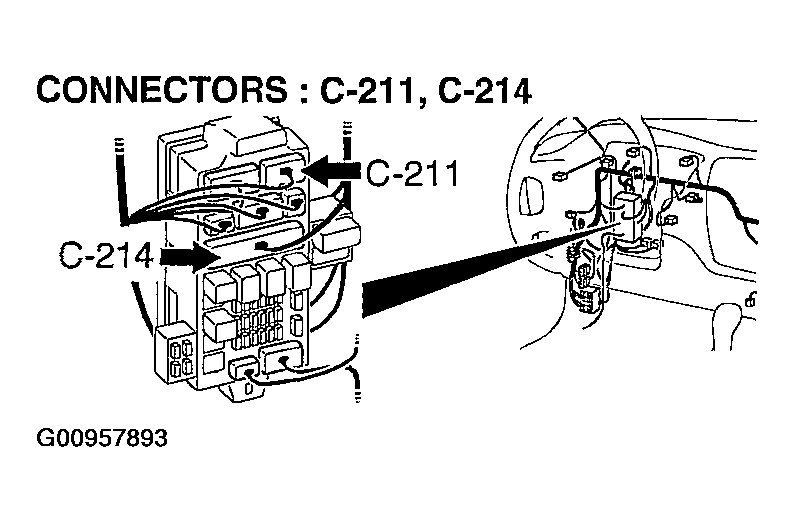

Fig 2: IIdentifying Connectors C-211 And C-214
G00957893Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
