Short-Circuit Check

Because the fuse has blown, it is probable that there is a short circuit. Follow the procedures below to narrow down the short-circuit location.

1. STEP 1. Remove the blown fuse and connect the test light across the fuse terminals (Circuit switch: OFF).

   Q: Does the test light illuminate?

   1. YES  : Short-circuit exists between the fuse block and the switch. Repair the harness between the fuse block and the switch.
   2. NO  : Go to Step 2.

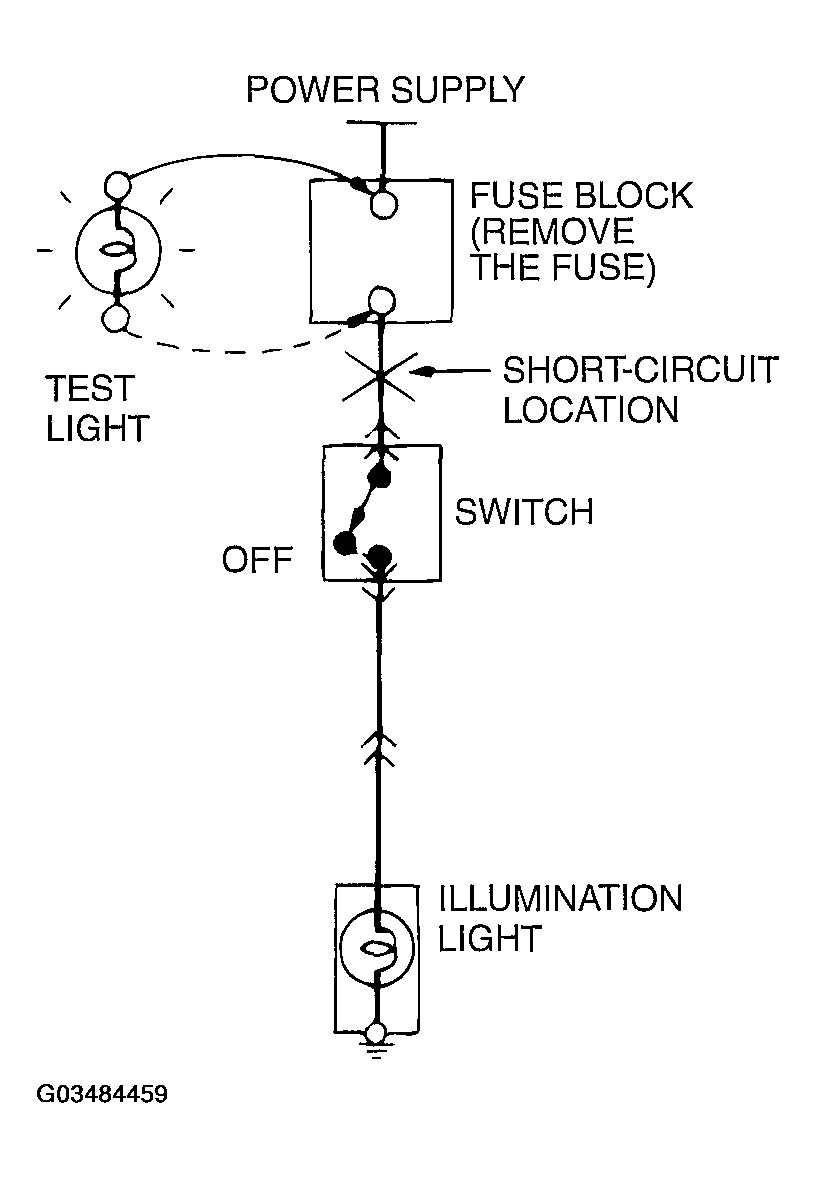

   Fig 1: Checking Short Circuit Between Fuse Block And Switch

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. STEP 2. Turn the switch ON and disconnect the illumination light connector.

   Q: Does the test light illuminate?

   1. YES  : Short-circuit exists between the switch and the connector. Repair the harness between the switch and the connector.
   2. NO  : Short-circuit exists between the connector and the illumination light. Repair the harness between the connector and the illumination light.

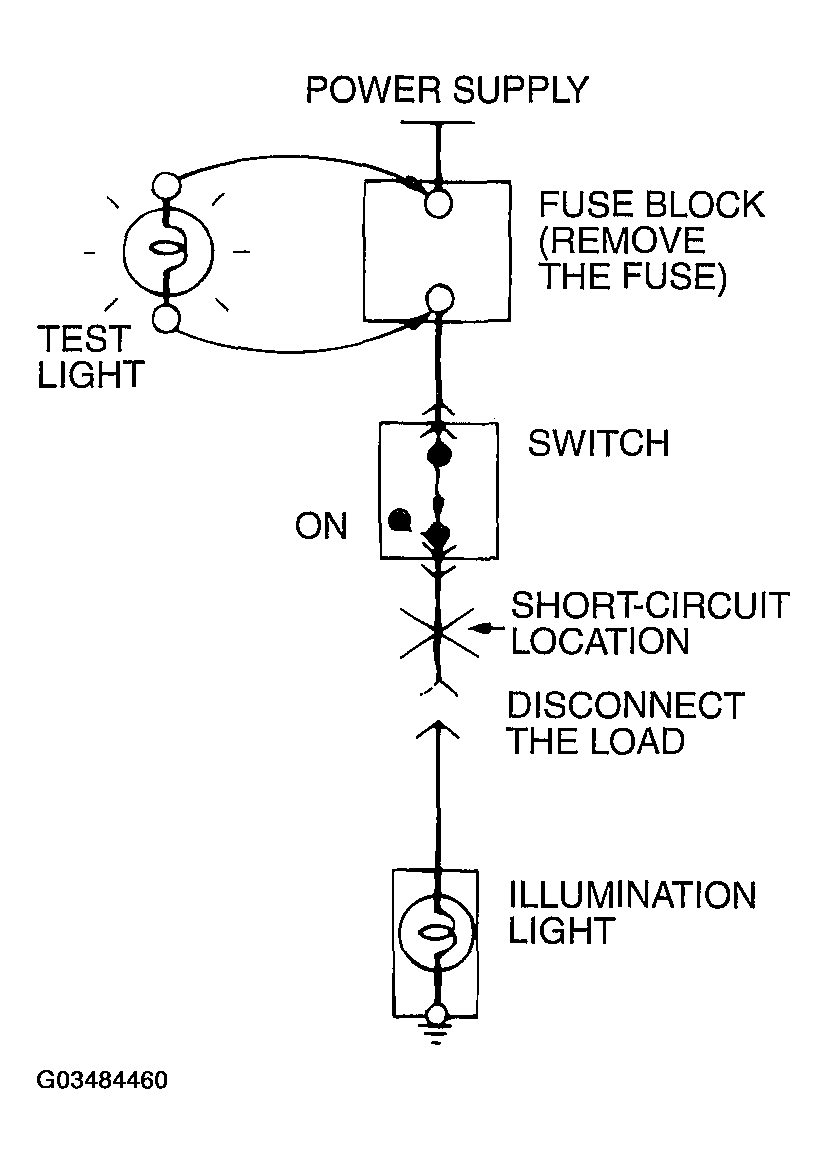

   Fig 2: Checking Short-Circuit Between Switch And Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

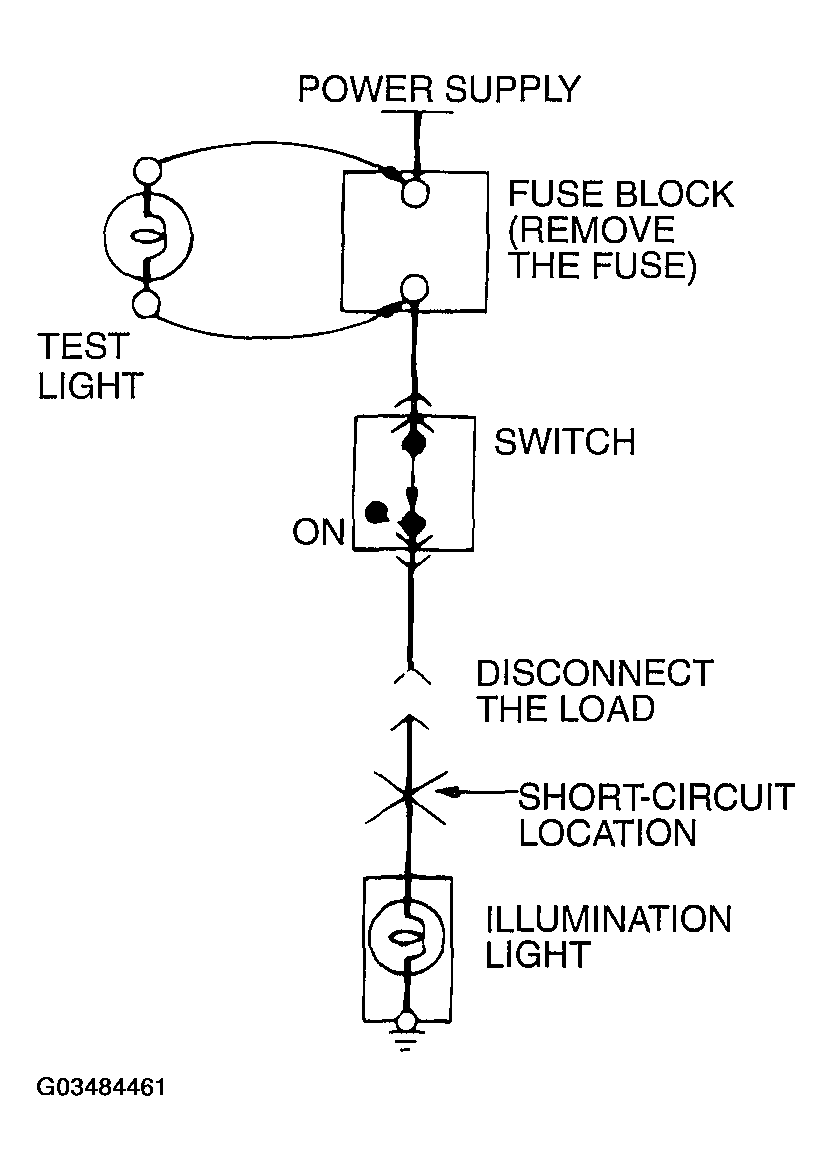

   Fig 3: Checking Short-Circuit Between Connector And Illumination Light

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
