Upshift Pattern

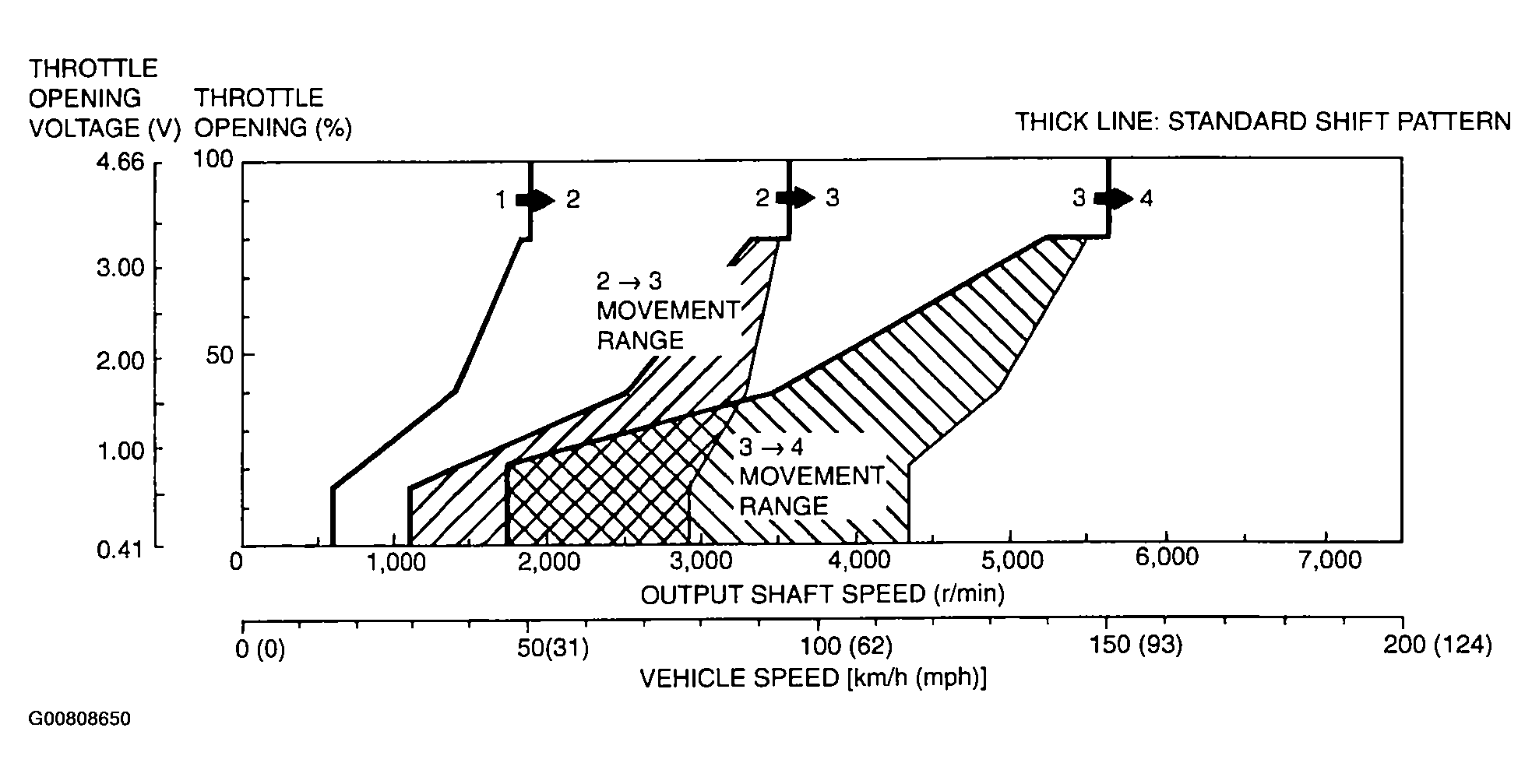

Fig 1: Upshift Pattern Control System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
Within 2 to 3 and 3 to 4 movement ranges, the PCM adjusts shift points according to the driving conditions by memorizing the accelerator pedal stroke and braking timing.
