>> E << 3RD-4TH Speed Synchronizer Hub Installation

  1. Using special tool MD998801, support the 2nd speed gear portion of the input shaft, and then set them on the press.>
  2. Make sure that the inner synchronizer ring has been perfectly matched to the 3rd speed gear cone.
  3. Check the installation direction of the 3rd-4th speed synchronizer hub, and put it on the input shaft.
  4. Using special tools MD998812, MD998813 and MD998825, press install the 3rd-4th speed synchronizer hub with the press.
  5. Make sure that the outer synchronizer ring can rotate freely.

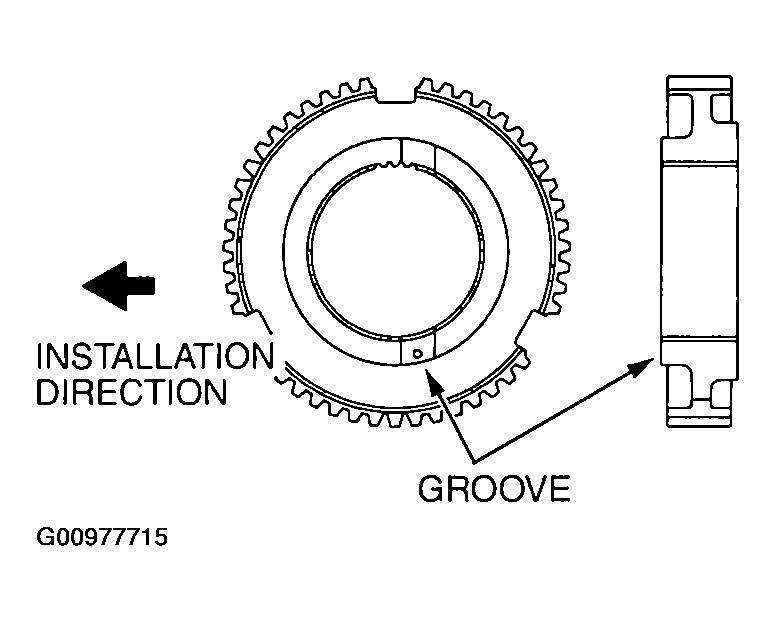

    Fig 1: Installing 3rd-4th Speed Synchronizer Hub
    G00977715Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

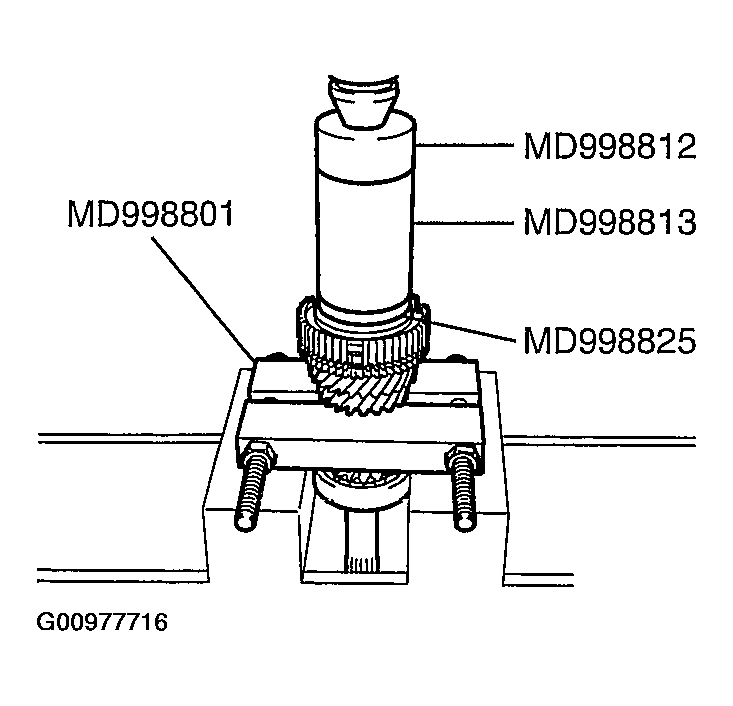

    Fig 2: Using Special Tools Md998812,813,825
    G00977716Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
