<< C >> 5TH Speed-Reverse Synchronizer Hub Removal

Using special tool MD998801, support the 4th speed gear, and then set them on the press.
Push down on the output shaft with the press and remove the 5th speed-reverse synchronizer hub.

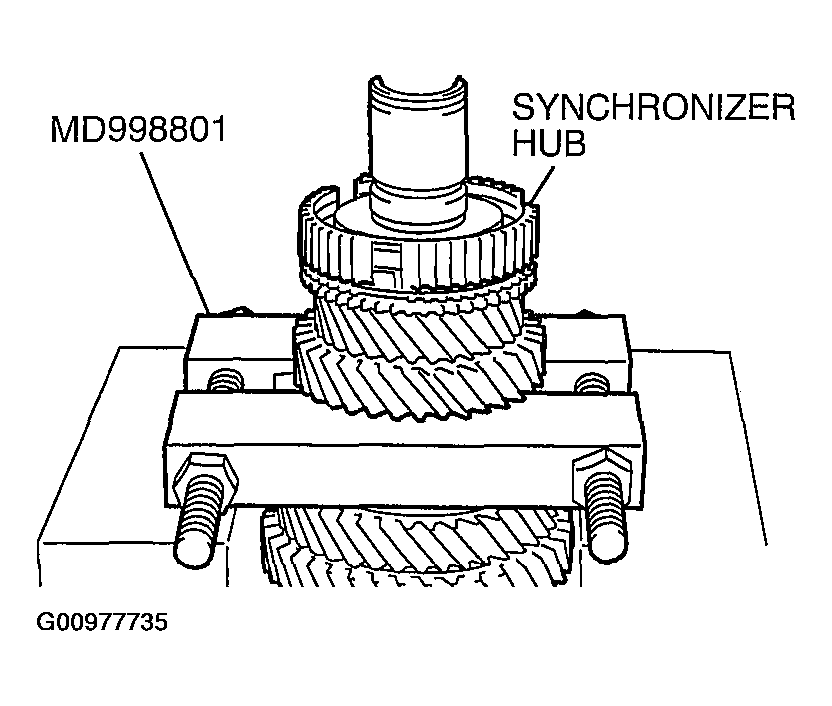

Fig 1: Removing 5th Speed Reverse4 Synchronizer Hub Removal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
