< When The Transmitter Is Used After Connecting The Special Tool MB991824 (V.C.I.) To The Data Link Connector>

  1. Enter the hazard answerback customize mode by observing one of the following steps. If the ETACS-ECU enters the customize mode, its tone alarm will sound once.
    CAUTION: Turn the ignition switch to the "LOCK" (OFF) position and then connect special tool MB991824 (V.C.I.) to the data link connector.
    1. Connect the special tool MB991824 (V.C.I.) to the data link connector.
    2. Close the driver's side door.
    3. Leave the windshield washer switch on for at least ten seconds. Then the ETACS-ECU tone alarm will sound once.
  2. If the transmitter "LOCK" button is pushed consecutively twice within two seconds, the ETACS-ECU tone alarm will sound, indicating that the hazard answerback function can be enabled or disabled when the doors are locked.
    • Enable the hazard answerback function when the doors are locked: The ETACS-ECU tone alarm will sound once.
    • Disable the hazard answerback function when the doors are locked: The ETACS-ECU tone alarm will sound twice.
  3. If the transmitter "UNLOCK" button is pushed consecutively twice (within two seconds), the ETACS-ECU tone alarm will sound, indicating that the hazard answerback function can be enabled or disabled when the doors are unlocked.
    • Enable the hazard answerback function when the doors are unlocked: The ETACS-ECU tone alarm will sound once.
    • Disable the hazard answerback function when the doors are unlocked: The ETACS-ECU tone alarm will sound twice.
  4. Exit the hazard answerback customize mode by observing one of the following steps.
CAUTION: Turn the ignition switch to the "LOCK" (OFF) position and then disconnect special tool MB991824 (V.C.I.) from the data link connector.
  1. Disconnect special tool MB991824 (V.C.I.) from the data link connector.
  2. Turn the ignition switch to position other then "LOCK" (OFF), or remove the ignition key.
  3. Open the driver's side door,
NOTE: If any operation is not done for at least three minutes after the ETACS-ECU has entered the customize mode, the hazard answerback customize mode will be canceled automatically.

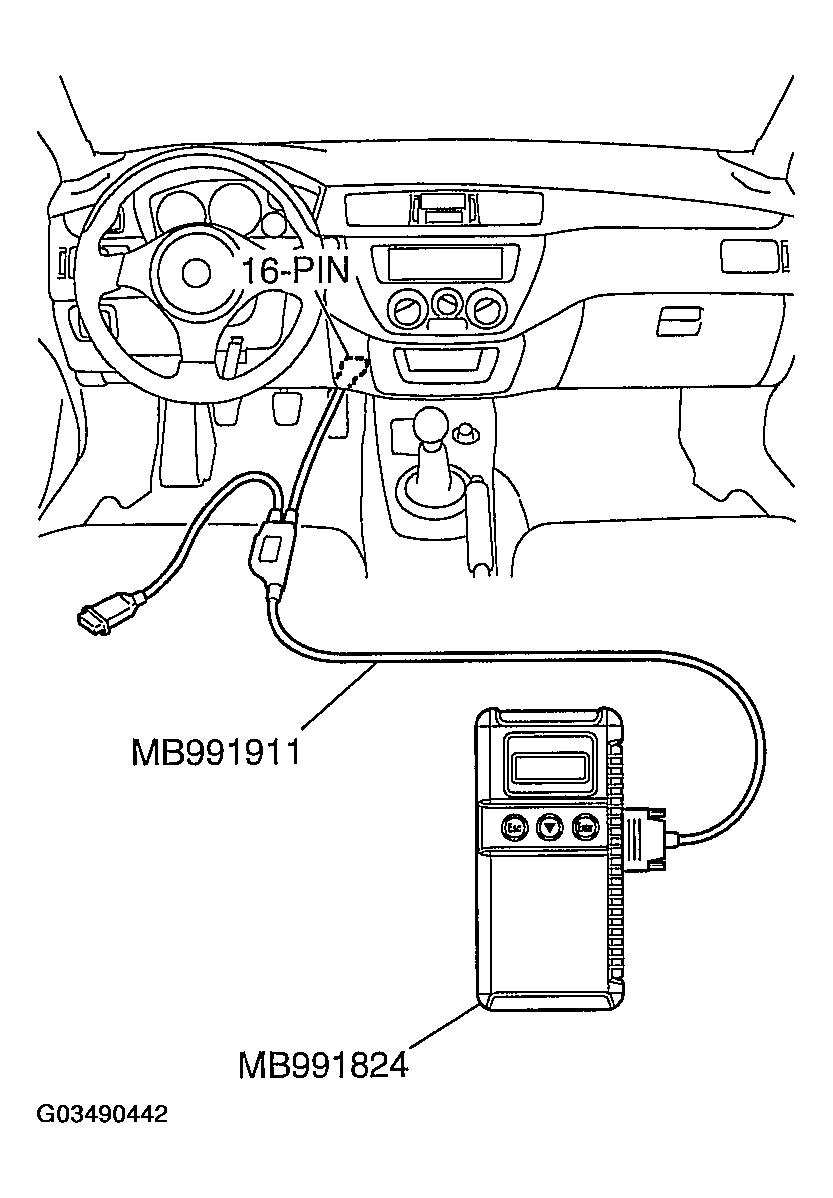

Fig 1: Connecting Special Tool MB991824 (V.C.I.) To Data Link Connector
G03490442Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
