Actuator Test Specifications

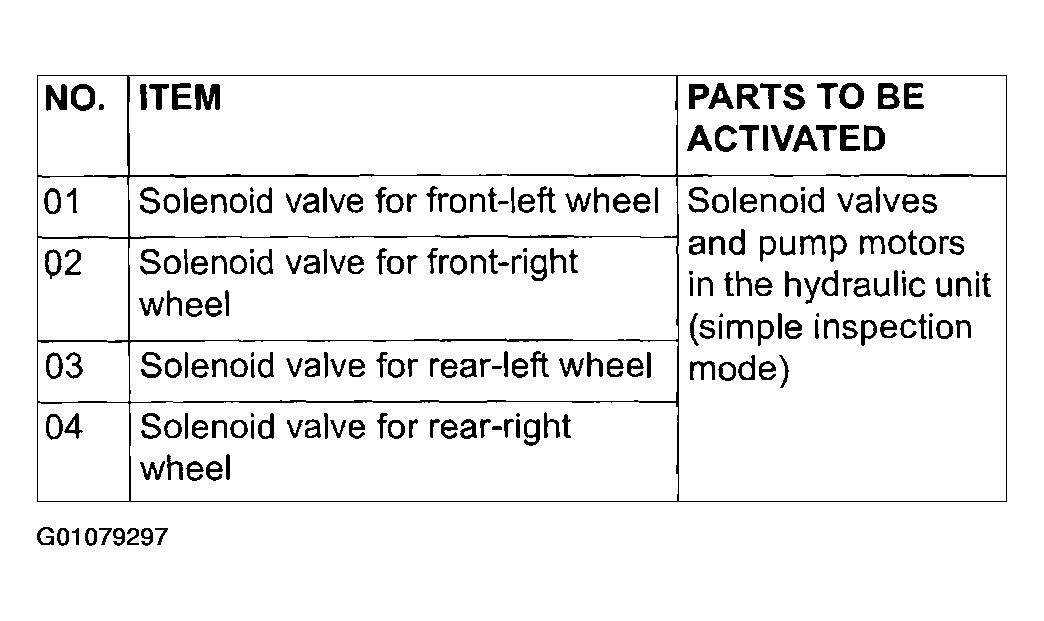

Fig 1: Actuator Test Specifications Chart
G01079297Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

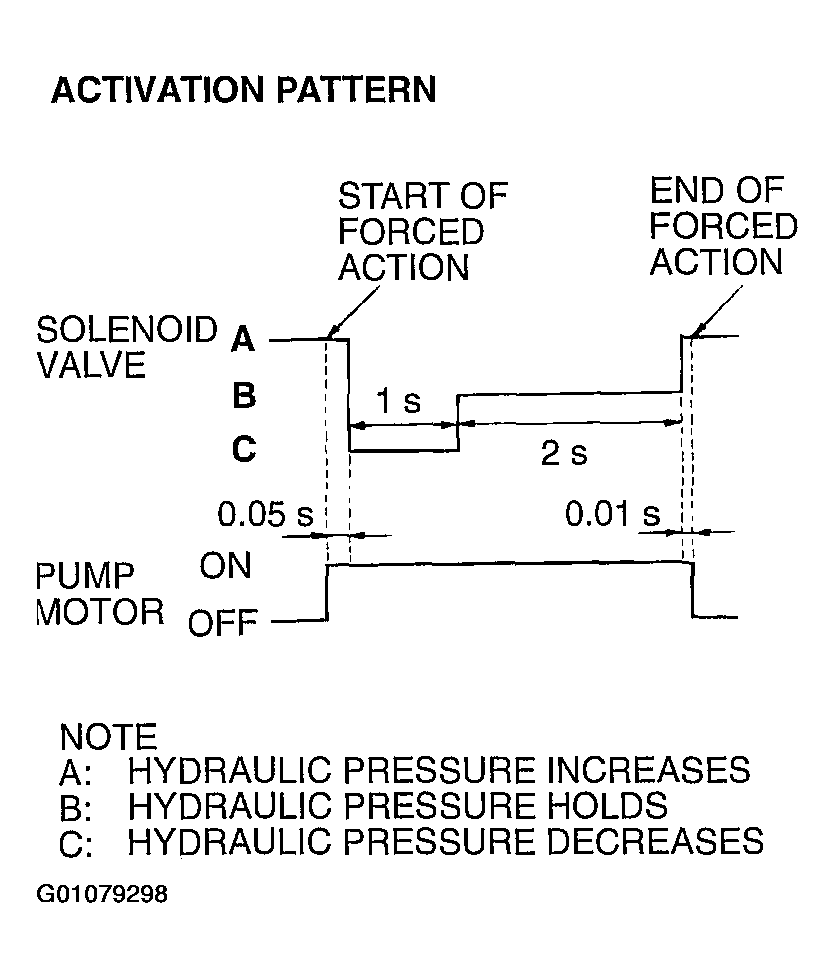

Fig 2: Identifying Activation Pattern Chart
G01079298Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
