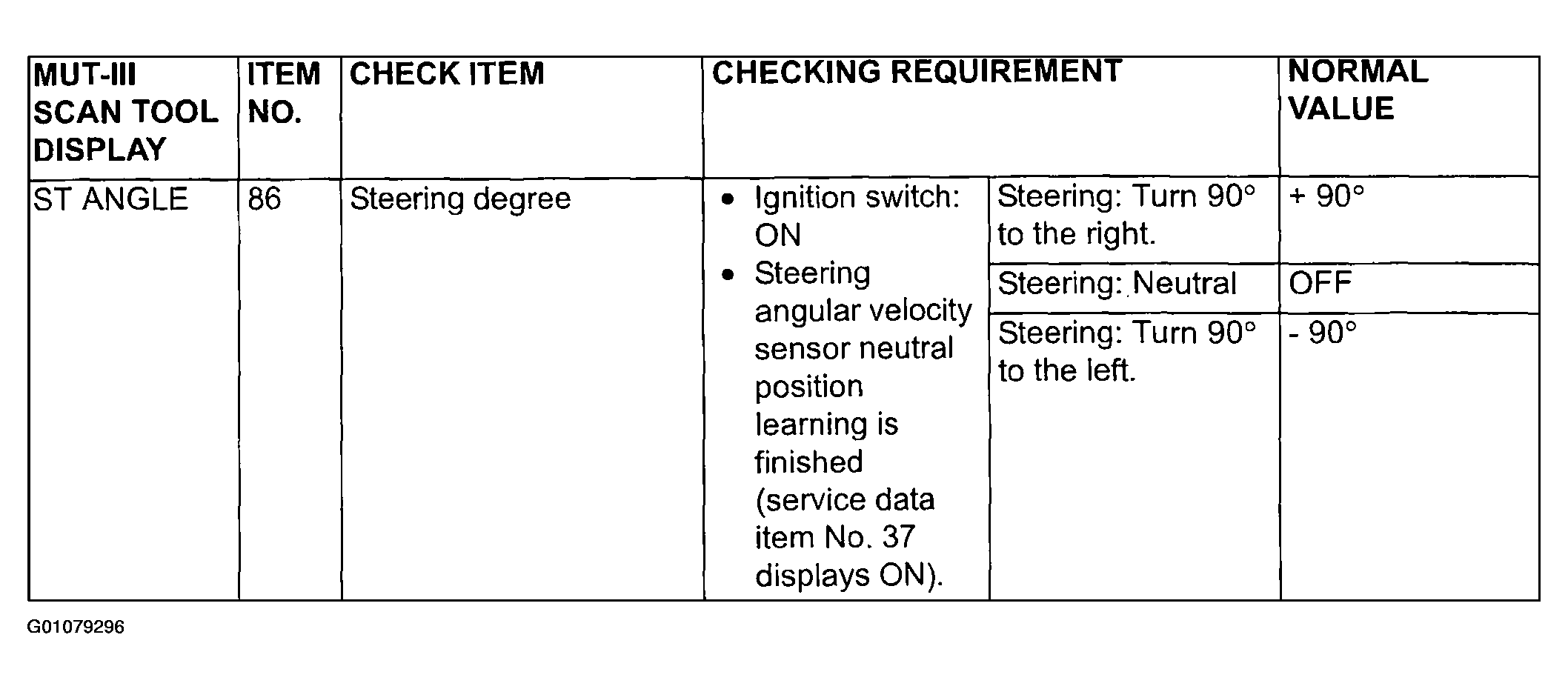

Data List Reference Table

The following items can be read by the scan tool from the ABS-ECU input data.

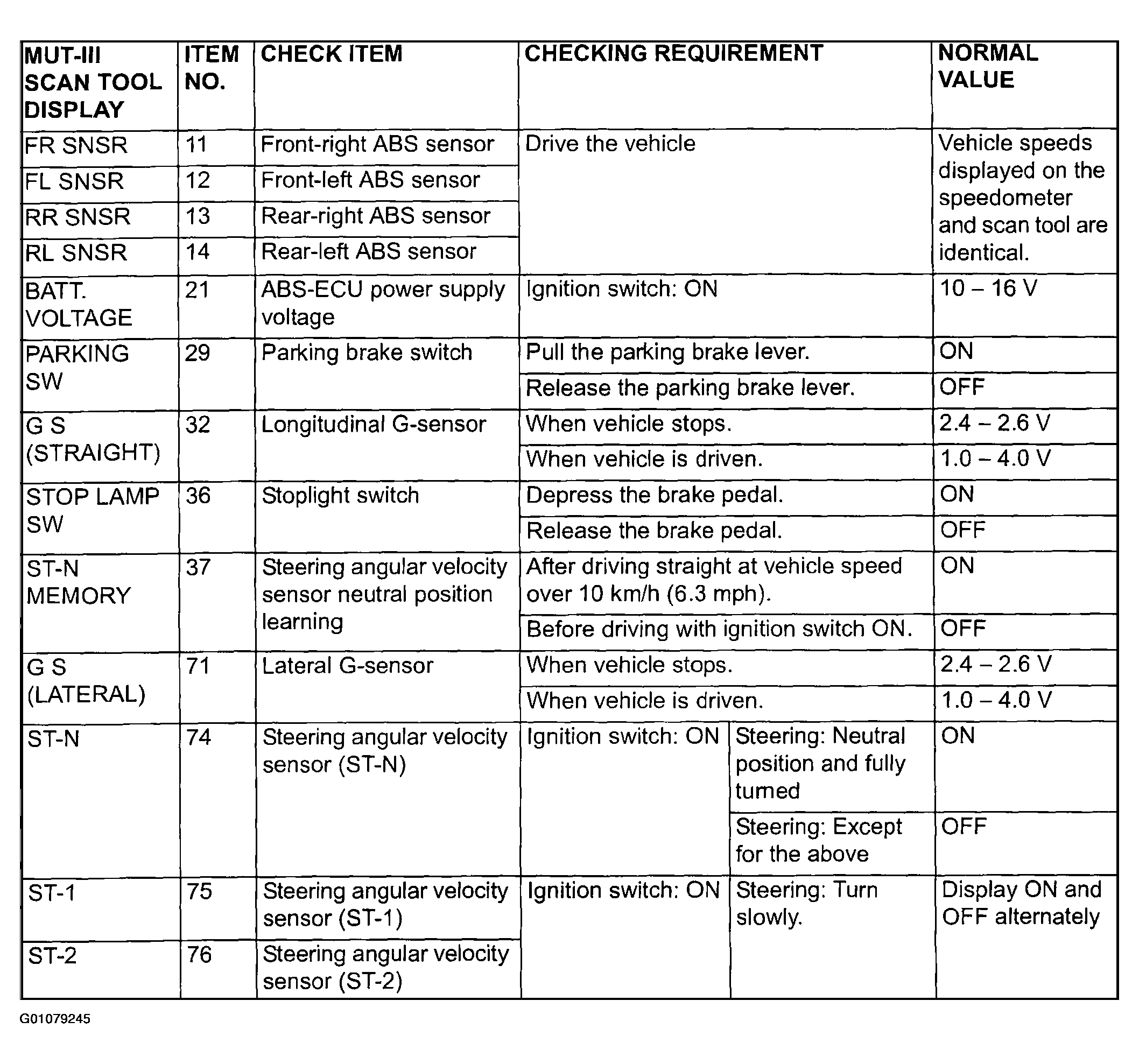

Fig 1: Data List Reference Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Anti-Lock Braking System (ABS) Diagnosis Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
