DTC 41, 42, 43, 44: Solenoid Valve inside Hydraulic Unit, DTC 52: Valve Relay Problem (Stays off), DTC 53: Motor Relay Problem (Stays off), DTC 55: Motor System (Seized Pump Motor): Notes

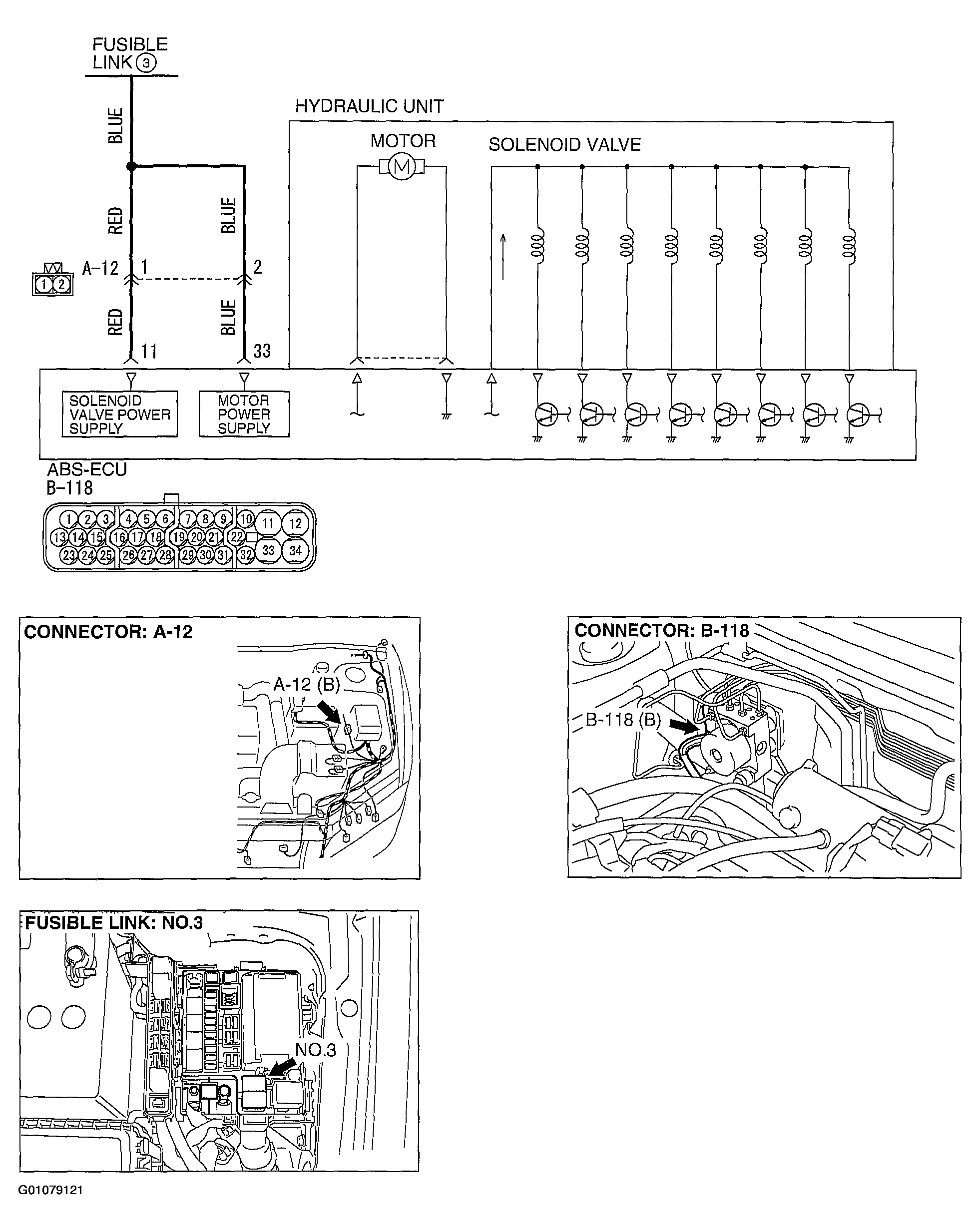

Fig 1: Solenoid Valve and Motor Power Supply Circuit Diagram And Connectors
G01079121Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
