INSPECTION PROCEDURE 5: In the Inspection with the Scan Tool Service Data, the Parking Brake Switch is not Turned ON or Turned OFF.: Notes

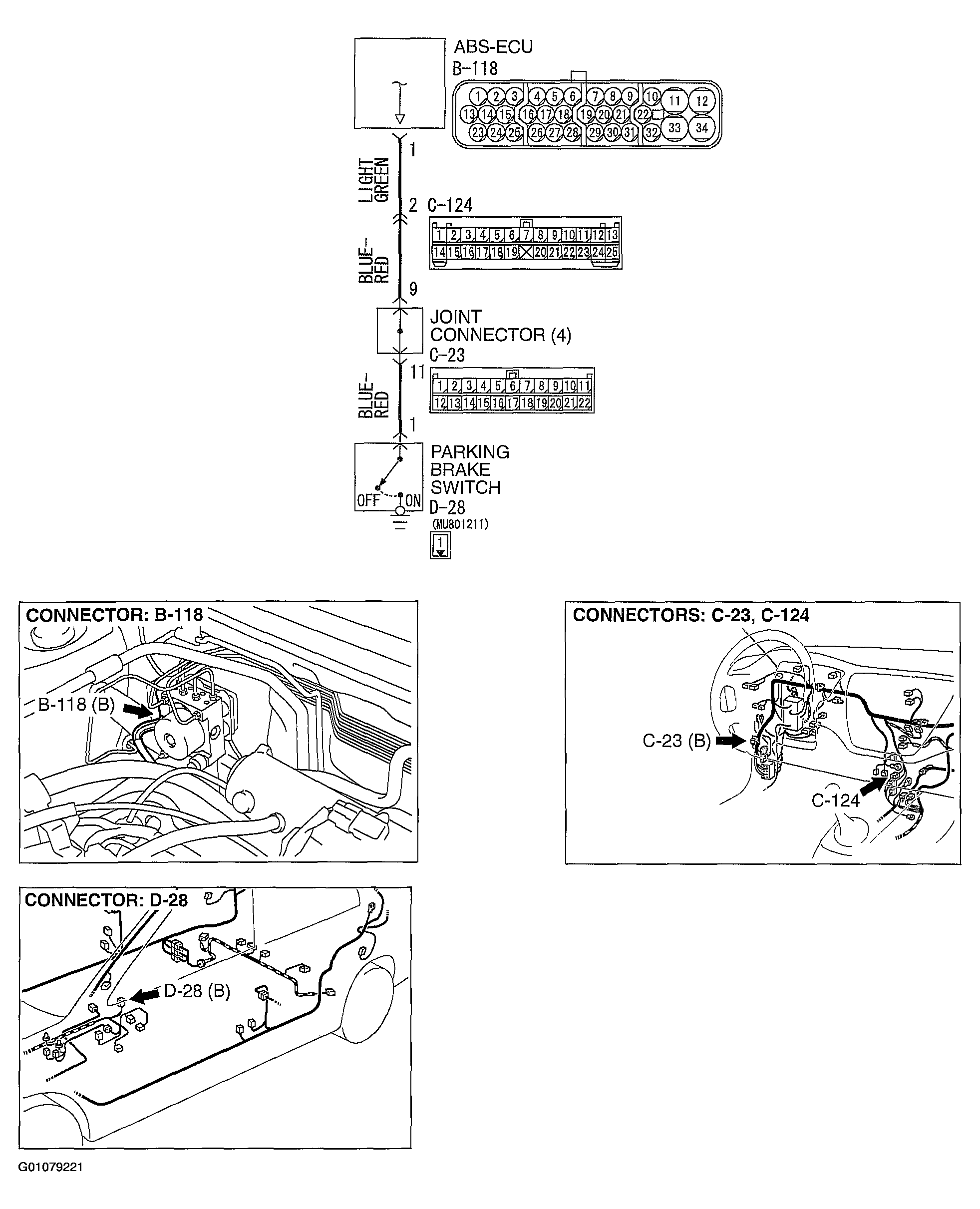

Fig 1: Parking Brake Switch Circuit Diagram And Connectors
G01079221Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
