Removal And Installation: Notes

NOTE: The ABS-ECU is integrated in the hydraulic unit.

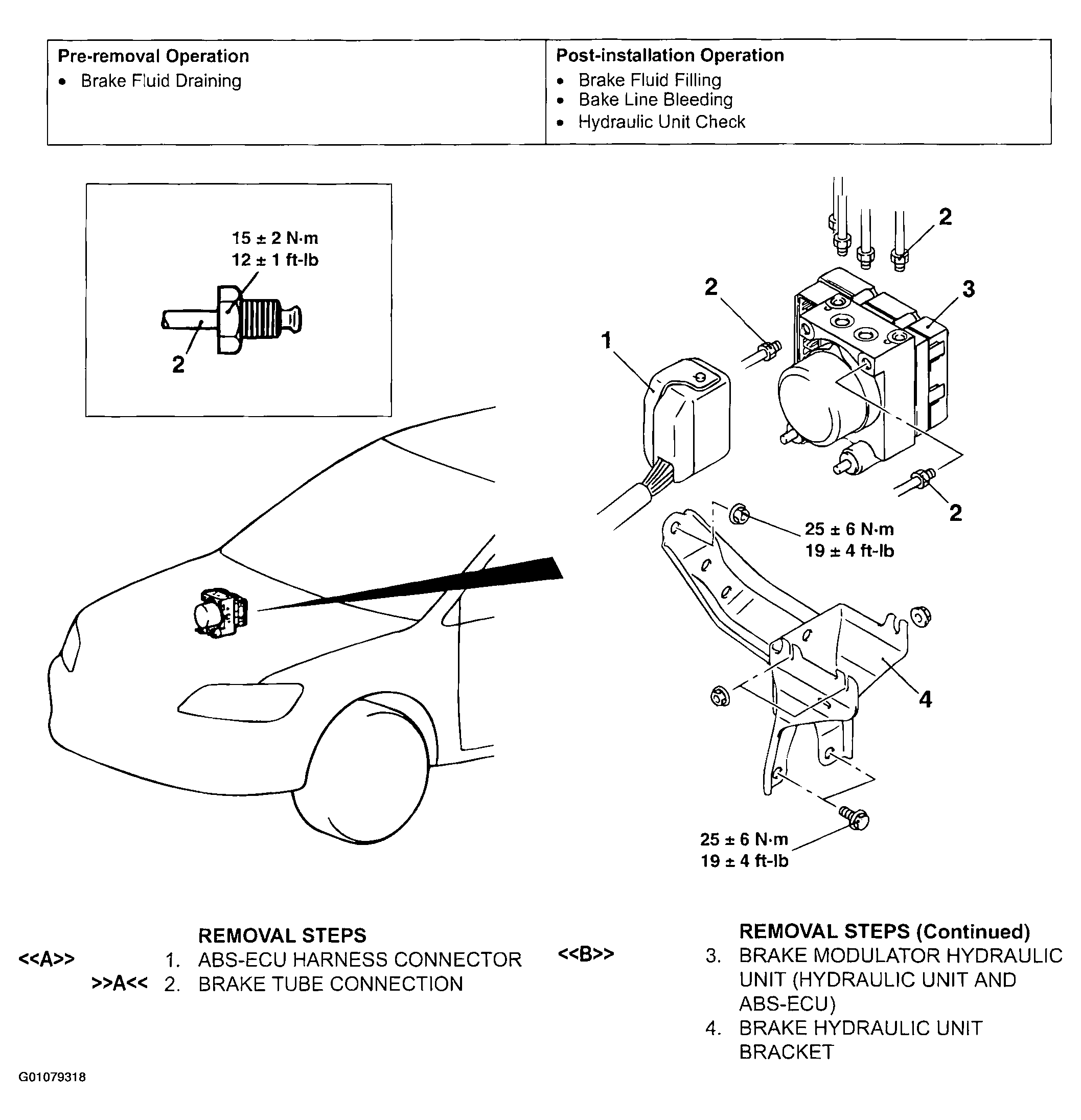

Fig 1: Removing And Installing ABS-ECU
G01079318Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
