Removal And Installation

CAUTION:
  • Before removing the steering wheel and air bag module assembly, be sure to refer to AIR BAG RESTRAINT SYSTEMS - EXCEPT SPORTBACK .
  • Make sure no oil adheres to the steering angular velocity sensor because photointerruptors are mounted on the steering angular velocity sensor.

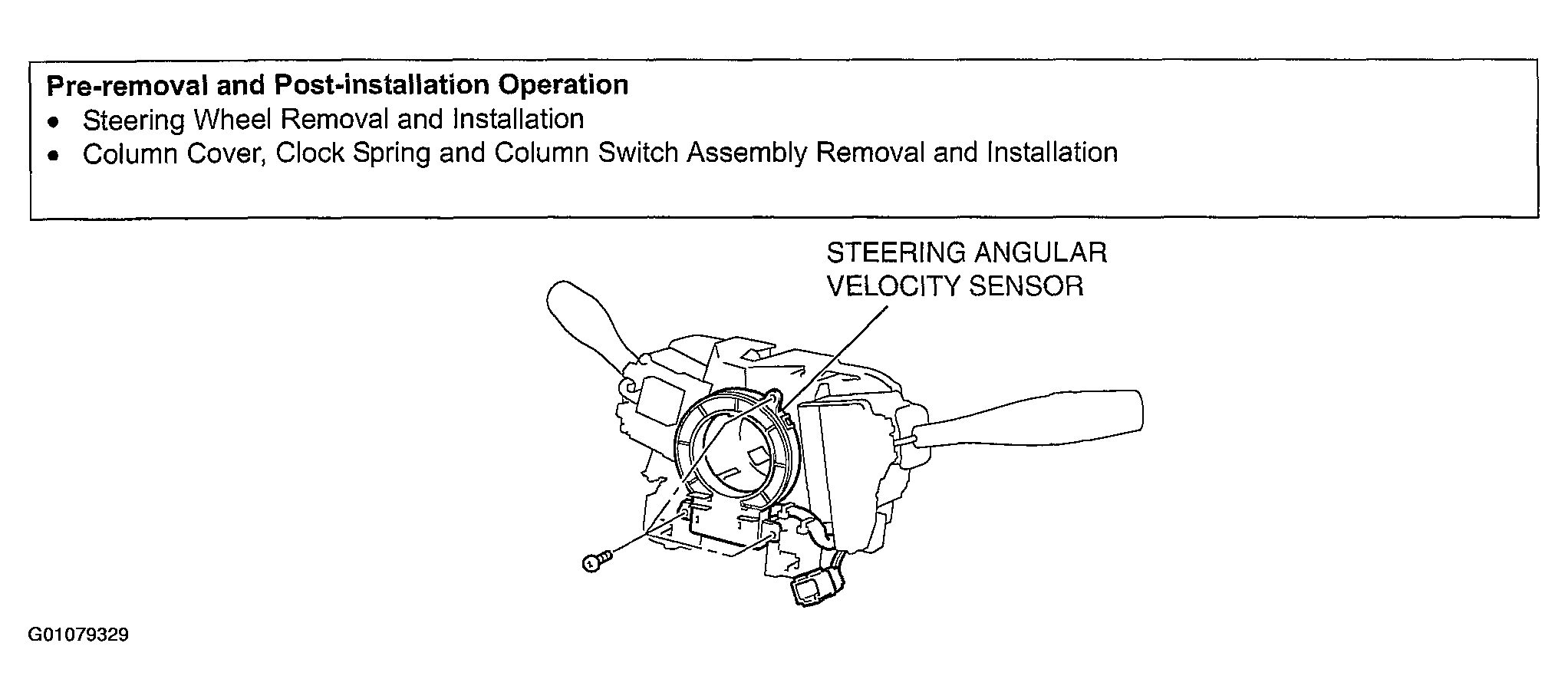

Fig 1: Removing & Installing Steering Angular Velocity Sensor
G01079329Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
