Special Tools

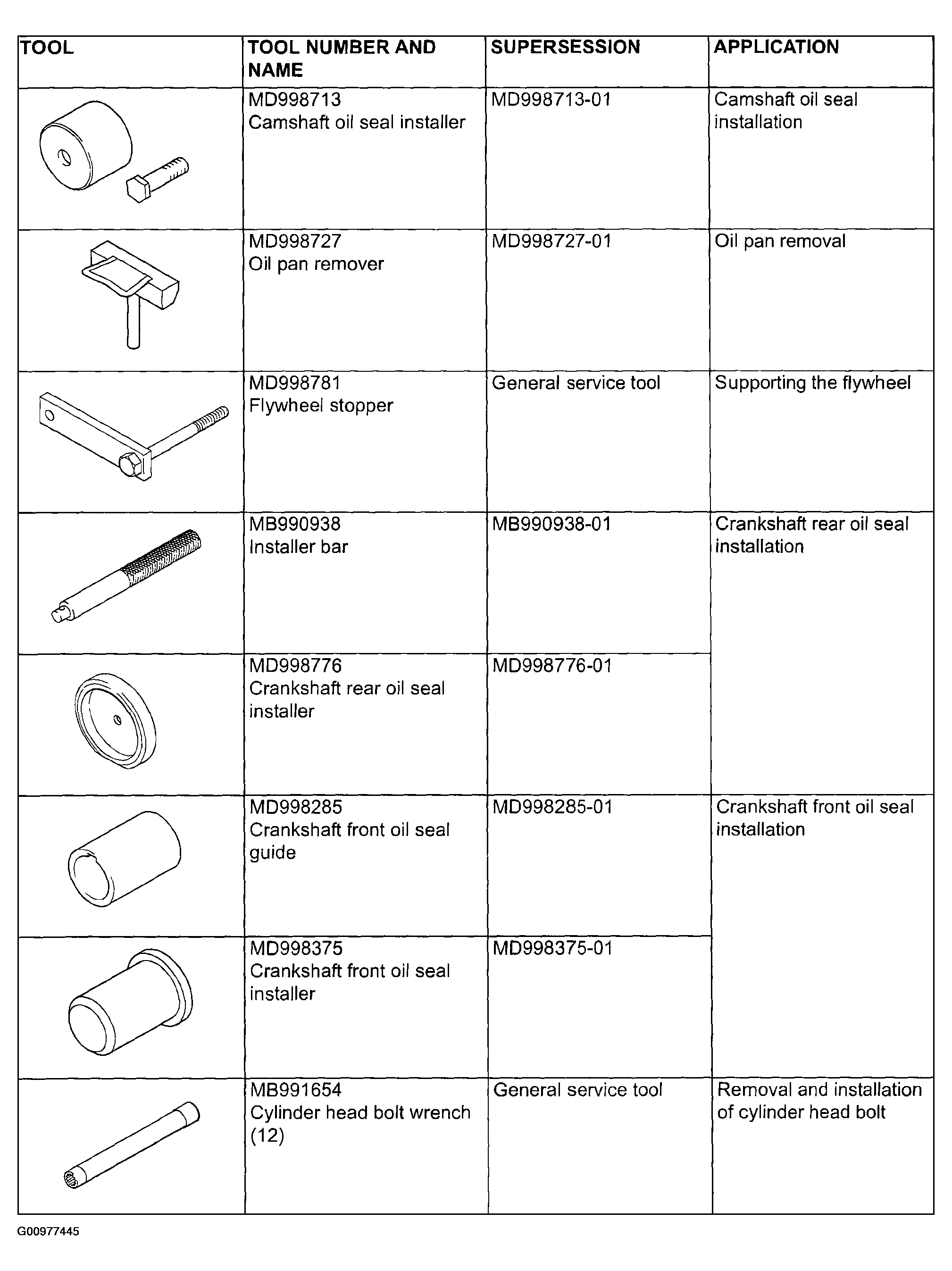

Fig 1: Identifying Engine Mechanical Special Tools (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

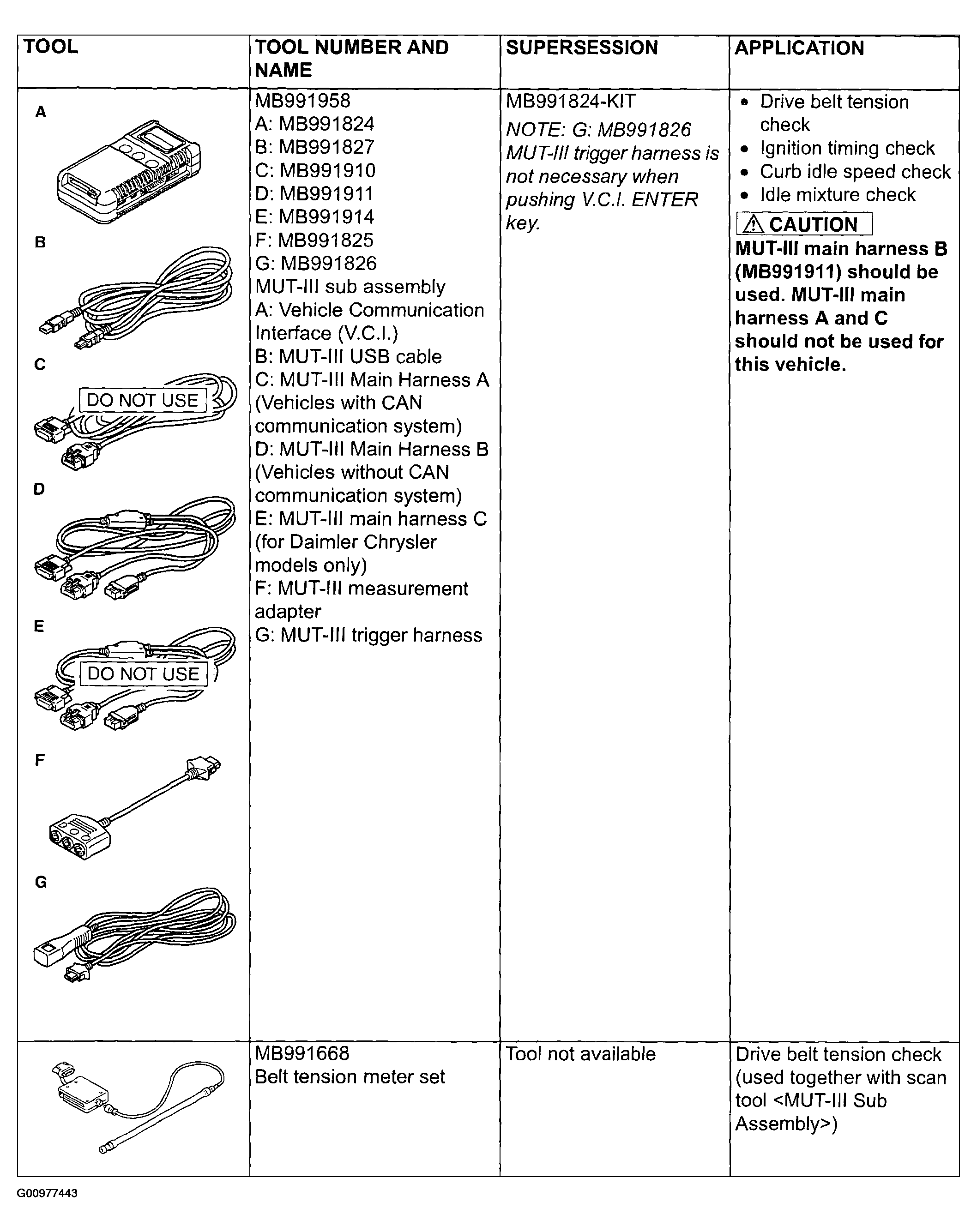

Fig 2: Identifying Engine Mechanical Special Tools (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

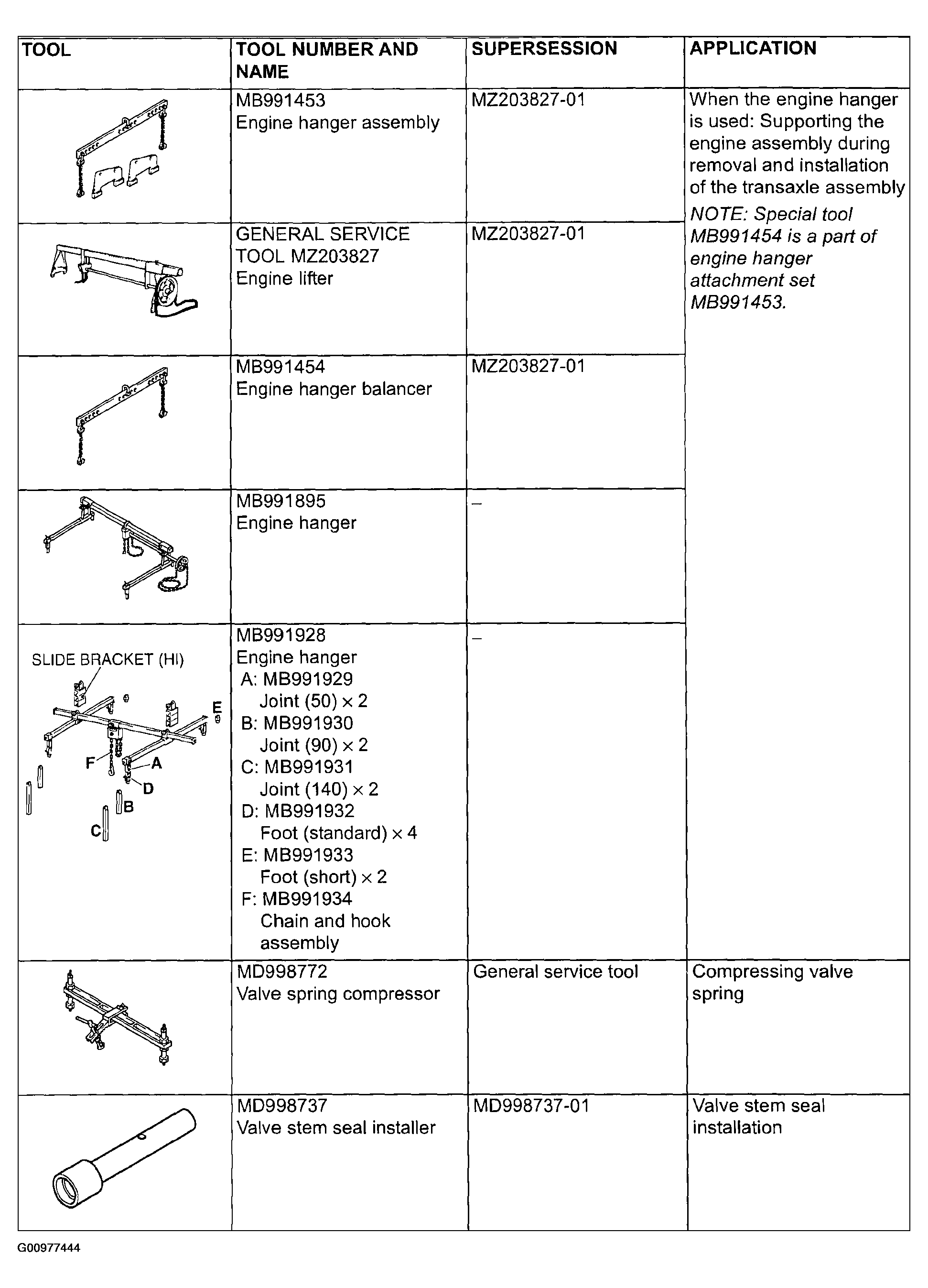

Fig 3: Identifying Engine Mechanical Special Tools (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

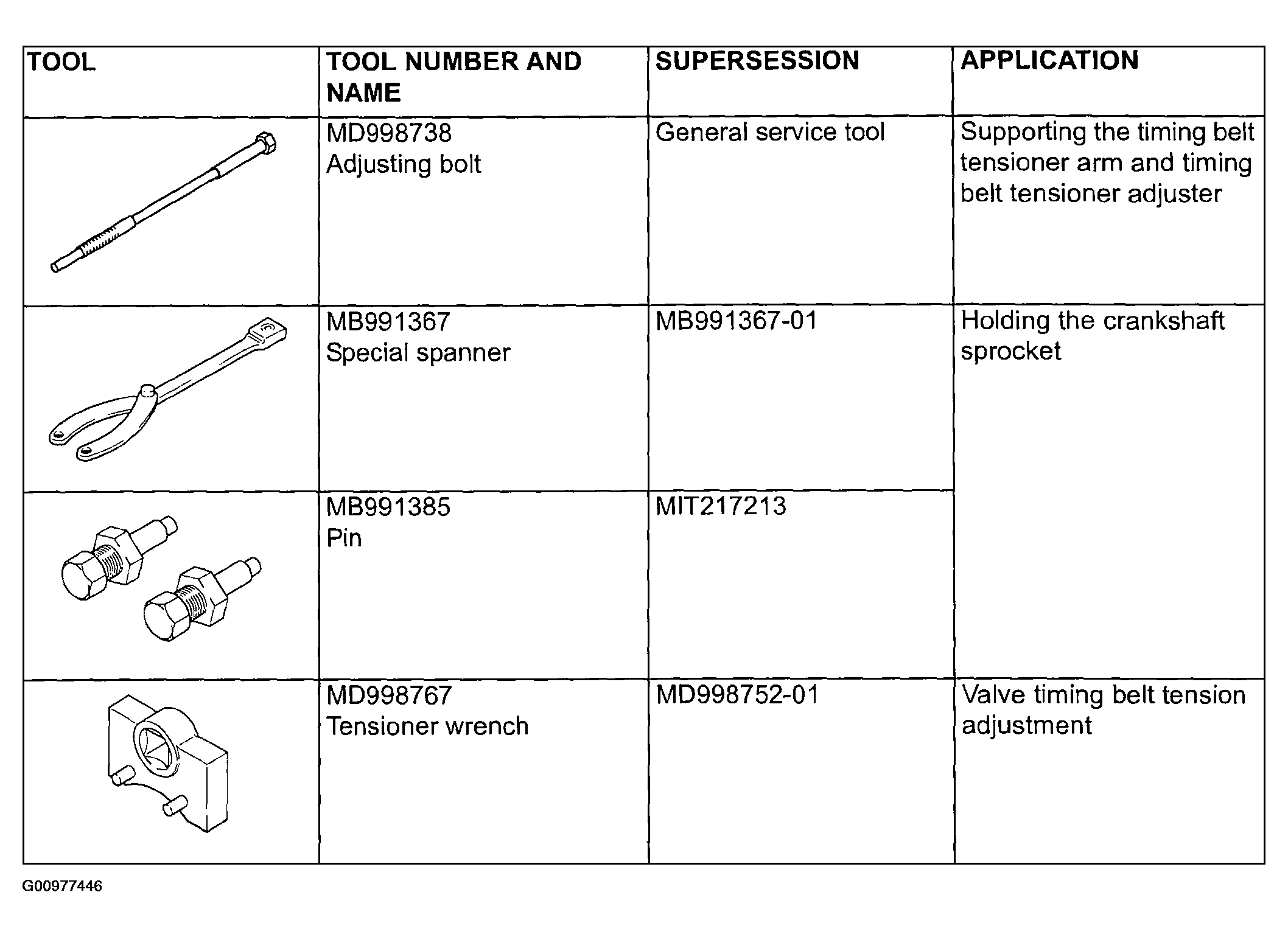

Fig 4: Identifying Engine Mechanical Special Tools (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
