Emission Control: Diagnosis

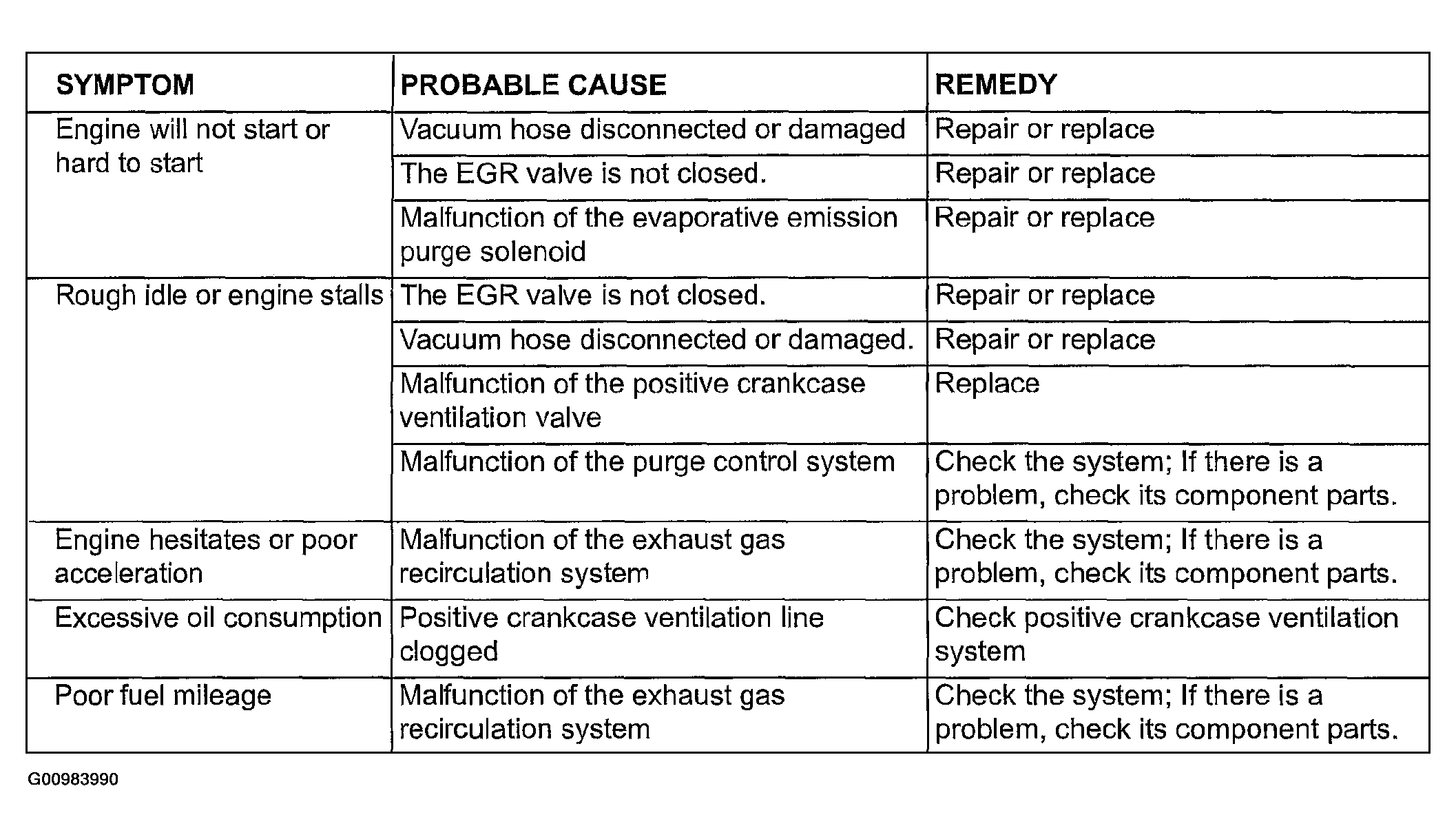

Fig 1: Identifying Emission Control Diagnosis Chart
G00983990Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
