<< B >> Fuel Pipe And Gauge Assembly/Fuel Pump Module Removal

CAUTION: When withdrawing the fuel pipe and gauge assembly and fuel pump module from the fuel tank, be careful not damage the sensor unit and the float.

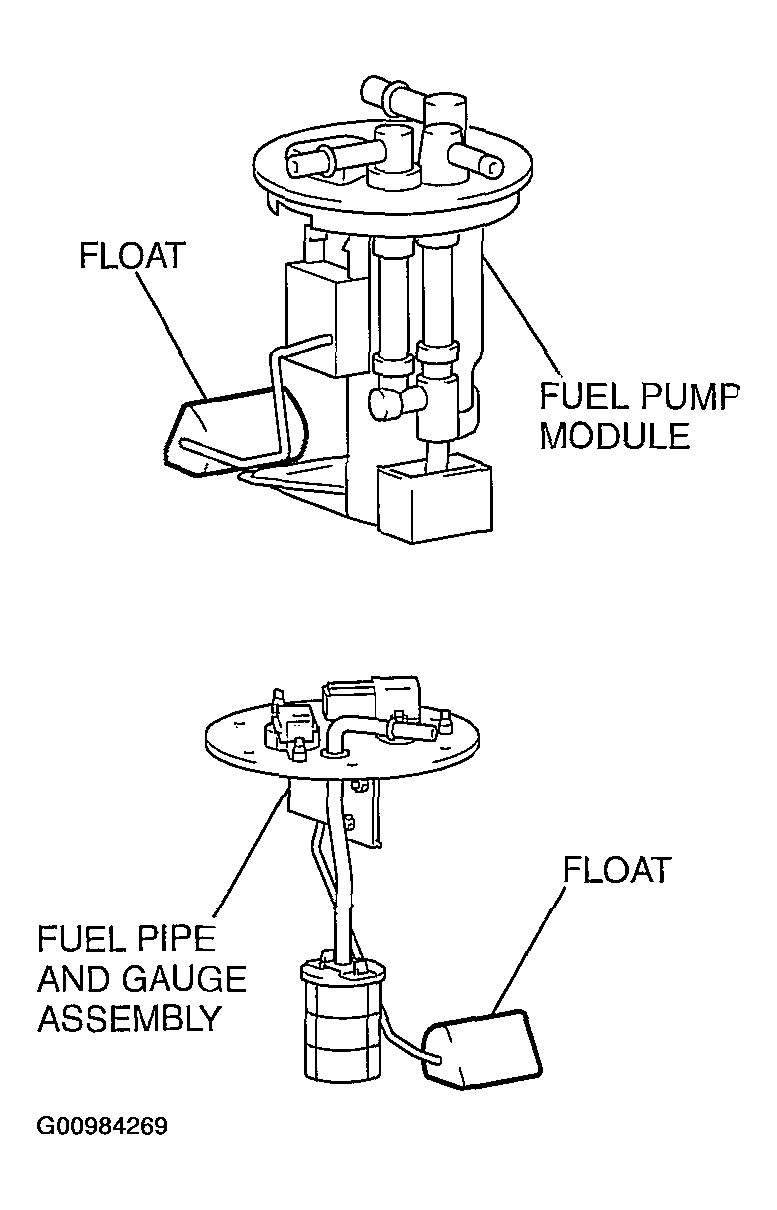

Fig 1: View Of Fuel Pump Module And Fuel Pipe And Gauge Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
