<<C>> Transaxle Assembly Removal

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

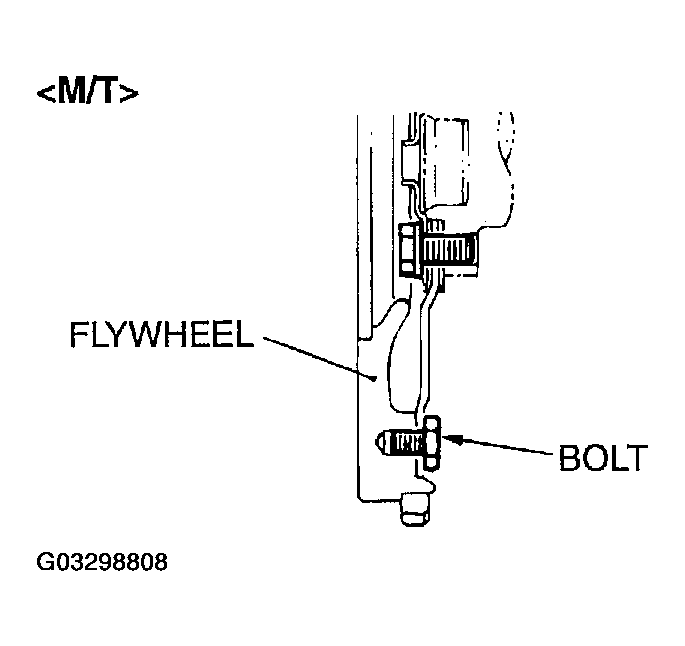

CAUTION: Do not remove the flywheel mounting bolt shown by the arrow. If this bolt is removed, the flywheel will become out of balance and damaged.

Fig 1: Locating Flywheel Mounting Bolt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

<Engine lifter MZ20783827 is used>
Remove the transaxle assembly.

<M/T>: Refer to TRANSAXLE ASSEMBLY .

<A/T>: Refer to TRANSAXLE ASSEMBLY .
<Engine hanger MB991895 or MB991928 is used>

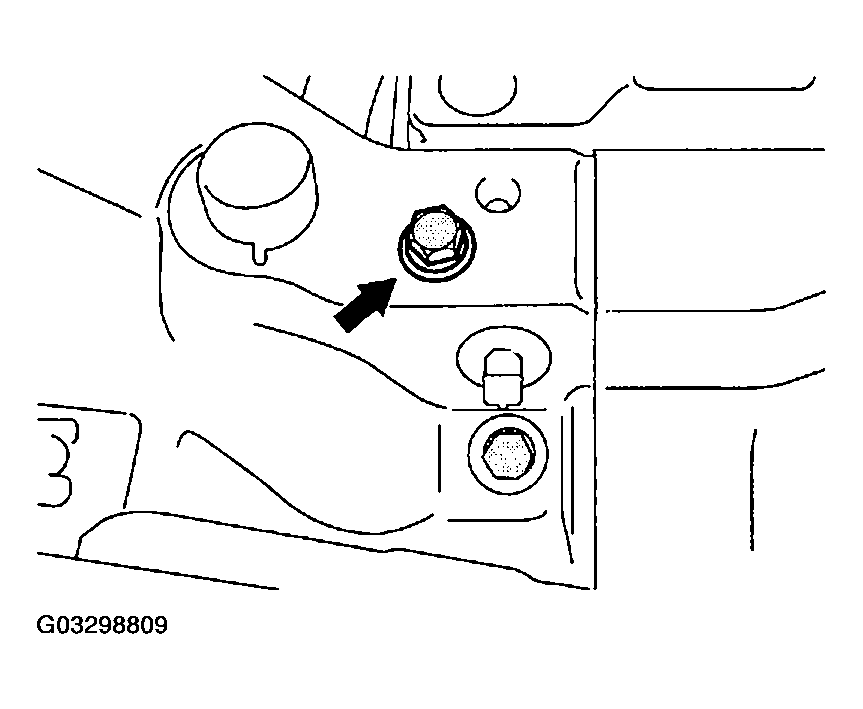

1. Loosely fit the two radiator support upper insulator mounting bolts to the vehicle body.

  Fig 2: Locating Radiator Support Upper Insulator Mounting Bolt
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Remove the transaxle assembly.
  <M/T>: Refer to TRANSAXLE ASSEMBLY .

  <A/T>: Refer to TRANSAXLE ASSEMBLY .
