Compression Pressure Check

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before inspection, check that the engine oil, starter and battery are normal. Also, set the vehicle in the following condition:
    • Engine coolant temperature: 80 - 95°C (176 - 203°F)
    • Lights and all accessories: OFF
    • Transaxle: Neutral (P range on vehicles with A/T)
  2. Disconnect the spark plug cables.
  3. Remove all of the spark plugs.
  4. Disconnect the crankshaft position sensor connector.

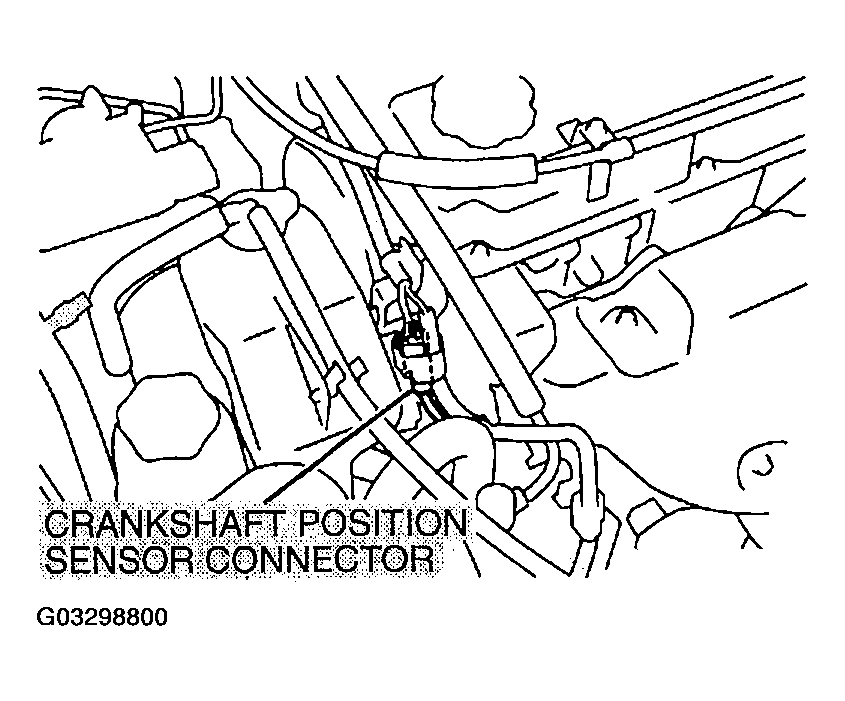

    Fig 1: Locating Crankshaft Position Sensor Connector
    G03298800Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NOTE: Doing this will prevent the engine control module from carrying out ignition and fuel injection.
    WARNING: Keep your distance from the spark plug hole when cranking. Oil, fuel, etc., may spray out from the spark plug hole and may cause serious injury.
  5. Cover the spark plug hole with a shop towel etc., during cranking. After the engine has been cranked, check for foreign material adhering to the shop towel.
  6. Set compression gauge to one of the spark plug holes.

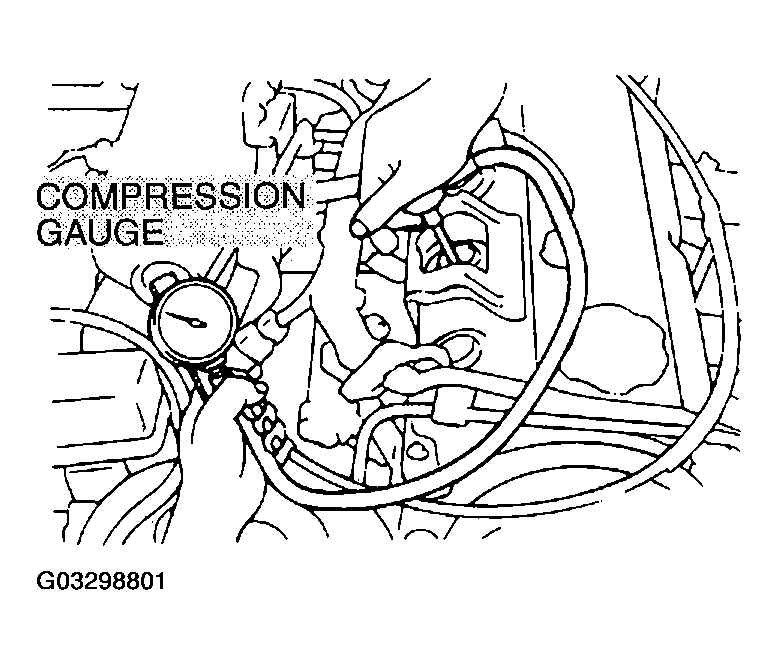

    Fig 2: Connecting Compression Gauge
    G03298801Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  7. Crank the engine with the throttle valve fully open and measure the compression pressure.

    Standard value (at engine speed of 250 - 400 r/min): 1,275 kPa (185 psi)

    Minimum limit (at engine speed of 250 - 400 r/min): 959 kPa (139 psi)

  8. Measure the compression pressure for all the cylinders, and check that the pressure differences of the cylinders are below the limit.

    Limit: 98 kPa (14 psi)

  9. If there is a cylinder with compression or a compression difference that is outside the limit, pour a small amount of engine oil through the spark plug hole, and repeat the operations in steps  6 to  8.
    1. If the compression increases after oil is added, the cause of the malfunction is a worn or damaged piston ring and/or cylinder inner surface.
    2. If the compression does not rise after oil is added, the cause is a burnt or defective valve seat, or pressure is leaking from the gasket.
  10. Connect the crankshaft position sensor connector.
  11. Install the spark plugs and spark plug cables.
  12. Use the scan tool to erase the diagnostic trouble codes.
    NOTE: This will erase the diagnostic trouble code resulting from the crankshaft position sensor connector being disconnected.
