When Using A Auto-Cruise Control Indicator Light

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to the "ON" position while holding the auto-cruise control switch in the "SET" position (down). Then, within one second, more the auto-cruise control switch up to the "RES" position.

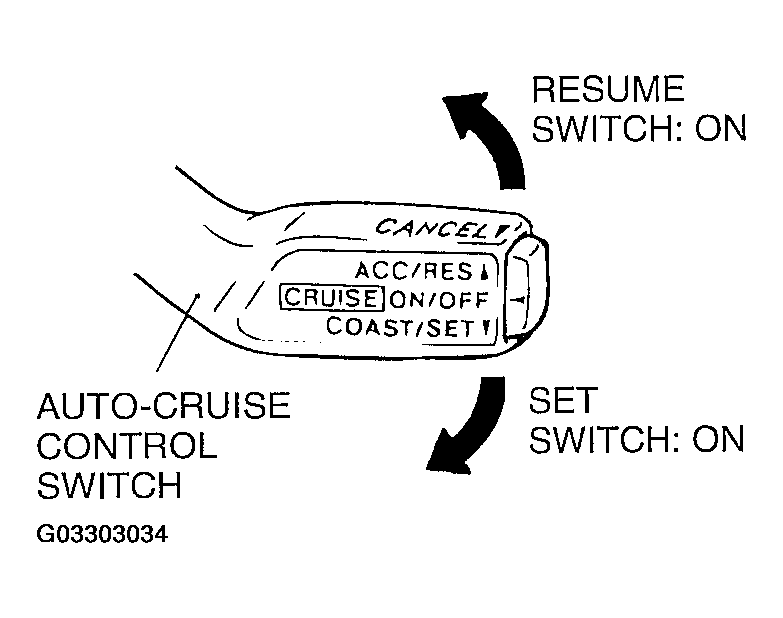

    Fig 1: Identifying Auto-Cruise Control Switch "Set" Position & "Res" Position
    G03303034Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Read a diagnostic trouble code by observing the flash display pattern of the auto-cruise control indicator light in the combination meter.
