How To Read Data List

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tool:

MB991958: Scan Tool (MUT-III sub assembly)
MB991824: Vehicle Communication Interface
MB991827: MUT-III USB Cable
MB991911: MUT-III Main Harness B

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

Connect scan tool MB991958 to the data link connector.

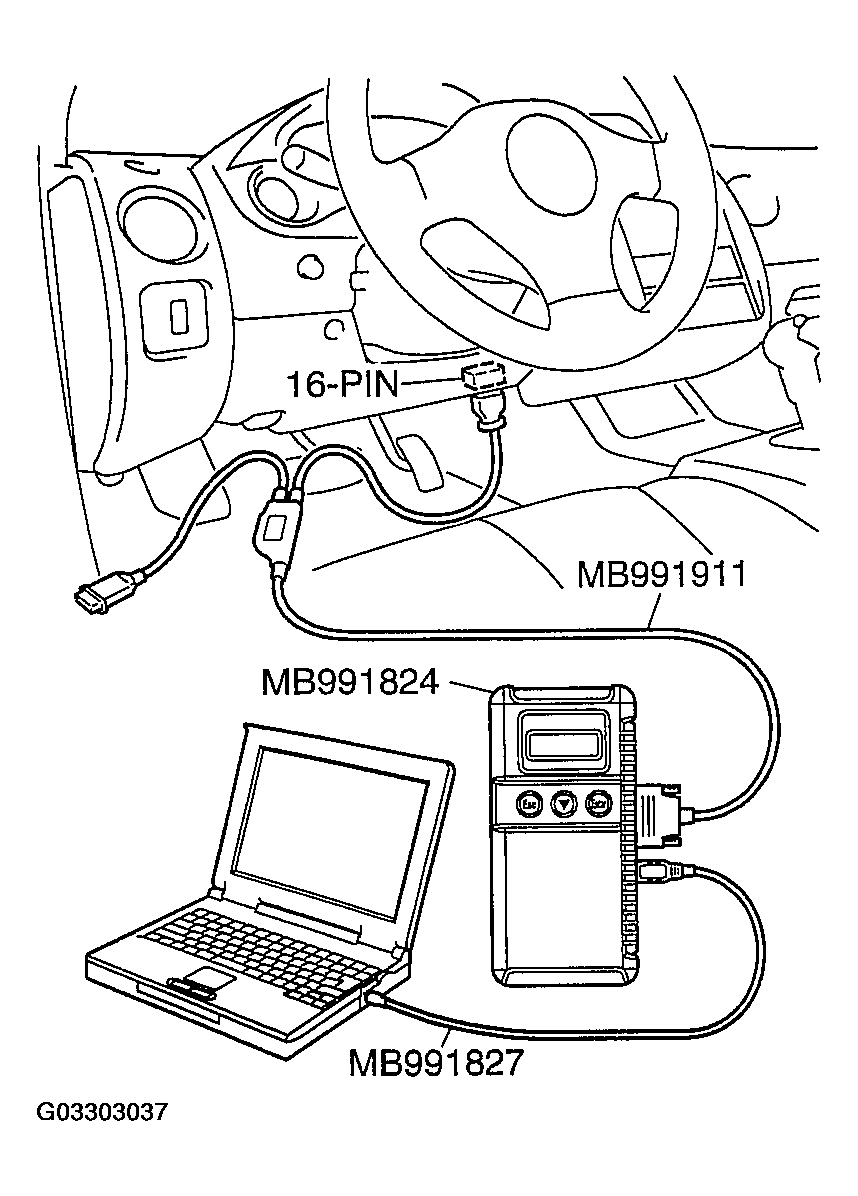

Fig 1: Connecting Scan Tool To Data Link Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Turn the ignition switch to the "ON" position.
Carry out inspection by means of the data list. If there is an abnormality, check and repair the chassis harnesses and components. (Refer to DATA LIST REFERENCE TABLE ).
Re-check using scan tool MB991958 and check to be sure that the abnormal input and output have returned to normal because of the repairs.
Erase the diagnostic trouble codes.
Turn the ignition switch to the "LOCK" (OFF) position.
Disconnect scan tool MB991958.
Start the engine again and do a test drive to confirm that the problem is eliminated.
