DTC 14: Stoplight Switch System: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

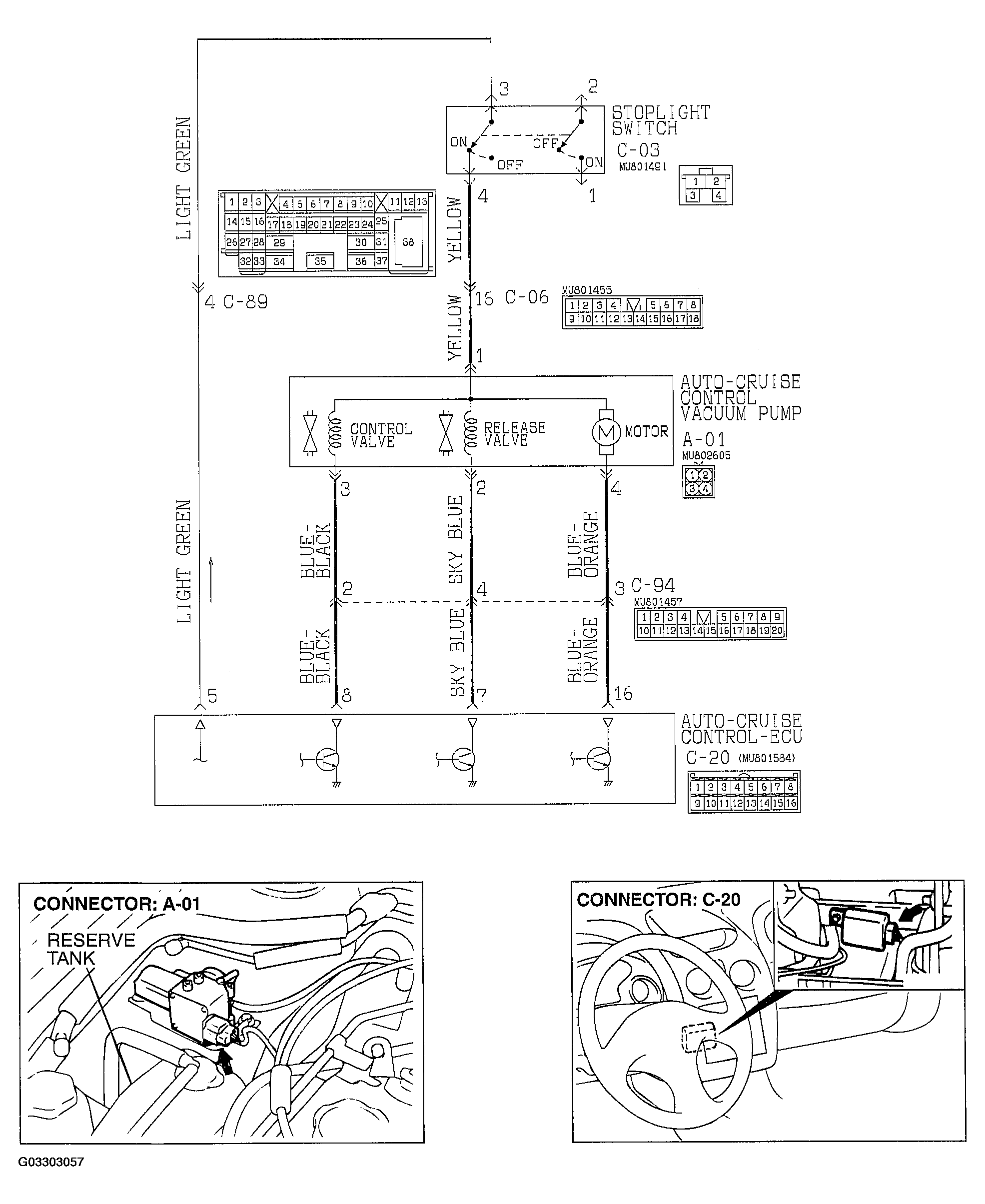

Fig 1: Stoplight Switch System Circuit (1 Of 2)
G03303057Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

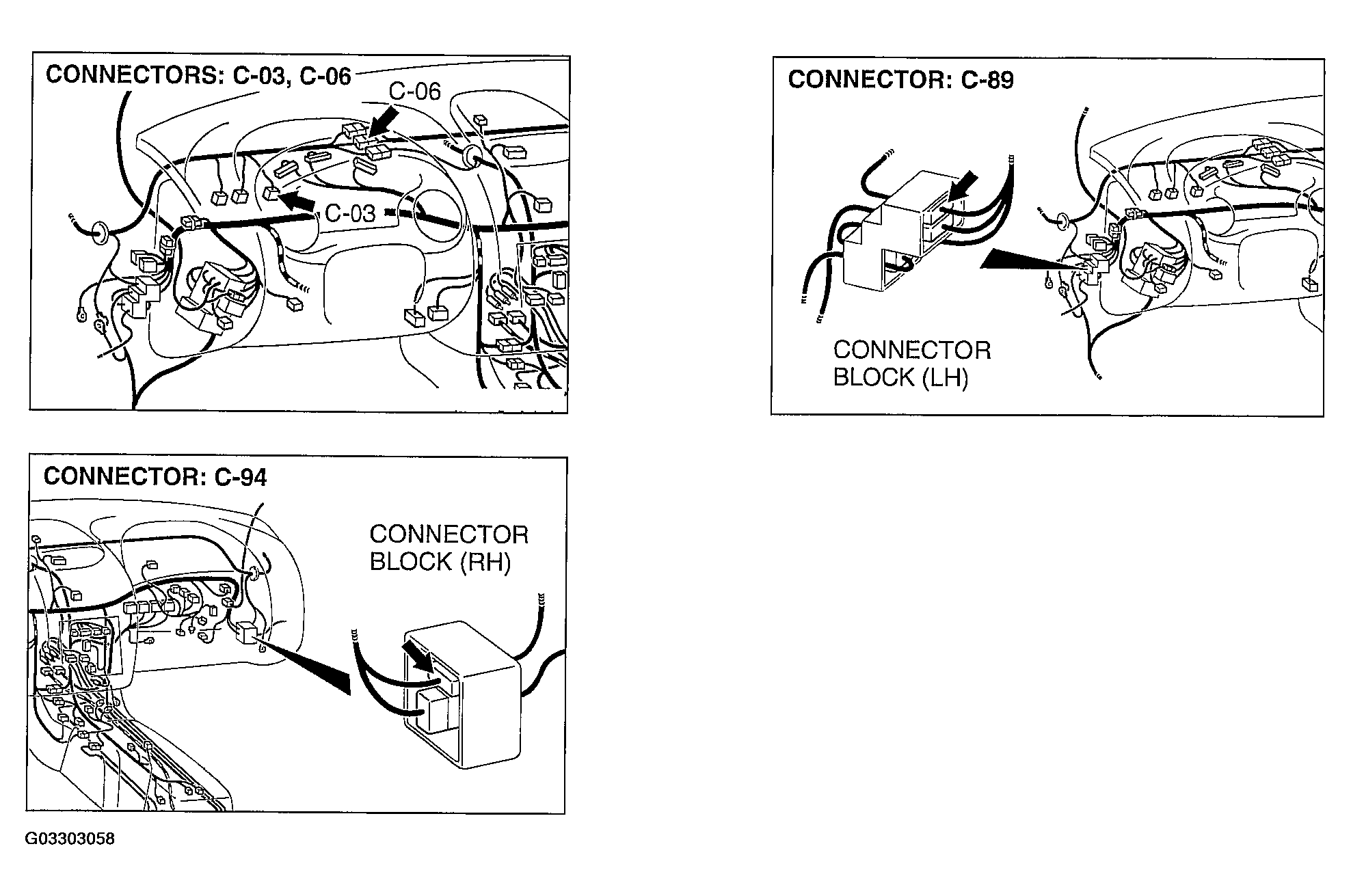

Fig 2: Stoplight Switch System Circuit (2 Of 2)
G03303058Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
