INSPECTION PROCEDURE 2: When the Brake Pedal is Depressed, Auto-cruise Control is not Cancelled.

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

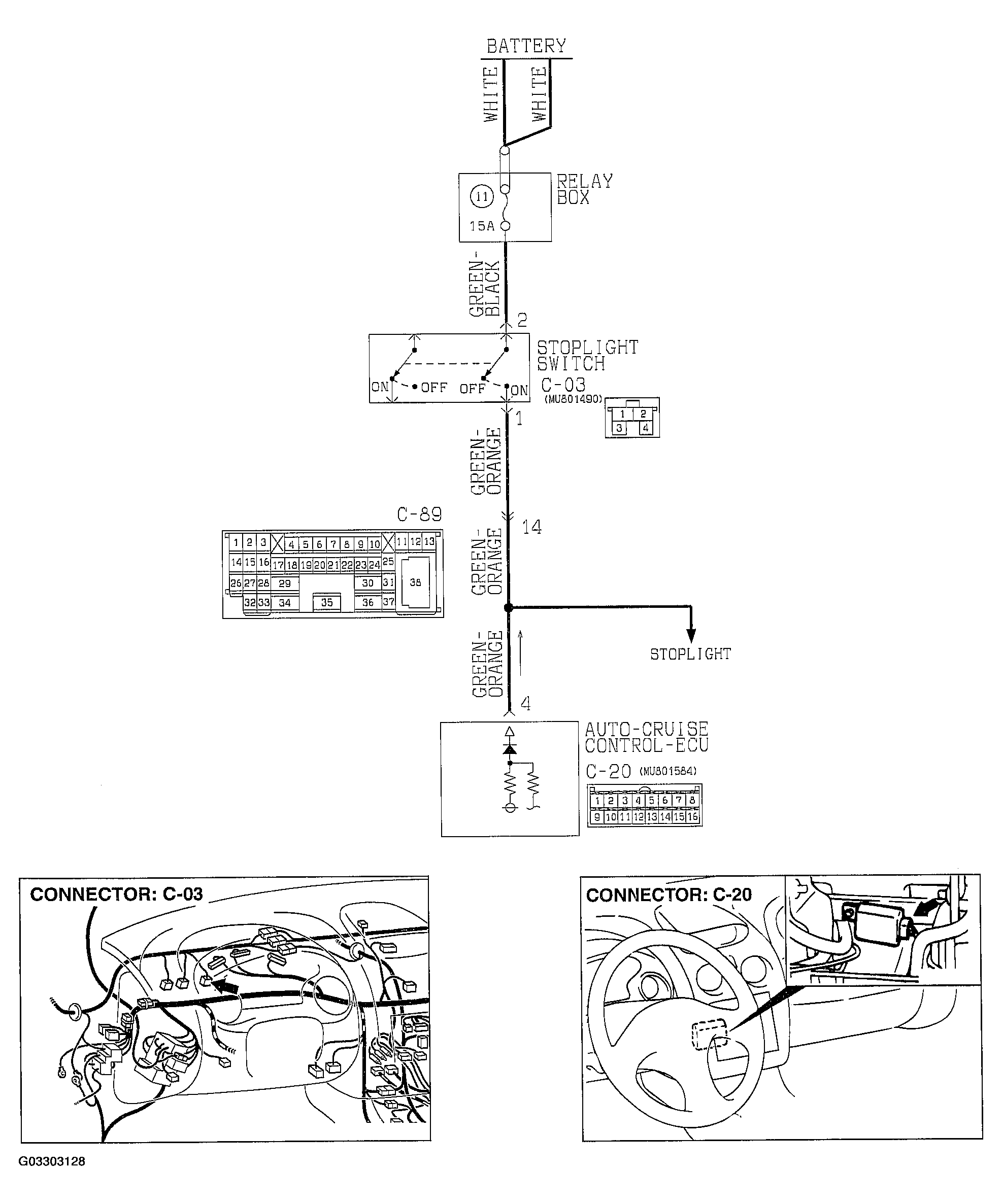

Fig 1: Stop Light Switch Circuit (1 Of 2)
G03303128Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

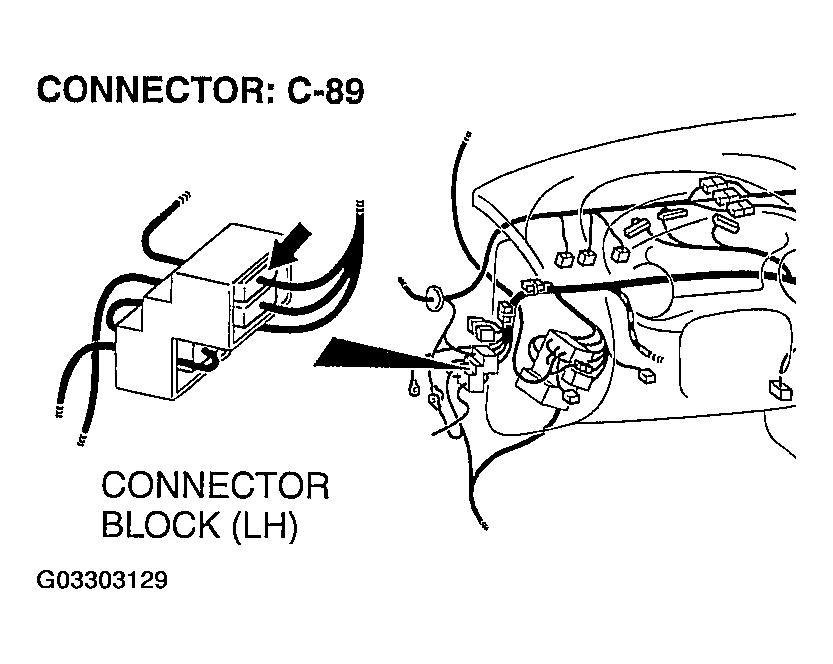

Fig 2: Stop Light Switch Circuit (2 Of 2)
G03303129Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
