INSPECTION PROCEDURE 1: Communication with Scan Tool MB991958 is not Possible (Communication with the Auto-cruise Control-ECU Only is not Possible.): Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

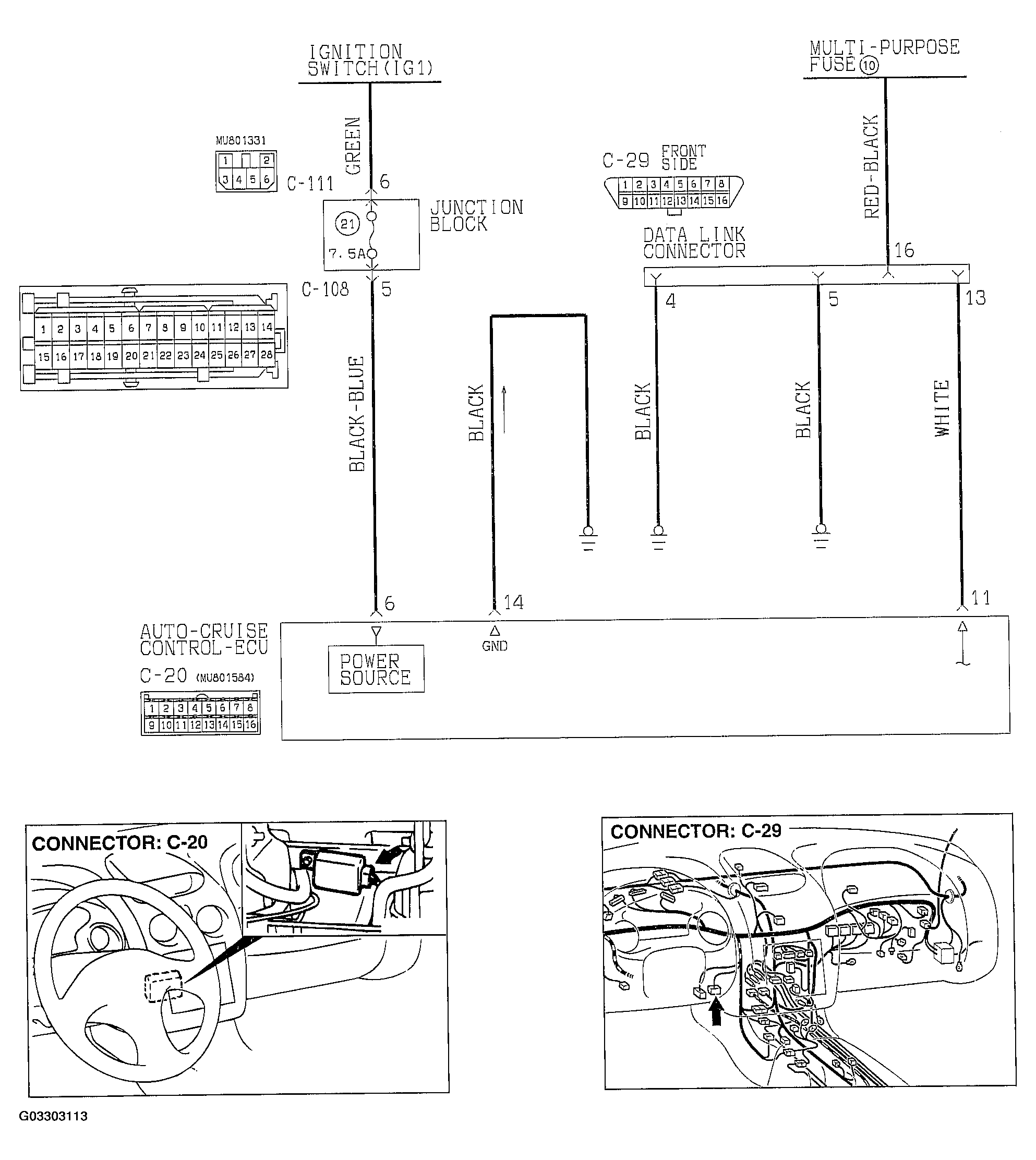

Fig 1: Auto-cruise Control-ECU Supply, Ground and Data Link Circuit (1 Of 2)
G03303113Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

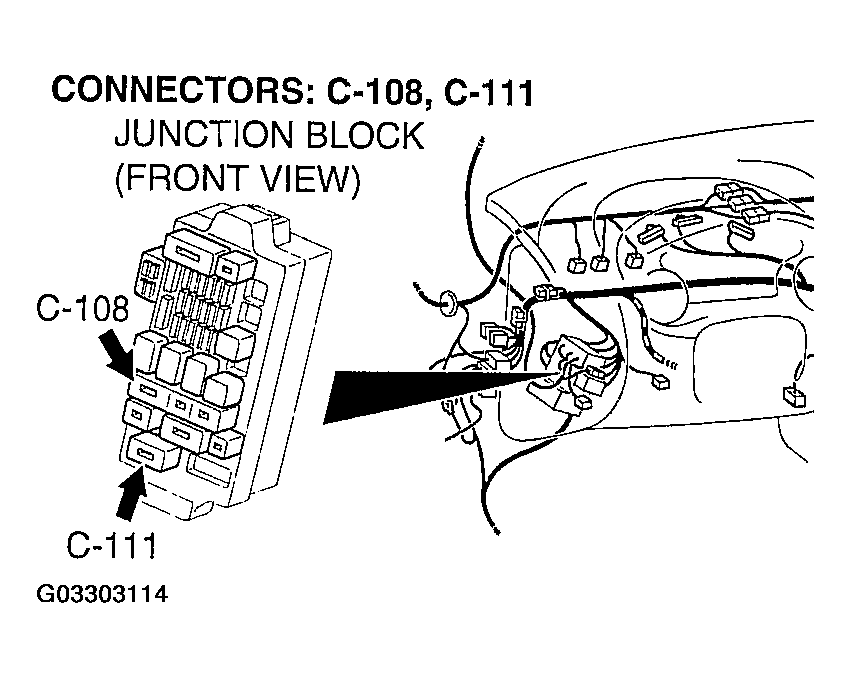

Fig 2: Auto-cruise Control-ECU Supply, Ground and Data Link Circuit (2 Of 2)
G03303114Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
