Clutch Pedal Position Switch

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch.

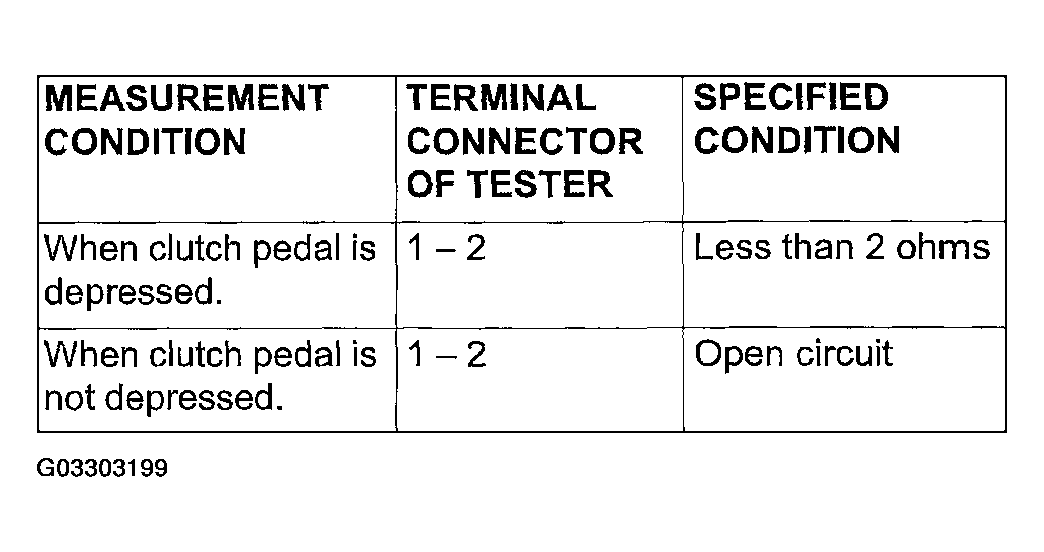

Fig 1: Continuity Table
G03303199Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

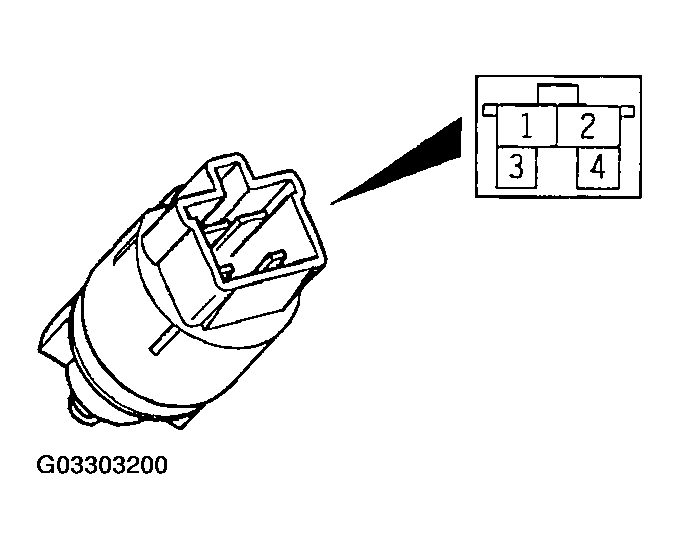

Fig 2: Identifying Clutch Pedal Position Switch Terminals
G03303200Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
