Wheel Bearing Breakaway Torque Check

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

Install the special tools MB990998 and MB990326 to the front hub assembly and tighten the nut to the specified torque.
Tightening torque: 226 plus/minus 29 N-m (167 plus/minus 21 ft-lb)

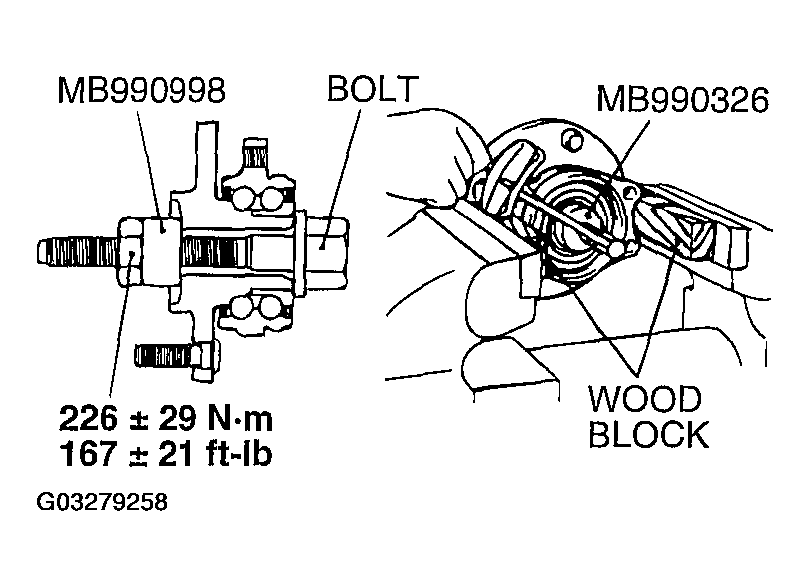

Fig 1: Checking Wheel Bearing Breakaway Torque
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Measure the wheel bearing breakaway torque with special tool MB990326.
Limit: 1.0 N-m (9 in-lb) or less
Wheel bearing breakaway torque must be under the limit value and there should be no roughness when rotating the hub.
