Wheel Bearing End Play Check
WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

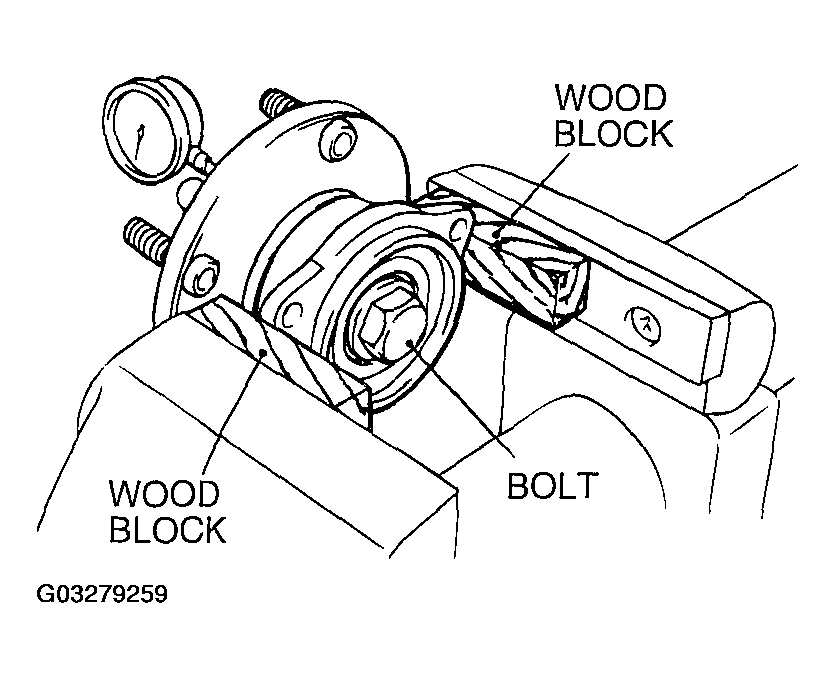

- Install the special tool MB990998 to the front hub assembly and tighten the nut to the specified torque.
Tightening torque: 226 plus/minus 29 N-m (167 plus/minus 21 ft-lb)
- Measure the play in the hub axial direction.
Limit: 0.05 mm (0.002 inch)
- If the play exceeds the limit, replace the front hub assembly.
