Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

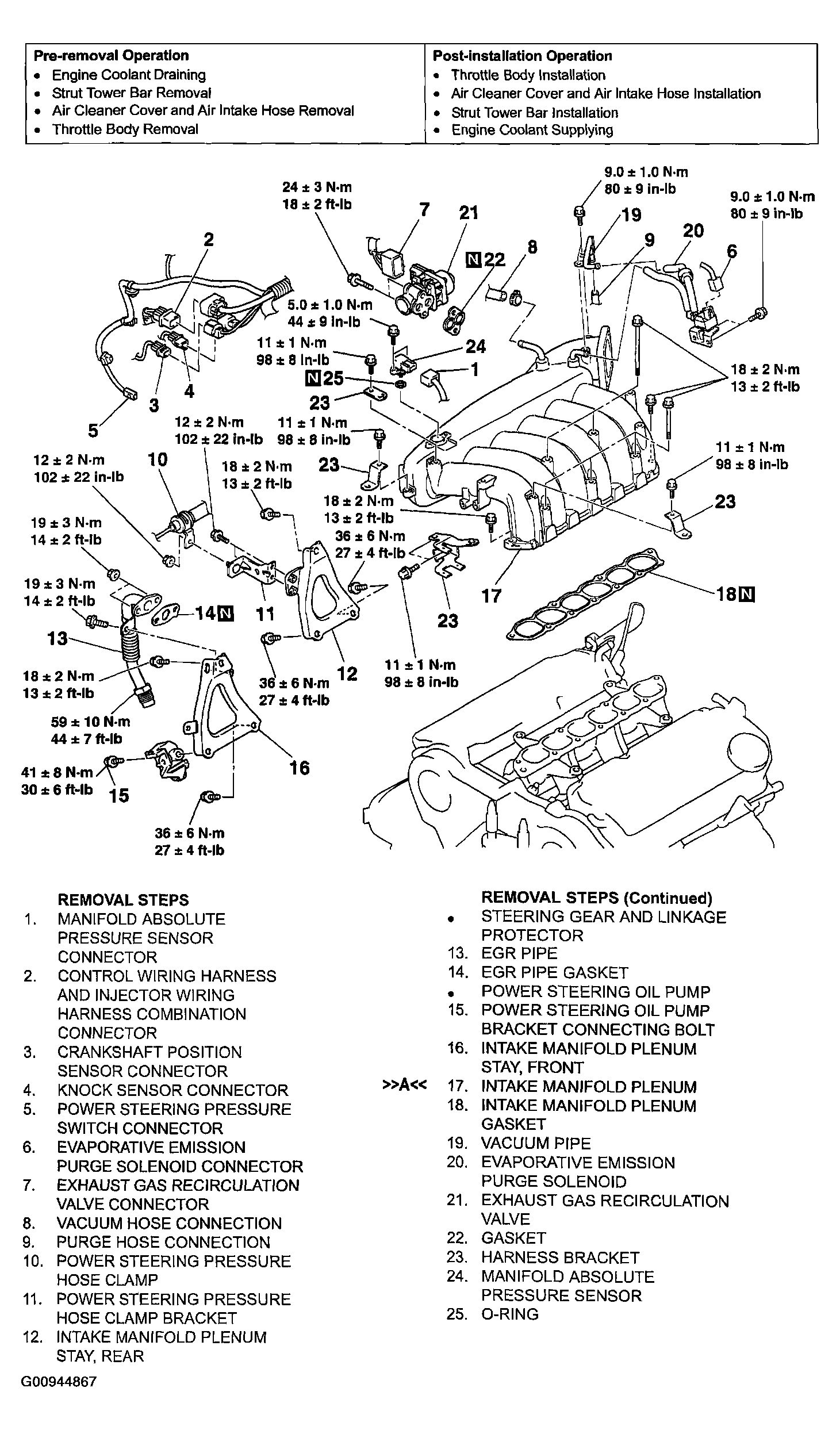

Fig 1: Removing And Installing Intake Manifold Plenum Components
G00944867Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
