Section 39 (Ignition System)
>>
Specifications
>>
Service Specifications
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Service Specifications
WARNING:
This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Service Specifications Chart (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

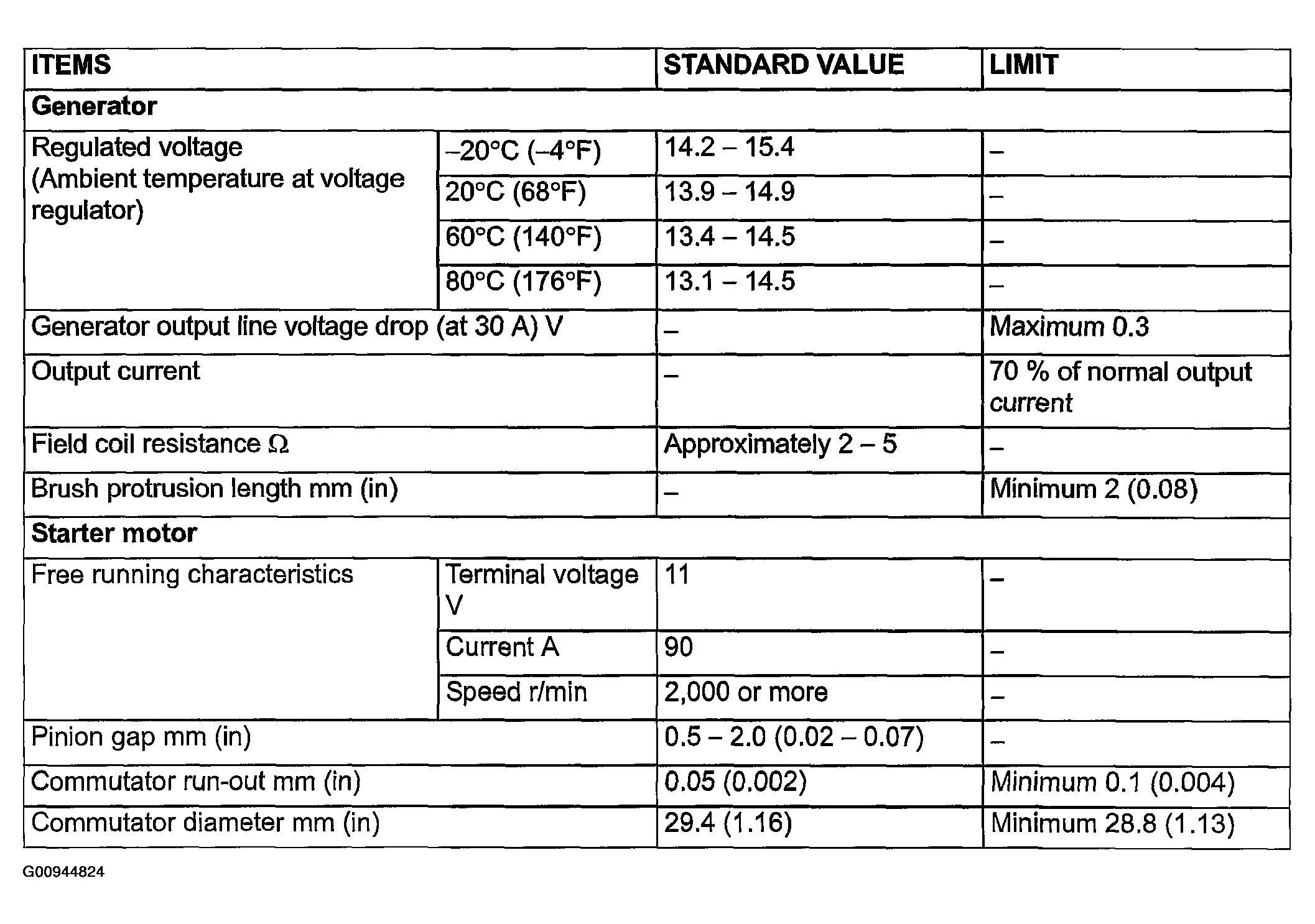

Fig 2: Service Specifications Chart (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
